Dear all,

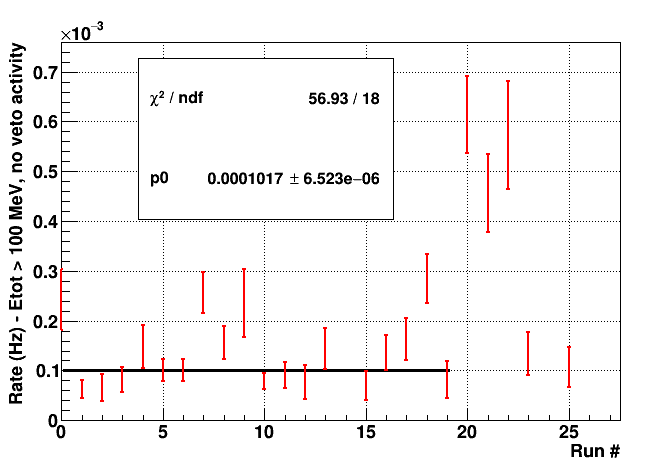

as requested, here is the data that I used to show the cosmics muon rate plot today.	I report the plot below, together with a flat-line fit to it - only for points with run N < 20

First column: index (from 0 to 25)
Second column: run number
Third column: number of events in beam-off, with Etot > 100 MeV and no activity in the veto
Fourth column: beam-on time (s)
Fifth column: beam-off time (s)

Data concerning the runs can be found here: https://docs.google.com/spreadsheets/d/1THTwikcO_k8J4Bp6mN4DpxvC4d9cVe-Kw1cbGBxYP5o/edit?usp=sharing <https://docs.google.com/spreadsheets/d/1THTwikcO_k8J4Bp6mN4DpxvC4d9cVe-Kw1cbGBxYP5o/edit?usp=sharing>

Bests,
Andrea

0 1324 16 65978 32898
1 1325 13 207105 99810
2 1326 6 92449 0
3 1328 10 122210 26609
4 1329 12 81224 132227
5 1330 21 208401 63282
6 1331 21 207834 183144
7 1332 38 147898 100430
8 1333 22 140335 126618
9 1334 12 51084 109894
10 1335 25 316189 82118
11 1336 12 131933 31893
12 1337 5 65191 109600
13 1338 12 83072 131991
14 1339 0 5584 10721
15 1342 6 86000 70671
16 1343 15 110428 45052
17 1344 15 91820 161221
18 1347 34 119437 158105
19 1348 5 61187 153403
20 1349 63 102661 83581
21 1350 34 74625 98131
22 1351 28 48924 170000
23 1352 10 74521 133233
24 1353 0 52888 168434
25 1354 7 65316 156103
