Dear all,

As suggested by the deep processes working group, I've attempted a
comparison of DVCS beam-spin asymmetry amplitude (after pion
subtraction) with CLAS6 (I've used F-X analysis note to get CLAS6 points
https://misportal.jlab.org/ul/Physics/Hall-B/clas/viewFile.cfm/2007-026.pdf?documentId=688).
First of all, since the binning and the kinematic distributions are very
different, I don't have a good match between bins. I've compared the
average value of xB/Q2/t for each bin and for each bin I've picked the
CLAS6 bin with the closest average values. I've found only 6 bins out of
my 16 that match a CLAS6 bin (sometimes it doesn't even match very well).

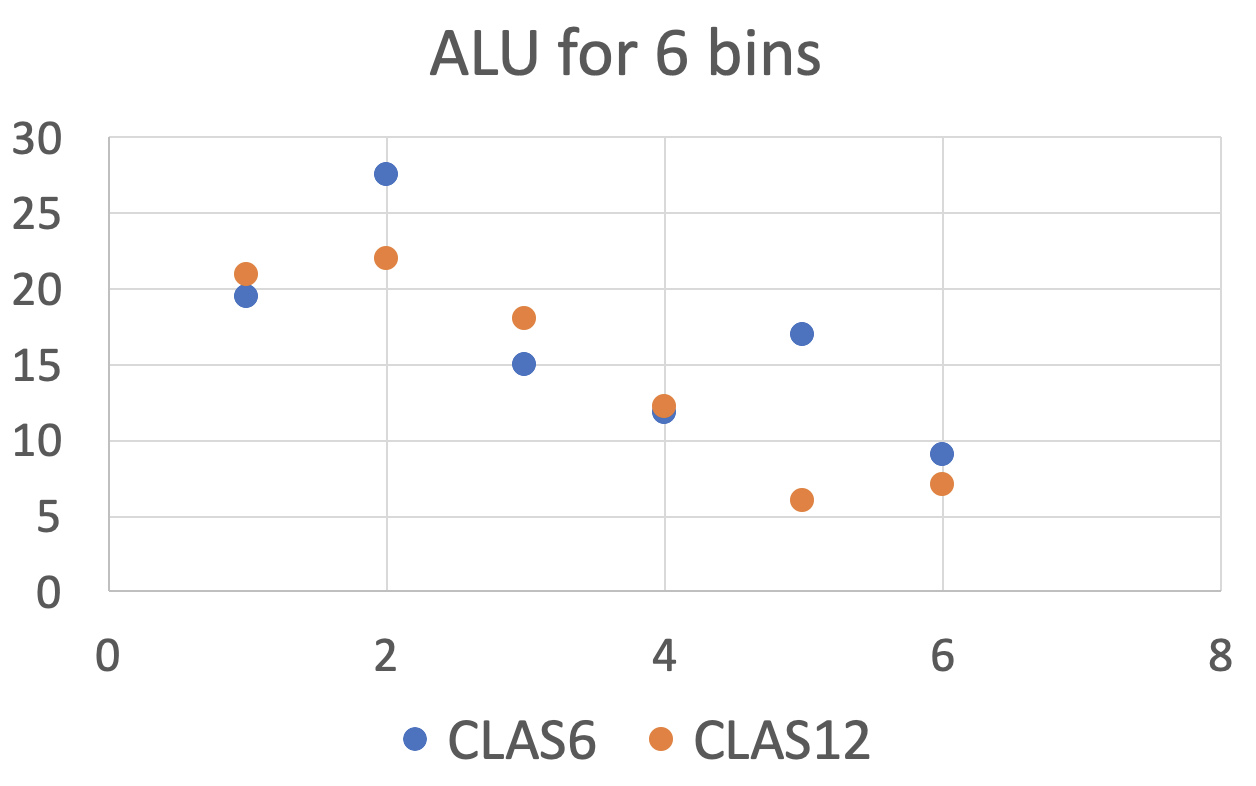

Attached is what I have in the end for the 6 bins.
I've labeled the bins from 1 to 6: bins 1 to 3 are "low |T|" bins while
bins 4 to 6 are "high |T|" (1 have the same Q2/xB bins as 4, 2 same as
5, 3 same as 6 ).
I have one bin with a big mismatch and 5 bins with a relatively good
agreement, but, again, I don't think this is a good comparison because
bins don't match well and there are sometimes very big bin-by-bin
variations of the amplitude.

Best regards

Guillaume

-------------- next part --------------
A non-text attachment was scrubbed...
Name: ALU_Clas12-Clas6-comparison.png
Type: image/png
Size: 73857 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/clas12_deepana/attachments/20191011/5bc28814/attachment-0001.png>
