[clas12_rgk] Fwd: Re: [EXTERNAL] Re: RGK pass0

[Marco Mirazita]

Dear Annalisa,
I attached the RICH timeline. As you can see, there is a few tenths of
ps shift from zero in the time mean.
Although this shift is an order of magnitude smaller than the sigma, we
would like to try to improve the calibration.
To do so, I think we will need the recooking of these runs:
- Run 5813 should work for all runs >= 5807 (by looking at the FTOF
timeline I think we won't need the run 5951 anymore, but I will check
once the run 5813 is recalibrated)

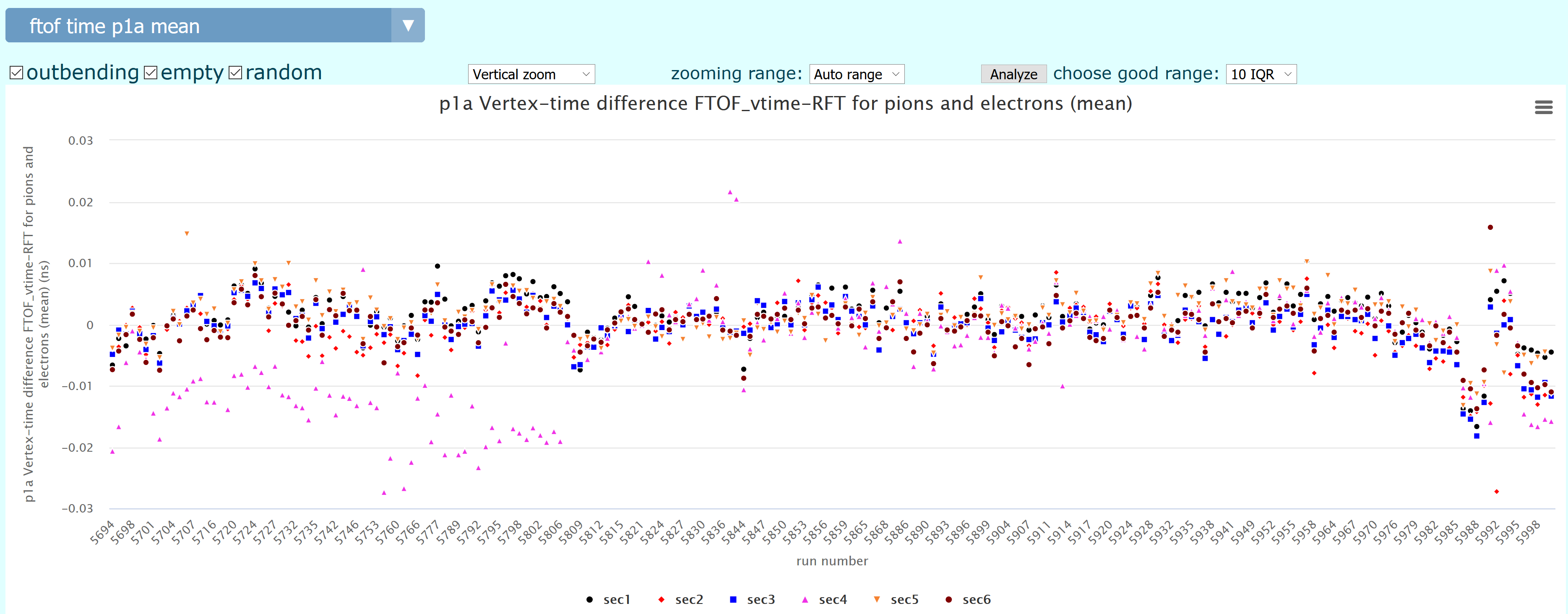

- Run 5700 was used for the runs <5807. For some reason, the mean of
FTOF p1a in sector 4 is 10-20 ps off for all these runs except
5696,5699,5700. Therefore I would ask to cook another run, for example
5701 or 5703
Best regards,
Marco



Il 2020-05-15 11:51 Annalisa D'Angelo ha scritto:
> Dear All,
>
> Please take a look at the rg-k pass0 timeline, which was started last
> Sunday (updated RICH and DC calibrations were not available yet) and
> check the quality of the detector calibration over the rg-k run range
> to decide weather or not we need some improvements.
>
> Thank you in advance for a prompt response
>
> Annalisa
>
>  -------- Messaggio Inoltrato --------
>
>  		OGGETTO:
>  		Re: [EXTERNAL] Re: RGK pass0
>
>  		DATA:
>  		Thu, 14 May 2020 22:08:48 -0400
>
>  		MITTENTE:
>  		Andrey <kenjo at jlab.org>
>
>  		A:
>  		Annalisa D'Angelo <annalisa.dangelo at roma2.infn.it>
>
>  		CC:
>  		Brandon Clary <brandon.clary at uconn.edu>, Nikolay Markov
> <markov at jlab.org>, Raffaella De Vita <Raffaella.Devita at ge.infn.it>,
> Dan Carman <carman at jlab.org>, Latifa Elouadrhiri <latifa at jlab.org>
>
> https://clas12mon.jlab.org/rgk/pass0/v2.2.13/tlsummary/ [1]
>
> Please take a look at these timelines. Everything finished without
> errors, and I think Sangbaek fixed some issues that led to missing
> timelines, but just in case please report back if any of the timelines
> are missing.
> Best,
> Andrey.
>
> On Thu, May 14, 2020 at 4:17 PM Andrey <kenjo at jlab.org> wrote:
>
>> Started running timeline generation right now!
>>
>> On Thu, May 14, 2020 at 4:12 PM Annalisa D'Angelo
>> <annalisa.dangelo at roma2.infn.it> wrote:
>>
>> Dear Kim,
>> would you please proceed urgently with the timelines?
>> Thank you
>> Annalisa
>>
>> Il 14/05/20 22:09, Brandon Clary ha scritto:
>>
>> Dear All,
>>
>> Monitoring the files is complete. The output can be found here
>> /work/clas12/rg-a/software/clas12_monitoring/plots*
>>
>> for the provided runs, which are specified in this txt file
>>
>>
> /work/clas12/rg-a/software/clas12_monitoring/runListRGKPass0v2p2p13.txt
>>
>>
>> Best,
>> Brandon
>>
>> On Thu, May 14, 2020 at 11:18 AM Brandon Clary
>> <brandon.clary at uconn.edu> wrote:
>>
>> Dear All,
>>
>> Working on it right now. I'll let you know when it is complete.
>>
>> Best,
>> Brandon
>>
>> On Thu, May 14, 2020 at 9:12 AM Annalisa D'Angelo
>> <annalisa.dangelo at roma2.infn.it> wrote:
>>
>> *Message sent from a system outside of UConn.*
>>
>> Thank you in advance!
>> Annalisa
>>
>> Il 14/05/20 14:39, Nikolay Markov ha scritto:
>>
>> Dear all,
>> we have finished with pass0 for the RGK
>>
> /volatile/clas12/rg-k/production/recon/pass0/calib/v2.2.13/mon/recon/
>>
>> Could you please produce monitoring plots/histograms?
>> It is rather urgent.
>> Thank you very much, Nick.
>>
>> --
>> ================================================
>> Prof. Annalisa D'Angelo
>> Dip. Fisica, Universita' di Roma "Tor Vergata"
>> Istituto Nazionale di Fisica Nucleare
>> Sezione di Roma Tor Vergata, Rome Italy
>> email:annalisa.dangelo at roma2.infn.it
>> Jefferson Laboratory, Newport News, VA USA
>> Email: annalisa at jlab.org
>> Tel: + 39 06 72594562
>
>  --
>
> Best,
> Brandon Clary
>
>  --
>
> Best,
> Brandon Clary
>
> --
> ================================================
> Prof. Annalisa D'Angelo
> Dip. Fisica, Universita' di Roma "Tor Vergata"
> Istituto Nazionale di Fisica Nucleare
> Sezione di Roma Tor Vergata, Rome Italy
> email:annalisa.dangelo at roma2.infn.it
> Jefferson Laboratory, Newport News, VA USA
> Email: annalisa at jlab.org
> Tel: + 39 06 72594562
>
>
>
> Links:
> ------
> [1] https://clas12mon.jlab.org/rgk/pass0/v2.2.13/tlsummary/
-------------- next part --------------
A non-text attachment was scrubbed...
Name: RICH_RG-K.pdf
Type: application/pdf
Size: 278702 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/clas12_rgk/attachments/20200515/bdb75d57/attachment-0001.pdf>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: FTOFp1a_RG-K.PNG
Type: image/png
Size: 279732 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/clas12_rgk/attachments/20200515/bdb75d57/attachment-0001.png>
