[d2n-analysis-talk] E/p Correction & Effects on Pion Rejection Efficiencies
David Flay
flay at jlab.org
Fri Dec 11 14:41:41 EST 2009
Hi all,

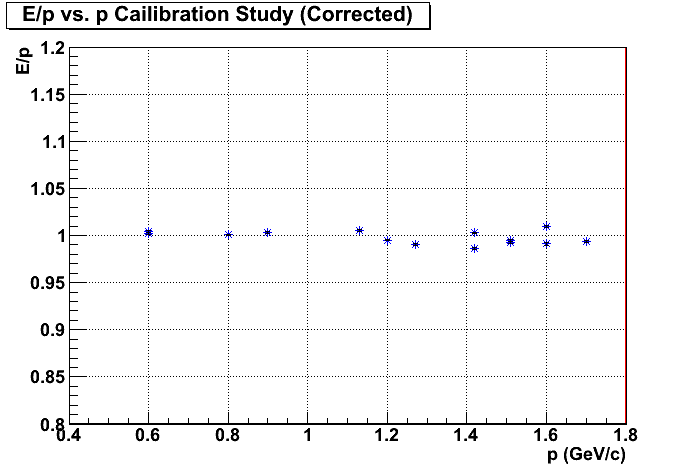

I've made corrections to the E/p vs. p plot I showed on 11/17/09 so that
E/p lies along a straight line now (see first plot). Yesterday I've also
made a plot of sigma/p vs. p, where sigma is obtained from a Gaussian fit
to the E/p distribution (see second plot). This fit is consistent with
Patricia's work, however I am not too comfortable with the leading
parameter being negative -- I'm currently looking into this.
Now, as for the effects on the efficiencies -- if you recall from 12/1/09,
I showed the pion rejection efficiencies in both the GC and the PR. They
both tended to have a momentum dependence. In particular, the E/p cut
used in the PR in conjunction with a cut in the GC had a very pronounced
effect. This is the cut combination I investigated first. My corrections
to the E/p drift as a function of p seem, at the moment, to have little to
no effect. I'm not too sure as to why this is (see third plot).
Finally, I revisited the Gas Cerenkov pion rejection efficiency as a
function of cut position in the Cerenkov. This as well seems to not
change by much now that E/p has been corrected (to make sure I was testing
the correction, I now select particles in the E/p (corrected)
distribution, as opposed to the L.prl1.e vs. L.prl2.e plot). However, I
calculated the percent differences for these three data sets here, and on
average the percent difference of p = 0.6 to p = 1.20 is ~0.25%, while the
percent difference for p = 0.6 to p = 1.70 is ~0.68%. These percent
differences seem reasonable, but the effect looks more pronounced on the
plot (see last plot).
Dave
-------------------------------------------------
David Flay
Physics Department
Temple University
Philadelphia, PA 19122
office: Barton Hall, BA319
phone: (215) 204-1331
e-mail: flay at jlab.org
david.flay at temple.edu
website: http://www.jlab.org/~flay
-------------------------------------------------
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pr_E_P_all_12_11_09.png
Type: image/png
Size: 12228 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20091211/7f3d49b1/attachment-0004.png
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pr_E_P_sig-p_12_11_09.png
Type: image/png
Size: 15779 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20091211/7f3d49b1/attachment-0005.png
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pr_ep-gc-pr-cut-eff_5p06-5p170_12_10_09.png
Type: image/png
Size: 19472 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20091211/7f3d49b1/attachment-0006.png
-------------- next part --------------
A non-text attachment was scrubbed...
Name: cer_pr-ce_5p06-5p170_12_11_09.png
Type: image/png
Size: 21622 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20091211/7f3d49b1/attachment-0007.png
