After working through my first method as described previously, I wanted to
compare it to that of Vince's code.  This is how his code works:

1. Alignment of S2m Time Averages for Each Paddle: Vince's Code

   The code plots the <difference> of average times of neighboring paddles
   [that is, t = 0.5*(t_L + t_R)] vs. paddle number in the following way:

   y-axis:

   0.5*(L.s2.lt[L.s2.t_pads[0]]+L.s2.rt[L.s2.t_pads[0]]) -
   0.5*(L.s2.lt[L.s2.t_pads[1]]+L.s2.rt[L.s2.t_pads[1]])

   x-axis:

   L.s2.t_pads[0] <-- Gives paddles that had a [coincident] L & R TDC.

   This examines events for which multiple paddles have fired.
   The [0] and [1] ensures that we are looking at events that
   have a hit in the first paddle <and> a hit in the overlapping
   paddle just behind it.

   We then take the projection of this plot onto the y-axis,
   and for each paddle, we grab the mean of this 1D histogram.
   => dt = mean of 1D histogram.

   The new offset for paddle i [so that its time average will align with
   paddle i-1] is:

   off[i] = off[i-1] + dt.

   The code then <chooses> the central paddle as the 'reference point.'
   That is, we <subtract> the middle paddle offset from all offsets:

   off[i] -= shift,

   where 'shift' is the middle paddle's offset. The new time averages are
   calculated as:

   t_avg[i] = - off[i].

   To determine what needs to go into the DB for the left and right PMTs,
   we need the time difference between left and right PMTs:

   t_diff = (t0_L - t0_R).

   This is done by plotting the TDC time difference versus the position
   along the scintillator paddles, L.s2.try, for each paddle.  We then
   take the projection of this plot onto the x-axis.  The constant term from
   the fit is the time difference offset for the paddle, while the linear
   term from the fit is related to the speed of light through the paddle.

   From here, the times for left and right PMTs are calculated as:

   t_R = t_avg - 0.5*t_diff,

   t_L = t_avg + 0.5*t_diff

   This method isn't exactly perfect; therefore, there are 'tune' arrays
   built into the code to make the average times line up better.  These
   values are done 'by hand.'  The best way [I've found] is to plot the
   time averages as 1D histograms, get the mean, and shift the peaks as
   needed [instead of hard-coding these values into Vince's script] in the
   DB.

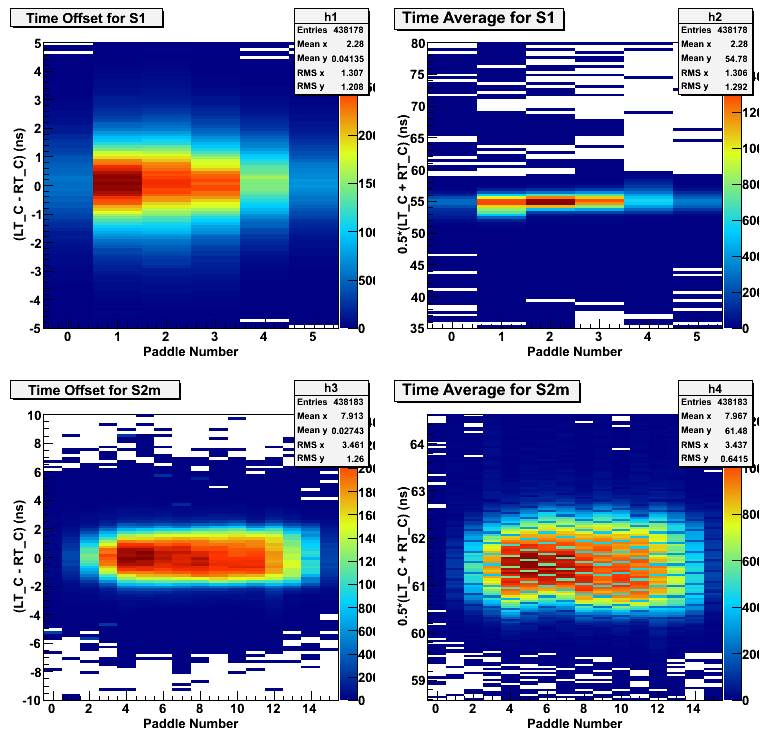

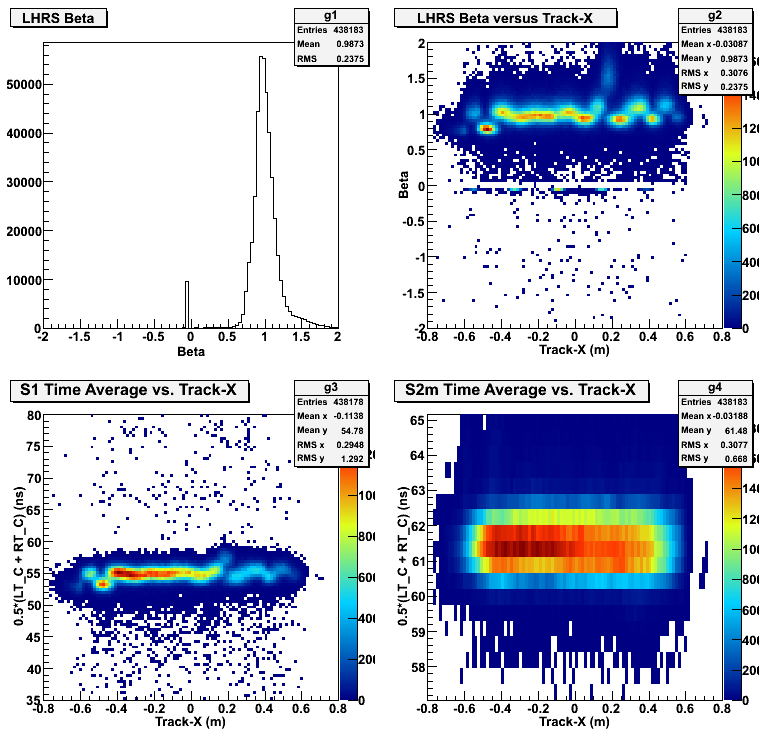

   If we then look at the plot of the time average for S2m vs. paddle
   number, each paddle is in much closer agreement with one another (see
   attached plot).

   My main motivation of the comparison is to see what difference it makes
   to use the relevant TDCs firing as a requirement of multiple paddles
   firing, compared to the variable L.s2.t_pads[].  From a logical
   perspective, I would think that either way <should> work, but maybe
   Vince's use of this variable is more proper than my naive requirement
   of L and R TDCs of the paddles of interest firing?


Dave


-------------------------------------------------
