[d2n-analysis-talk] Investigation of Timewalk Correction Factors & RF Time

[David Flay]

To get a feel of by how much the timewalk correction factors that are
currently in the database correct for, I commented them out of my DB (on
my machine) to see what the TDC vs. 1/sqrt(ADC) plot would look like.  The
first 4 plots show the L and R for s1, then S2m.  The last four show the
same plots, but now with the correction factors implemented.  It seems
that there is no change in these plots.

This could mean that either the DB isn't reading the #'s correctly, or
that these factors are just not right altogether.  I have a feeling it's
the latter.

In which case, I notice that Chiranjib has done this study using the RF
clock.  When I use 'T->Print("DL.rftime*"), I get:

****************************************************************************
*Tree    :T         : Hall A Analyzer Output DST
  *
*Entries :   613480 : Total =      7630679173 bytes  File  Size =
1497395139 *
*        :          : Tree compression factor =   5.10
  *
****************************************************************************
*Br    0 :DL.rftime1 : DL.rftime1/D
  *
*Entries :   613480 : Total  Size=    5025850 bytes  File Size  =
155248 *
*Baskets :     1252 : Basket Size=       4000 bytes  Compression=  32.21
  *
*............................................................................*
*Br    1 :DL.rftime2 : DL.rftime2/D
  *
*Entries :   613480 : Total  Size=    5025850 bytes  File Size  =
155248 *
*Baskets :     1252 : Basket Size=       4000 bytes  Compression=  32.21
  *
*............................................................................*

So, there's two of these guys.  Which one would be the 'right' to use?

Further -- what is the RF clock? I've never gotten a straight answer from
Chiranjib...

Any suggestions would be appreciated!


-------------------------------------------------
David Flay
Physics Department
Temple University
Philadelphia, PA 19122

office: Barton Hall, BA319
phone: (215) 204-1331

e-mail: flay at jlab.org
            flay at temple.edu

website: http://www.jlab.org/~flay
              http://quarks.temple.edu
-------------------------------------------------
-------------- next part --------------
A non-text attachment was scrubbed...
Name: s1_timewalk_no-cor_L_20676_3_13_10.png
Type: image/png
Size: 60781 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20100313/b02819d9/attachment-0008.png
-------------- next part --------------
A non-text attachment was scrubbed...
Name: s1_timewalk_no-cor_R_20676_3_13_10.png
Type: image/png
Size: 58454 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20100313/b02819d9/attachment-0009.png
-------------- next part --------------
A non-text attachment was scrubbed...

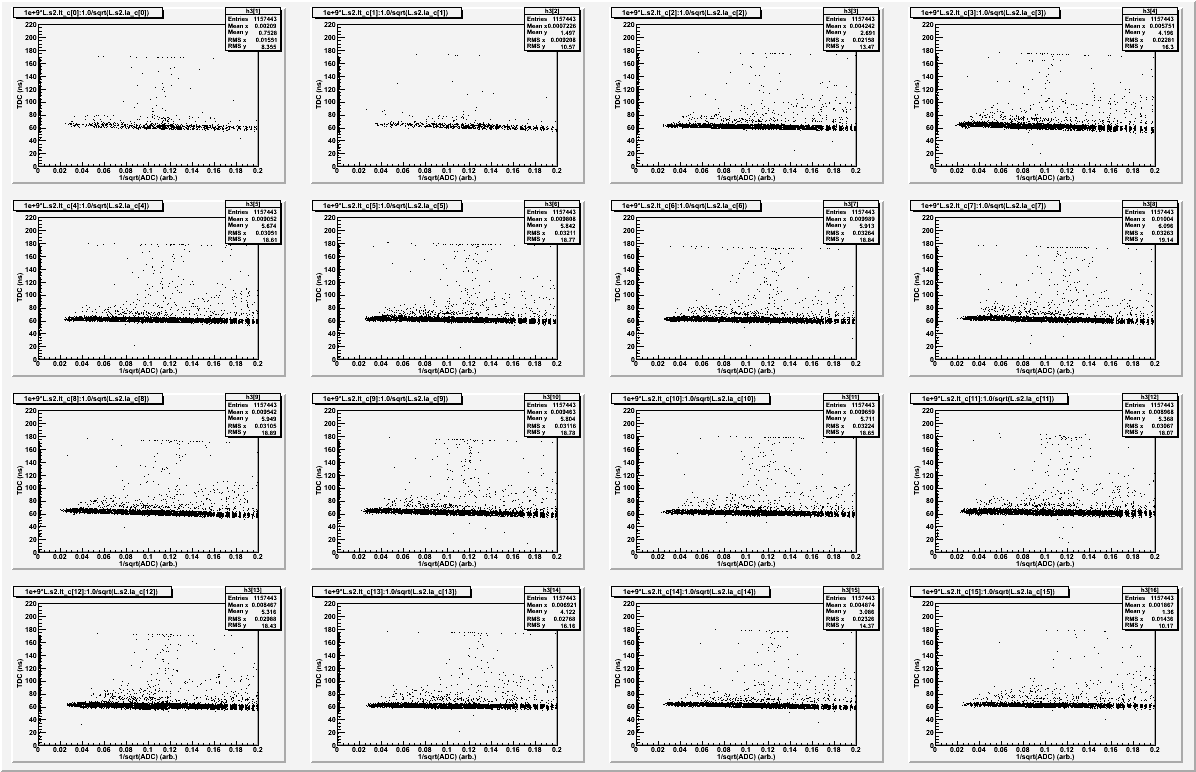

Name: s2m_timewalk_no-cor_L_20676_3_13_10.png
Type: image/png
Size: 59980 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20100313/b02819d9/attachment-0010.png
-------------- next part --------------
A non-text attachment was scrubbed...

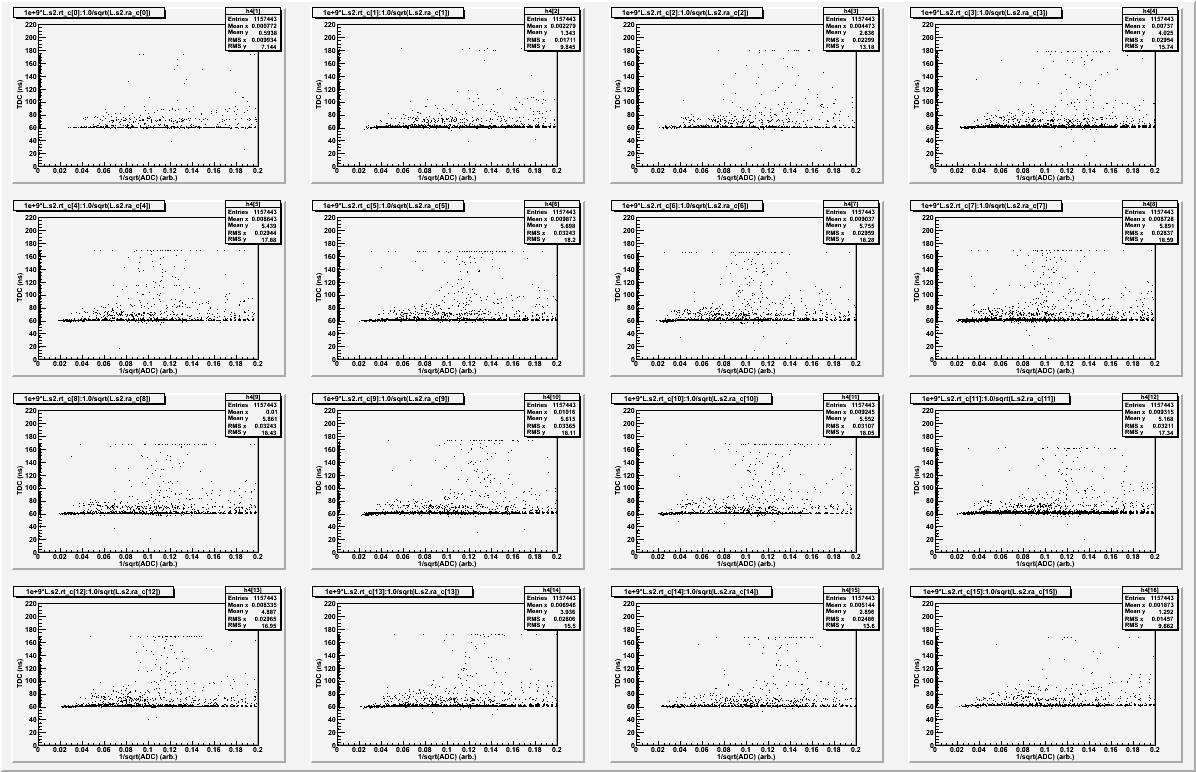

Name: s2m_timewalk_no-cor_R_20676_3_13_10.png
Type: image/png
Size: 57547 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20100313/b02819d9/attachment-0011.png
-------------- next part --------------
A non-text attachment was scrubbed...

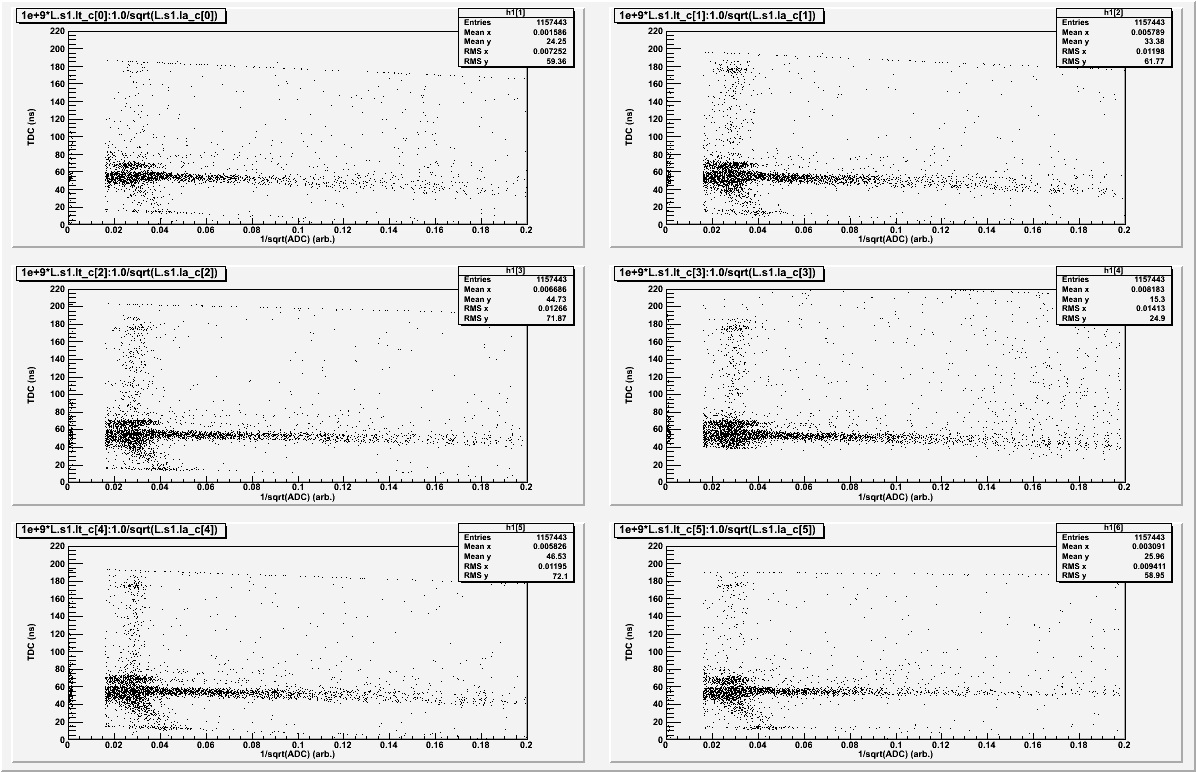

Name: s1_timewalk_cor_L_20676_3_13_10.png
