[d2n-analysis-talk] retimed TDCs

posik at jlab.org posik at jlab.org
Wed Mar 31 23:16:17 EDT 2010


Hi Brad,

   I followed up on your suggestion to use
DBB.BBxxxTnn[Ndata.DBB.BBxxxTnn-1] instead of DBB.BBcerTnn[0]. I first
just plotted TDC 04 from run 2060 with an (DBB.evtypebits&1<<2)==(1<<2)

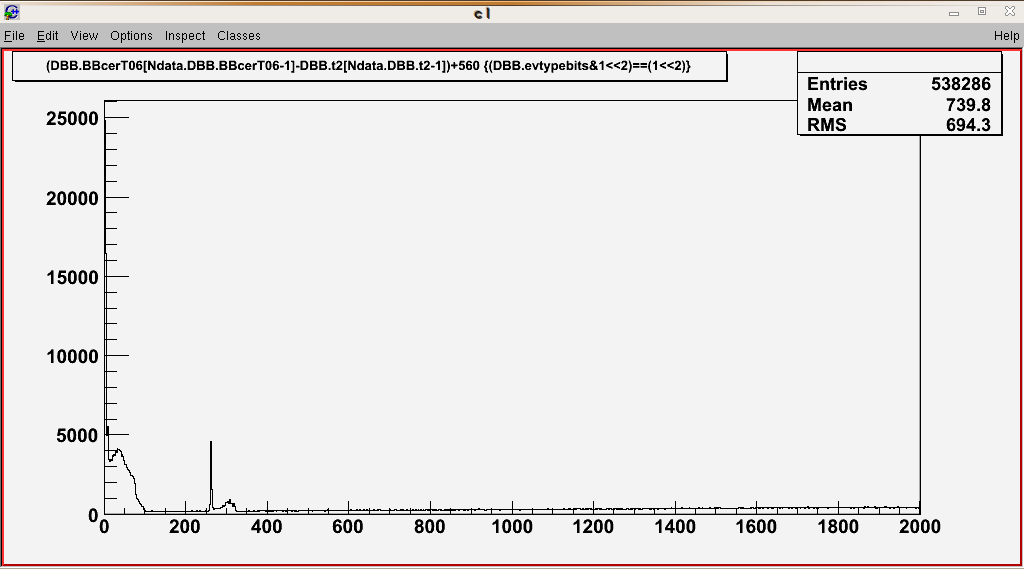

cut (t4.png). This is fine, but I then tried to plot the re-timed TDC
by doing

"DBB.BBcerT04[Ndata.DBB.BBcerT04-]-DBB.t2[Ndata.DBB.t2-1]+560"
 with (DBB.evtypebits&1<<2)==(1<<2) cut and I get this (retimed_tdc.png).

This seems like an odd TDC structure.

-matt
-------------- next part --------------
A non-text attachment was scrubbed...
Name: t4.png
Type: image/png
Size: 21748 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20100331/147bc2e9/attachment-0002.png
-------------- next part --------------
A non-text attachment was scrubbed...
Name: retimed_tdc.png
Type: image/png
Size: 19684 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/d2n-analysis-talk/attachments/20100331/147bc2e9/attachment-0003.png
