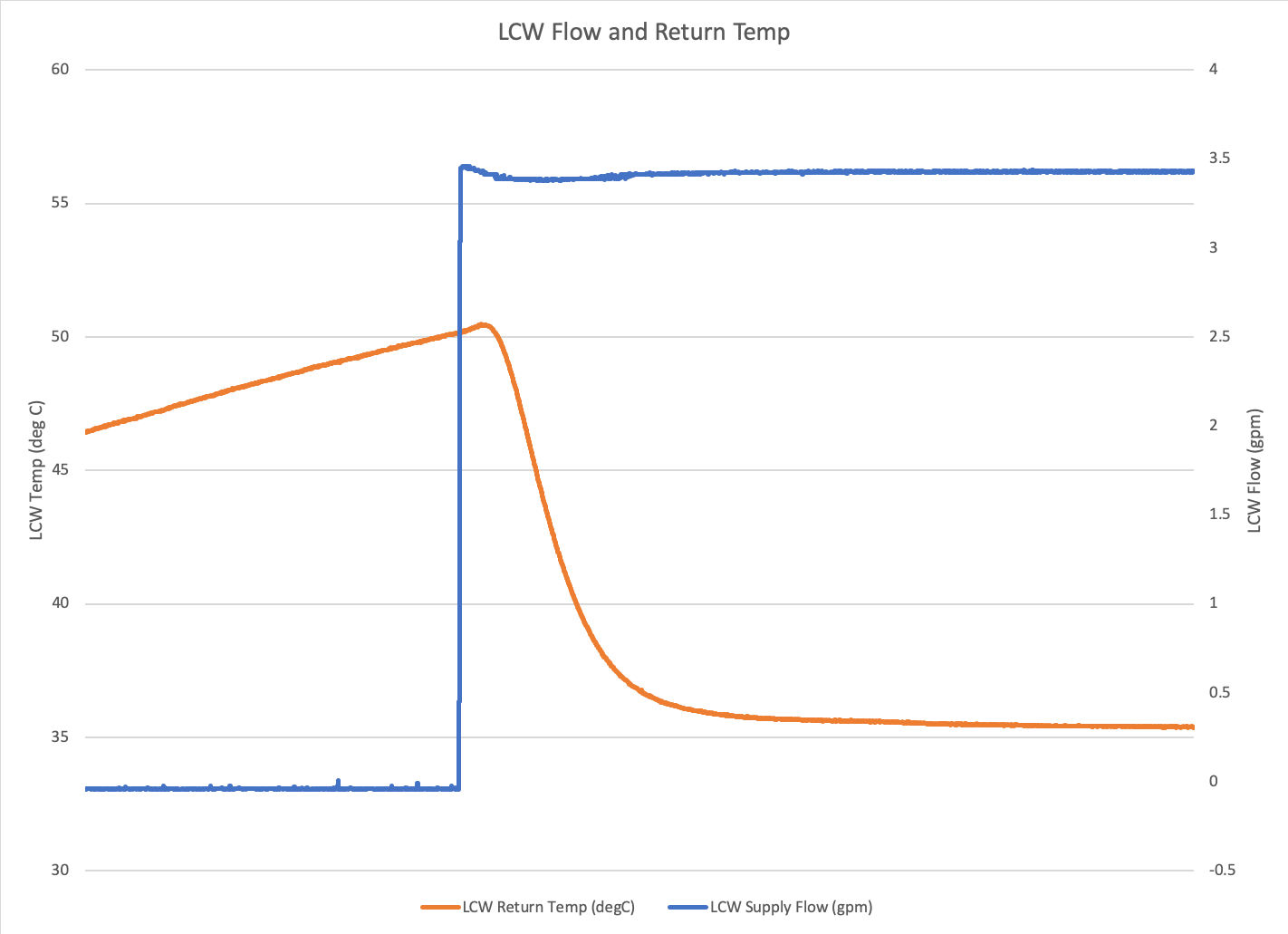

Attached is an Excel file with the data from the PLC during the ramp up to 700A and when the flow was restored (after being restricted). Unfortunately, it looks like the PLC trends only saves so much data so it doesn't have the steps down in flow that were done.

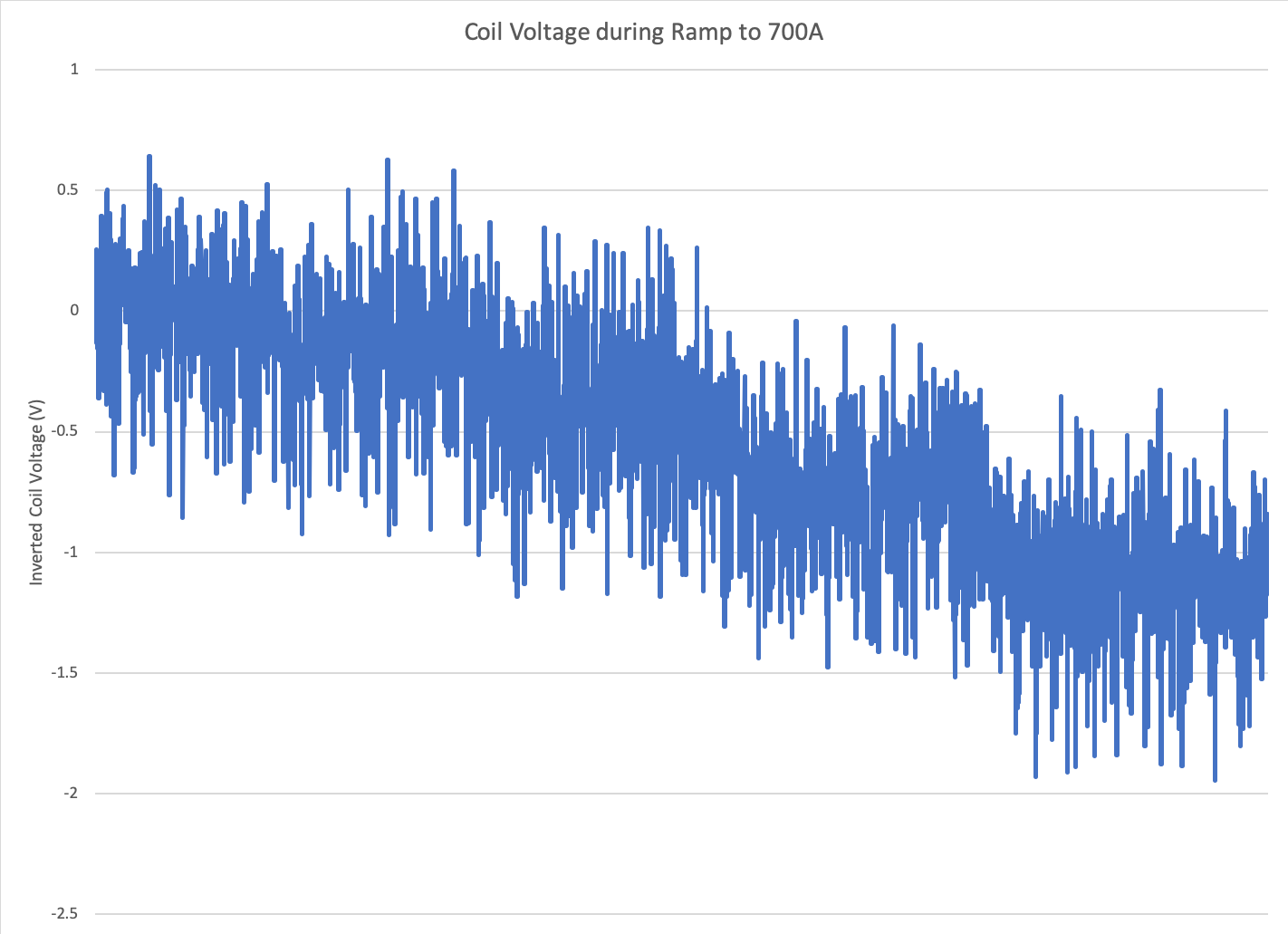

I also attached some plots. Note that the voltage tap was connected backwards so the negative voltage is really positive.
