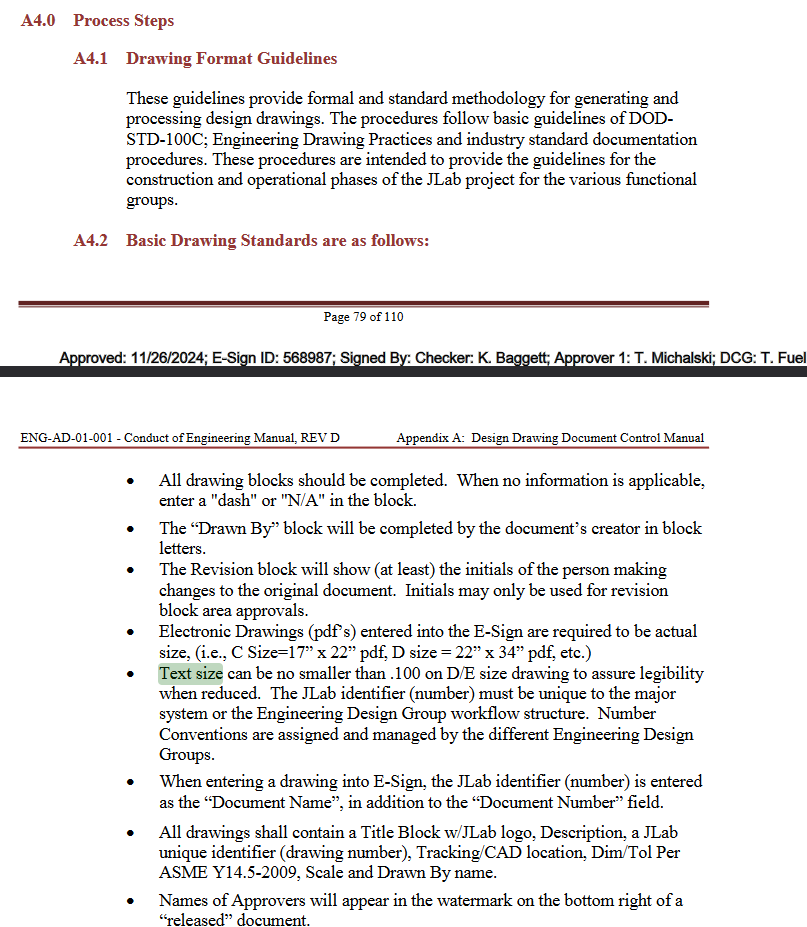

Based on the Design Drawing Document Control Manual, looks like we should be able to modify the size for the text as far as it is at least 0.1 inchs on D size drawing.


[cid:1aa922b2-b0d5-4177-bf2c-b64d0247ed8b]

I modified our title block to fit our specific text, as follow:

Drawing number size: 0.180
Name size: 0.1
We can reduce also the drawing title, if needed.

Check the dwg files for title block at : O:\DSG\Hall A\Moller\P&ID\DWG Title Block

[cid:165be0cd-7212-4dfe-bdd4-e7b295c3fc5f]

________________________________
From: Dsg-halla_moller_inc <dsg-halla_moller_inc-bounces at jlab.org> on behalf of Mary Ann Antonioli <antoniol at jlab.org>
Sent: Friday, February 7, 2025 11:27 AM
To: dsg-halla_moller_inc at jlab.org <dsg-halla_moller_inc at jlab.org>
Subject: Re: [Dsg-halla_moller_inc] new title block

Drawing number doesn't fit
[cid:4a76bdce-a1d7-4240-b2fb-52c492c30bbe]

________________________________
From: Dsg-halla_moller_inc <dsg-halla_moller_inc-bounces at jlab.org> on behalf of Mary Ann Antonioli <antoniol at jlab.org>
Sent: Friday, February 7, 2025 9:10 AM
To: Pablo Campero Rojas <campero at jlab.org>; dsg-halla_moller_inc at jlab.org <dsg-halla_moller_inc at jlab.org>
Subject: Re: [Dsg-halla_moller_inc] new title block

Don't even get me started on how JLab slaughters my name. 😡 I will use lower case to keep my name correct. I thought we had to use all upper.

________________________________
From: Pablo Campero Rojas <campero at jlab.org>
Sent: Friday, February 7, 2025 9:06 AM
To: Mary Ann Antonioli <antoniol at jlab.org>
Subject: Re: new title block

Yes, That does' fit.
With the upper case format you can only fit "M. ANTONIOLI"
Do you really need the "A"?
________________________________
From: Mary Ann Antonioli <antoniol at jlab.org>
Sent: Friday, February 7, 2025 8:56 AM
To: Pablo Campero Rojas <campero at jlab.org>
Subject: Re: new title block

No it doesn't.
[cid:0b6e9436-31b2-459c-9bcc-9e9fc3916db5]

________________________________
From: Pablo Campero Rojas <campero at jlab.org>
Sent: Friday, February 7, 2025 8:47 AM
To: Mary Ann Antonioli <antoniol at jlab.org>; dsg-halla_moller_inc at jlab.org <dsg-halla_moller_inc at jlab.org>
Subject: Re: new title block

Yes, we will keep the text format as specified on the title block.
I made a test and your name fits on the drawn box. Just double click the "XXXX" text and add your name.
[cid:b388e97a-d470-4e3f-967d-6c5d2f841615]
________________________________
From: Dsg-halla_moller_inc <dsg-halla_moller_inc-bounces at jlab.org> on behalf of Mary Ann Antonioli <antoniol at jlab.org>
Sent: Friday, February 7, 2025 8:04 AM
To: dsg-halla_moller_inc at jlab.org <dsg-halla_moller_inc at jlab.org>
Subject: [Dsg-halla_moller_inc] new title block

According to the notes on the new title block, the text default height is 0.125. Does this mean it has to stay at that?  I can't even fit my name (using initials for first name) in the block.
I'm not moving forward with this title block at this time, until someone else uses it. This is the third time I will be replacing title blocks and I do not want to do it a fourth time if I can help it.
