[dsg-halla_solid] JT1 man set value

[Pablo Campero Rojas]

Hello Steven,

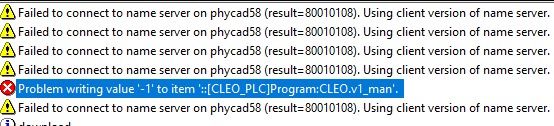

It seems like the value that you entered is trying to write to the old PLC tag "v1_man".
This PLC tag was changed to "v1_man_mod" to allow controls of the valve to cryo.

You need to close your CCR-Expert screen and open it again to see the updates on your client end. No fixes are needed.

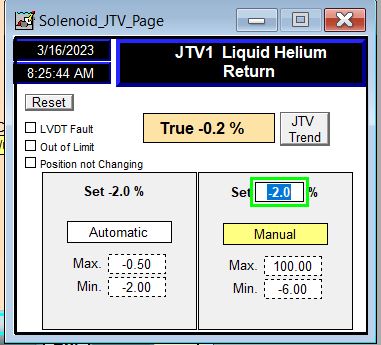

I just open a client and I was able to set that PLC tag momentarily to change the position of the valve to -2.0.  See attached picture.

-Pablo
________________________________
From: dsg-halla_solid <dsg-halla_solid-bounces at jlab.org> on behalf of Steven Lassiter via dsg-halla_solid <dsg-halla_solid at jlab.org>
Sent: Thursday, March 16, 2023 4:52 AM
To: dsg-halla_solid at jlab.org <dsg-halla_solid at jlab.org>
Subject: [dsg-halla_solid] JT1 man set value

Hello Pablo,

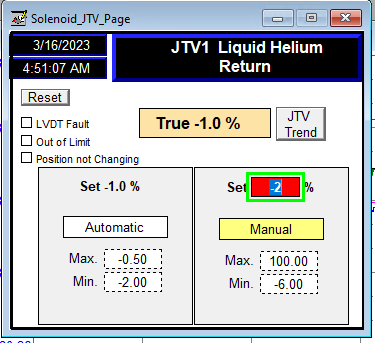

 There is a new problem with writing trying to set the valve position of JT1 when in manual mode.
This most likely came about when providing access to cryo .
This need to be fixed asap.

Steven


[cid:cabc29ba-5746-4882-9edc-835a5440c4ad]
[cid:00b0dca1-bb79-418a-85cd-933bb9a3561f]
