Here's some plots (along with comments) from the flow test to determine when the MPS would trip.

Supply Throttle - Same Scale.png | Shows when the MPS tripped along with the pressures on the same X-axis
Supply Throttle - Separate Scale.png | Same as above but with pressures on their own axis.
Supply Throttle - Correlation.png | X-axis is supply pressure, Y-axis is return pressure, shows the linear response
Makeup Flow.png | A "normal" makeup flow event

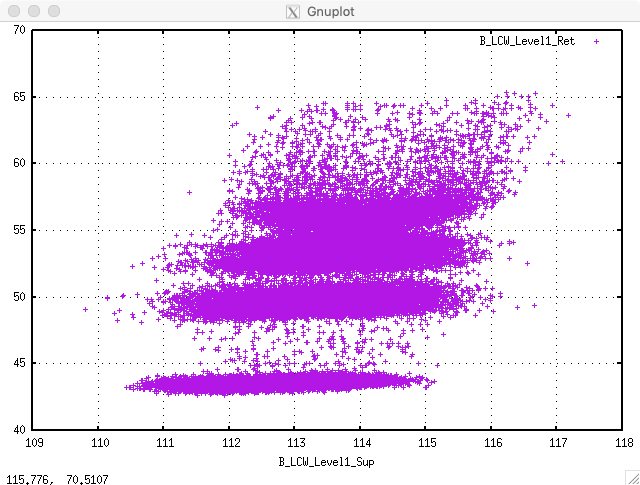

Makeup Flow - Correlation.png | X-axis is supply pressure, Y-axis is return pressure, doesn't have the same response as throttling supply valve
