[dsg-hdice] NMR power supply synchronization

[Xiangdong Wei]

Amanda,

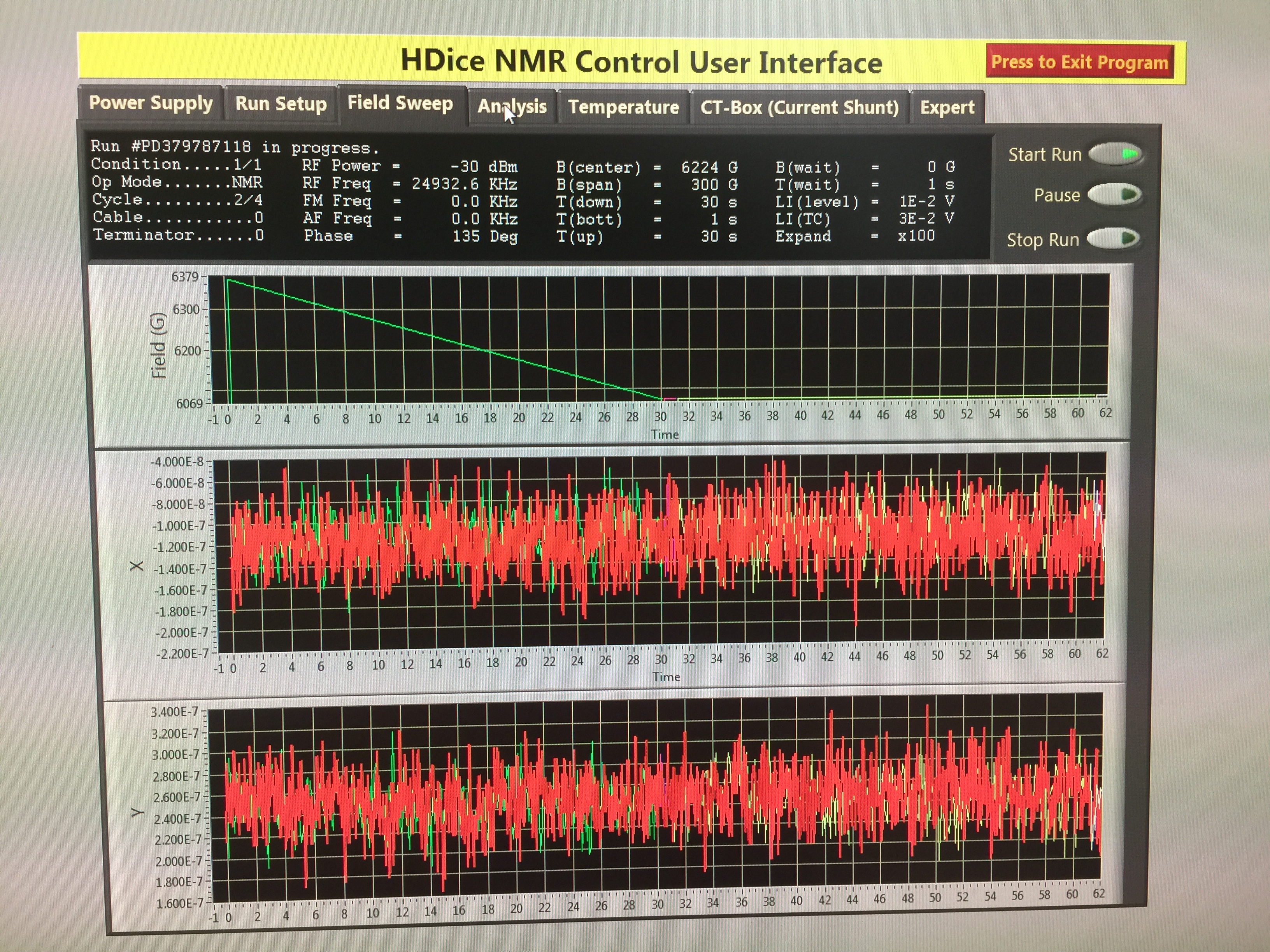

I tried to restart the Rack 2 test with PD1 this afternoon after cooling down the dewar over the weekend. The test run could not be carried out because the VI, especially the field plot malfunctioned: The VI failed to set the correct power supply parameters correctly, causing the ramping stopped at the low end of the sweeping window (Please see attached pictures). This happened in the past and was fixed. Please take a look. I'll be in HDice lab at 10:10am, after finishing an analysis meeting.

Thanks,

Xiangdong



Xiangdong Wei

x-5266
