[G12] Fwd: fiducial cuts

[Johann Goetz]

Just in case this didn't get through the mailing system...

---------- Forwarded message ----------
From: Johann Goetz <theodore.goetz at gmail.com>
Date: Mon, Jul 1, 2013 at 5:03 PM
Subject: fiducial cuts
To: g12 <g12 at jlab.org>


Hi all,
I won't have time to go into detail about these cuts, but here are two
versions of a fiducial cut dependent on abs(momentum) and cos(theta_LAB). I
printed the functions on the plot and any analysis should show the
difference (if any) between using both the cuts and no cut at all. This
will give three points to verify that a tighter cut is not needed.

For reference, I overlayed the lines on "yield ratios" That is, I took the
number of tracks from data and divided them by the number I got from
acceptance corrected simulation. Ideally, and if the model is good, the
"fiducial region" is where the 2D histogram is "flat." I can quantify this,
but I have other issues for g12 to attend to (trigger related).
-- Johann <https://sites.google.com/site/theodoregoetz/>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: https://mailman.jlab.org/pipermail/g12/attachments/20130703/39cee8f0/attachment-0001.html
-------------- next part --------------
A non-text attachment was scrubbed...

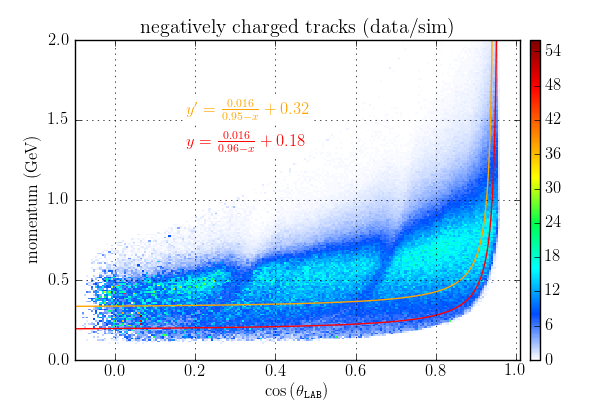

Name: neg.png
Type: image/png
Size: 73335 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/g12/attachments/20130703/39cee8f0/attachment-0002.png
-------------- next part --------------
A non-text attachment was scrubbed...

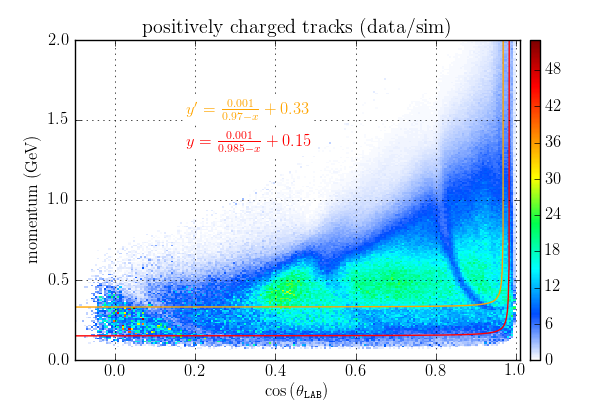

Name: pos.png
