[G8b_run] pion comparison
Michael Dugger
dugger at jlab.org
Tue Feb 28 12:08:53 EST 2012
Hi,
I still need a couple of days to finish the pion analysis note, but found
something that the group might find interesting.
I have finalized the pi0 beam asymmetries and just remembered to include
comparisons to the latest 2010 BONN results.
Where g8b and BONN 2010 can be compared, we are in very good agreement :)
I have attached the plots:

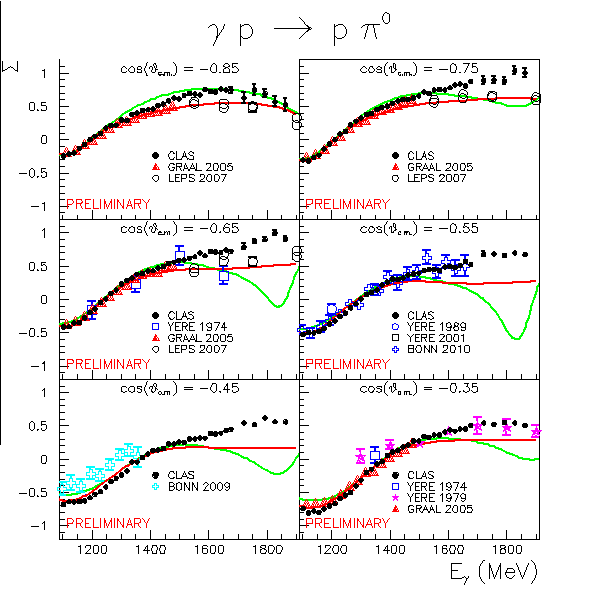

* excite1New.gif
Note: at cosCM = -0.55 the BONN 2010 results are very similar

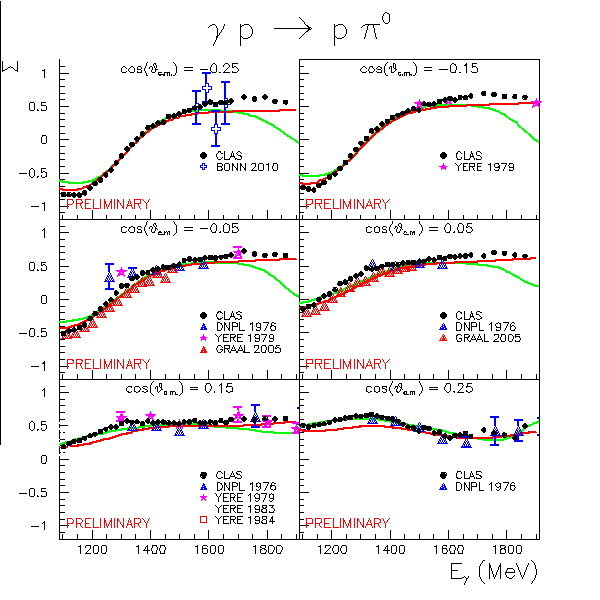

* excite2New.gif
Note: at cosCM = -0.25 there are not many BONN points, and the ones that
exist have very large error bars

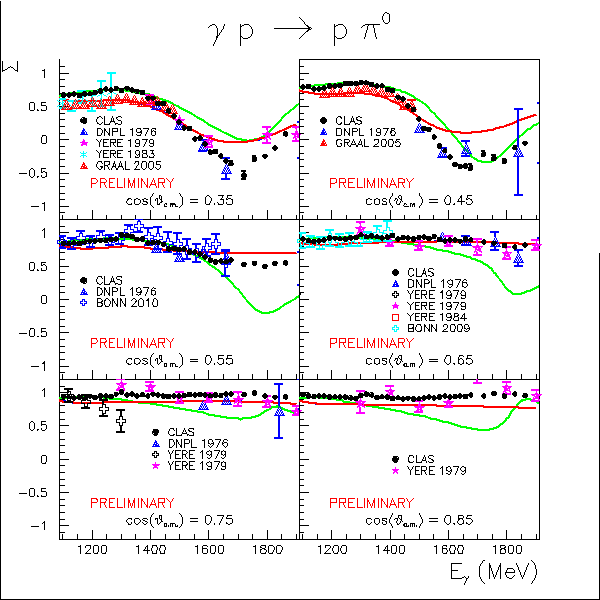

* excite3New.gif
Note: at cosCM = 0.55 there is only a couple of BONN points that we do not
overlap with.
-Michael
-------------- next part --------------
A non-text attachment was scrubbed...
Name: excite1NewB.gif
Type: image/gif
Size: 15135 bytes
Desc:
Url : https://mailman.jlab.org/pipermail/g8b_run/attachments/20120228/e7918fff/attachment-0003.gif
-------------- next part --------------
A non-text attachment was scrubbed...
Name: excite2NewB.gif
Type: image/gif
Size: 13892 bytes
Desc:
Url : https://mailman.jlab.org/pipermail/g8b_run/attachments/20120228/e7918fff/attachment-0004.gif
-------------- next part --------------
A non-text attachment was scrubbed...
Name: excite3NewB.gif
Type: image/gif
Size: 16382 bytes
Desc:
Url : https://mailman.jlab.org/pipermail/g8b_run/attachments/20120228/e7918fff/attachment-0005.gif
