Logentry Text:
--
At ~21:12 The cryostat finally got truely empty even thought it read 0.1% at  20:44. This means that there is a lot of helium below the helium level probe. So if we want to we can make the minum level of the batch fills much lower than we have been. At a depletion rate of 62% in 32 minutes, I estimate that the effective empty LL is about -52% so running the batch fill down to 20% or 30 % would be reasonable and would likely reduce the helium consumption thus reducing the load on the ESR.

I shut JT_2K and reopened FV5KH to continue heating the target.

---

This is a plain text email for clients that cannot display HTML.  The full logentry can be found online at https://logbooks.jlab.org/entry/3491810
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://mailman.jlab.org/pipermail/hallb-engineering/attachments/20171108/8c61243d/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

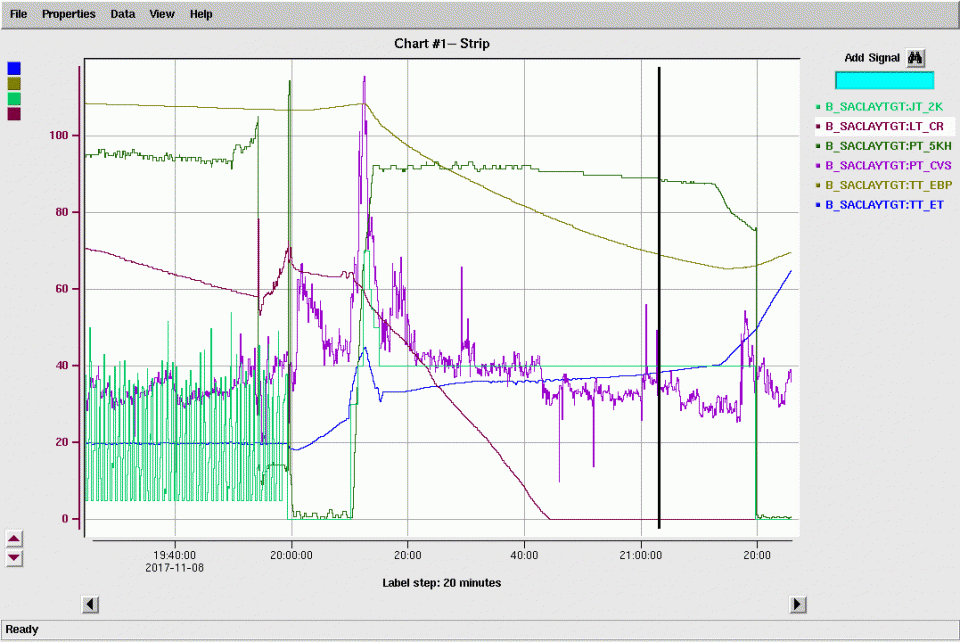

Name: clonpc21_20171108_212551.gif
Type: image/gif
Size: 75670 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/hallb-engineering/attachments/20171108/8c61243d/attachment-0002.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

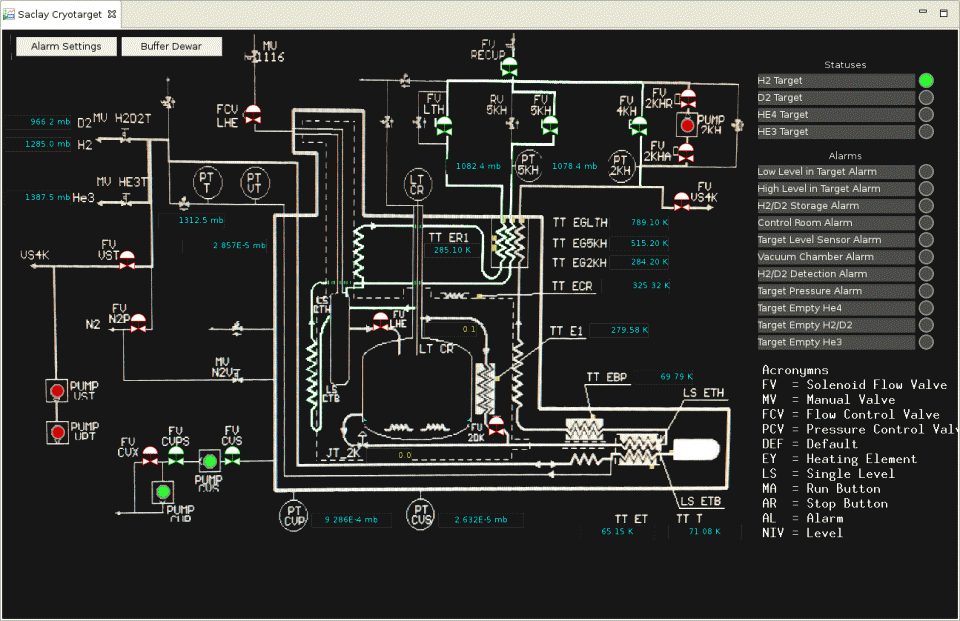

Name: clonpc21_20171108_212555.gif
Type: image/gif
Size: 99258 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/hallb-engineering/attachments/20171108/8c61243d/attachment-0003.gif>
