[Hallb-engineering] [New Logentry] Solenoid "Training Quench" and Recovery

[Glenn Young]

Dear Mont,
It is in the fast daq files that Brian Eng recovers and circulates.
The first morning quench was at 1059 amps and the second at 1066 amps.
Coil 3 both times.
We have thus had, in order, quenches in coil 3,4,4,3,3.

Should try again about 2PM today once cryo has finished recovering.
Regards, Glenn


On 9/15/2017 11:38 AM, Hugh Montgomery wrote:
>
> Dave,
>
> Where do I read the current at which the dump occurred?
>
> Mont
>
> *From:*kashy at jlab.org [mailto:kashy at jlab.org]
> *Sent:* Friday, September 15, 2017 11:25 AM
> *To:* hallb-engineering at jlab.org; stuart at jlab.org; mont at jlab.org;
> ent at jlab.org; rossi at jlab.org; gomez at jlab.org; rfair at jlab.org;
> hogan at jlab.org; gyoung at jlab.org
> *Subject:* [New Logentry] Solenoid "Training Quench" and Recovery
>
>
>   Solenoid "Training Quench" and Recovery
>   <https://logbooks.jlab.org/entry/3484541>
>
> Lognumber 3484541 <https://logbooks.jlab.org/entry/3484541>. Submitted
> by kashy <https://logbooks.jlab.org/user/kashy> on Fri, 09/15/2017 -
> 11:23.
>
> *Logbooks: *
>
>
>
> HBSOLENOID <https://logbooks.jlab.org/book/hbsolenoid> CLOG
> <https://logbooks.jlab.org/book/clog>
>

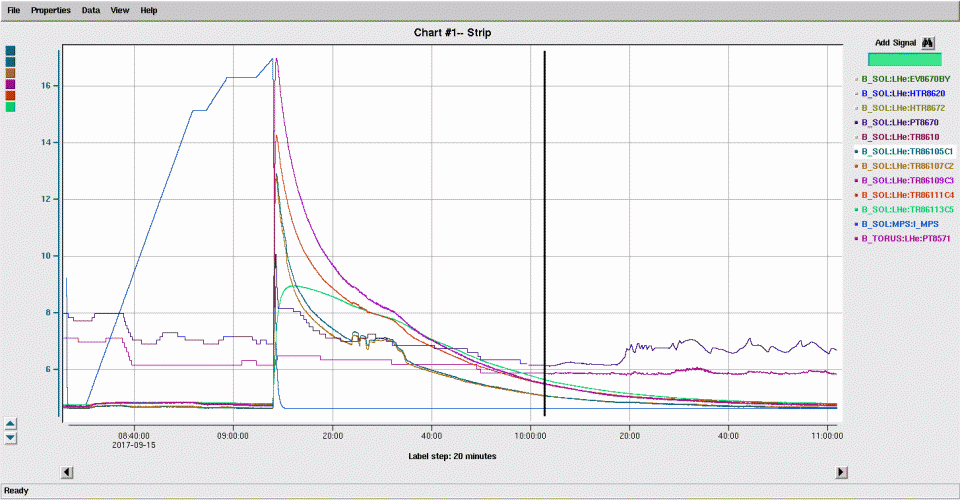

> We started ramping at 08:30 and at 9:08 the magnet fast dumped.
> Cryogenic recovery took about 1hr and 50 minutes so total was 2.5 hrs
> start ramp to ready again
> We are ramping again.
>
> We implemented a manual version of a pressure venting system that is
> designed to keep from blowing relief valve RV8670 which does not
> reseat w/o shutting off the helium. This should keep the time to
> recover lower and allow no intervention recovery as we just did.
> This also reduces peak load and pressure on warm return and thus have
> less impact on other magnet lead flows.
> At 11:05 we started ramp #2 for today
>
