[Hallb-engineering] [New Logentry] Solenoid Magnet Reservior Supply Valve EV8612

kashy at jlab.org kashy at jlab.org
Thu Jan 25 09:45:02 EST 2018


Logentry Text:
--

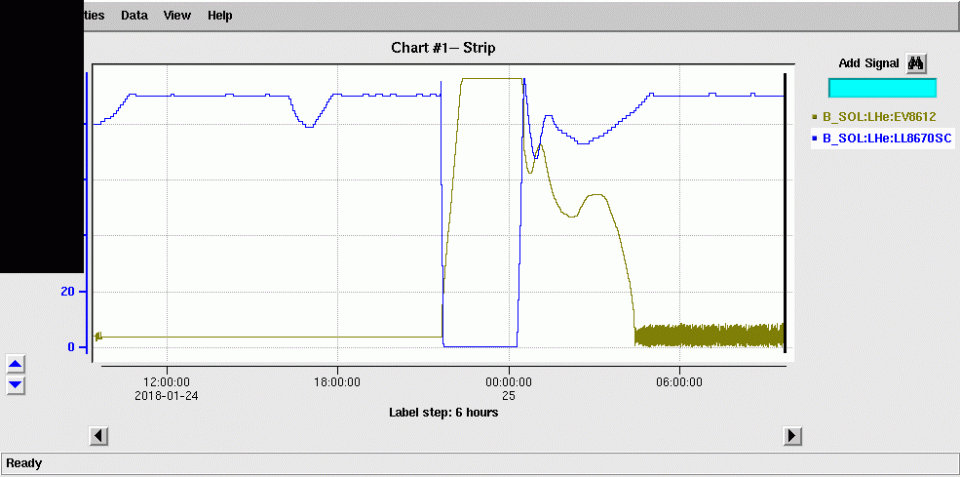

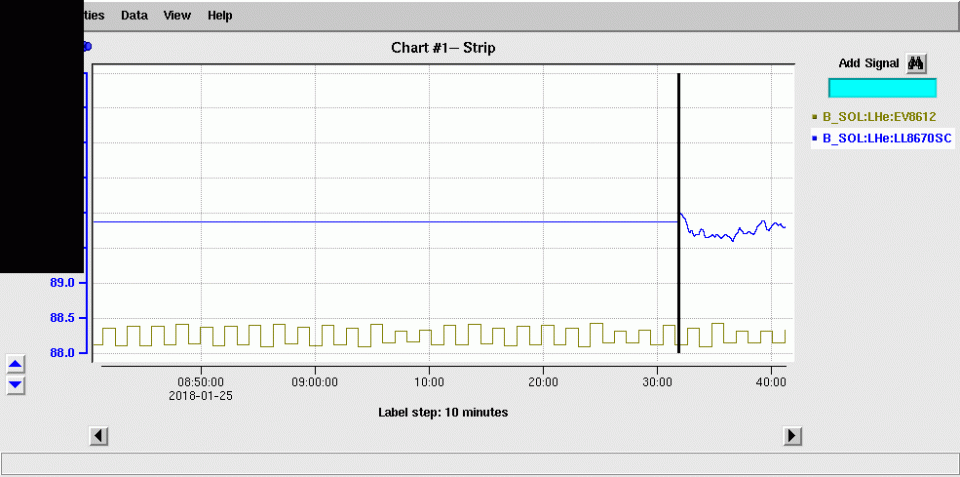

The valve is oscilating wildly and not following normal PID control.

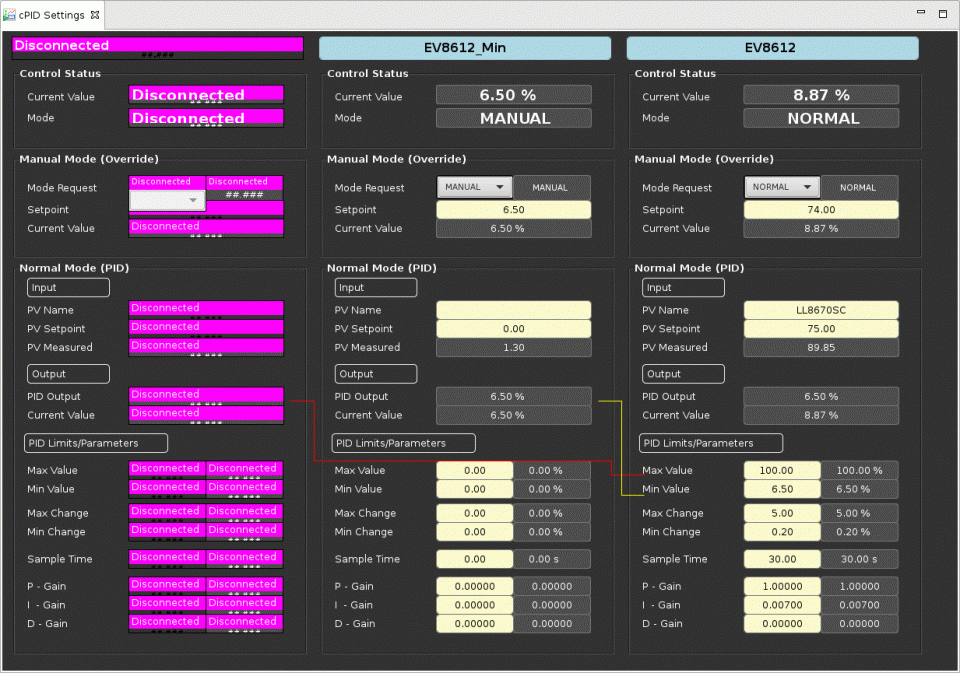

Gains all look appropriate. I called Nic Sandoval to check it in the PLC.
He found nothing that looked improper.
Magnet is full and stable, in fact it is a bit over filled.
I'll try some PID gain changes or other things to stabilize it.

---
