[Halld-jlab] Cabling Issues

[Fernando J Barbosa]

Hi all,

Some network and trigger cabling in the hall has been installed and used
on a temporary basis without much regard to routing or labeling, which
is understandable. Such phase of activities will end within the next two
weeks. So, on February 1st, we will start removing any cables that are
not properly labeled; routing will be properly done so expect
interruptions. As you know, labeling is geographical (refer to
GlueX-doc-1452). The attached photos illustrate some of the concerns:

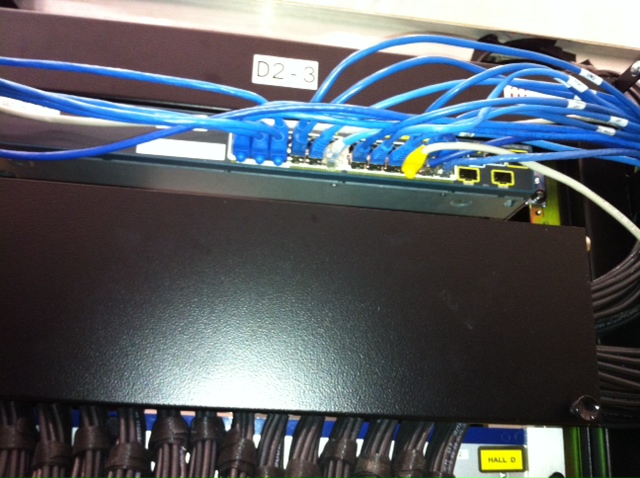

photo1: no labels

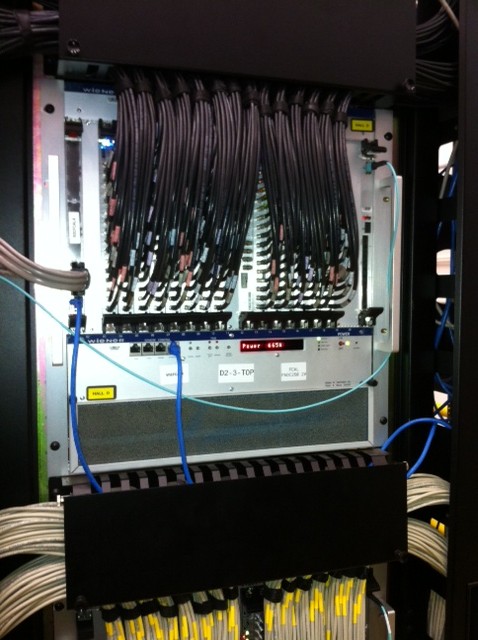

photo2: no labels; network cables (dark blue) should come from the left
side vertical cable manager, not the bottom (horizontal cable manager);
trigger fiber (light blue) needs to be routed via horizontal and
vertical cable managers (use the opening on the right, adjacent, on
vertical cable manager).

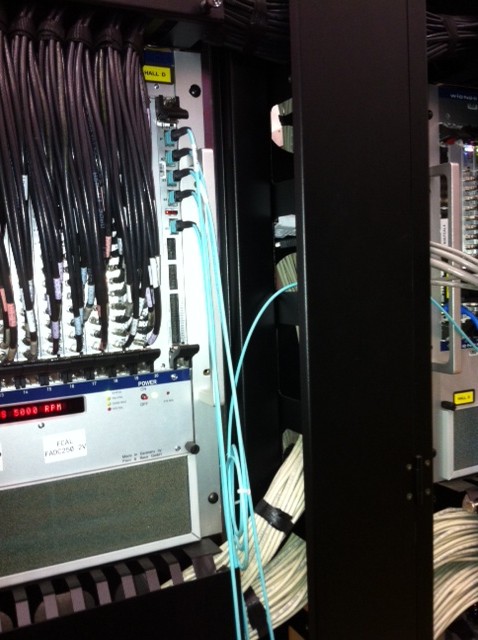

photo3: trigger fibers, again the same issue as above, no labels.

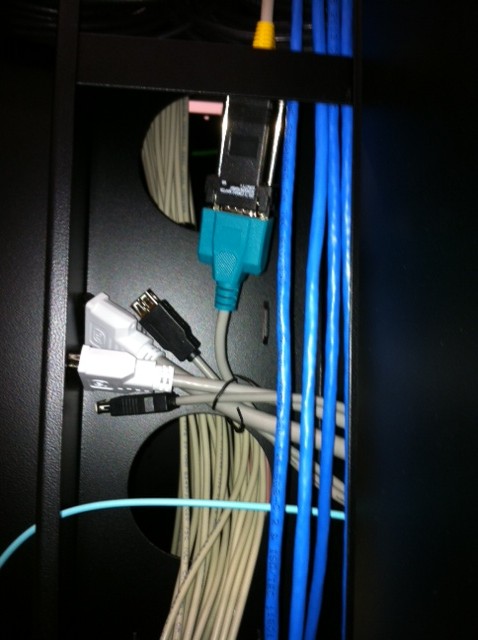

photo4: these unconnected cables (come from ROC, see photo2), located
inside one of the vertical cable managers, present a potential safety
issue and the black wire tie is the icing on the cake.

If you have any questions, please ask. We will help with labeling,
routing if you prefer - just provide a list of labels.

Thanks for your attention and best regards,
Fernando
