Hi Everyone,

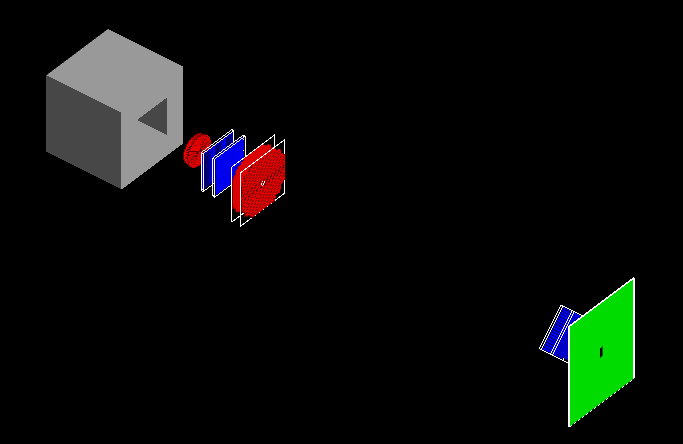

Here's the "scenario 5" flux monitor layout I verbally described in
today's software meeting. The z-axis is exaggerated for ease of
visualisation, but these detectors in nominal positions will be the
first point for my implementation of the flux monitor into the KLF
software. Once implemented, it will be easy to move them from these
nominal positions as our ongoing studies further optimise the layout.

Cheers,

Stuart

PS The grey cube is just our representation of the PS magnet.

--
Dr Stuart Fegan
Postdoctoral Research Associate
School of Physics, Engineering and Technology, room DF03

E-mail: stuart.fegan at york.ac.uk
