Hi Michael,

I just have a comment on your last paragraph:


On 4/12/2016 11:31 AM, Michael Staib wrote:
> Hi Hovanes,
>
> I propose the following for low current alarm values for the CDC. Each
> preamp card should be drawing 0.45 A of current. On all channels there
> are 8 preamp cards connected with the exception of CDC:lv:Gr19 (4
> cards) and CDC:lv:Gr20 (1 card). Current draw of less than 0.44 Amps
> per card probably is the limit we should set.
>
> I would propose a major alarm if the current drops below 3.52A with
> low voltage on for Gr1-Gr18, 1.76 for Gr19, and 0.44 for Gr20. These
> thresholds are rather tight, but will cover the case of a fully
> disconnected card as well as the case of too low a gain on the preamp.
>
> Note that with this limit, CDC:lv:Gr20 would currently be in an alarm
> state. Naomi has noted previously that the gain on the one card
> connected to this channel looks suspiciously low. The voltage needs to
> be slightly increased here once the CDC is back online to bring the
> preamp gain in line with the other channels.

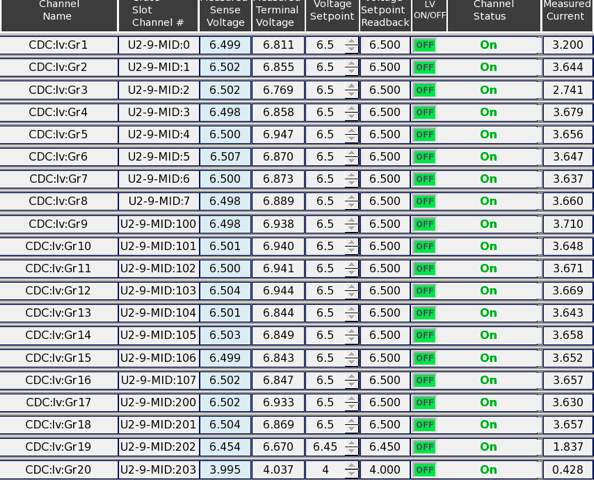

The current shown for this preamp is shown to be 0.428 A, which is about
right. You may try increasing the voltage a bit so the current is
similar to the other preamps or 0.45A. While dong this, please monitor
the gain via the built-in pulser to be sure it has leveled.

Best regards,
Fernando



>
