Hi Neil,



Lets wait a day or two for people to comment.



Thanks, Joe



From: Neil Wilson [mailto:wilsonn at jlab.org]
Sent: Tuesday, January 30, 2018 12:50 PM
To: Joseph Gubeli <gubeli at jlab.org>
Cc: lerftest at jlab.org
Subject: Re: [Lerftest] LERF Gallery Raised Floor



Hi Joe, This is great, I am getting material in. I have a couple of
suggestions to simplify the installation and would like to discuss tomorrow
if we can. Also we can work for this sketch if you want. You have give us
the pertinent information.

Thanks

n





  _____

From: "Joseph Gubeli" <gubeli at jlab.org <mailto:gubeli at jlab.org> >
To: lerftest at jlab.org <mailto:lerftest at jlab.org>
Sent: Tuesday, January 30, 2018 11:05:20 AM
Subject: [Lerftest] LERF Gallery Raised Floor

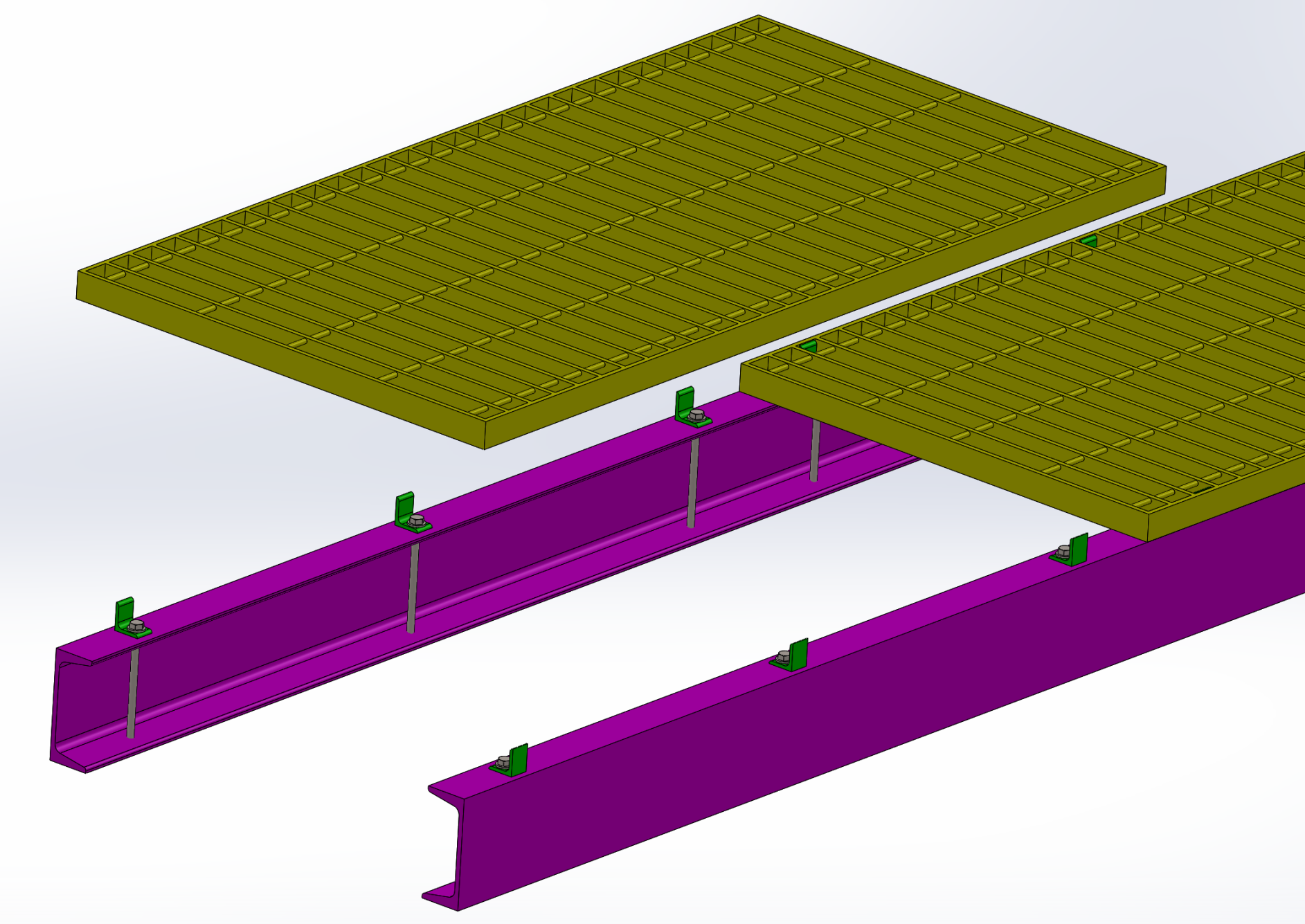

The images below are, in general, what I imaging the raised floor will look
like behind the SSAs. The grating is 1” x 3/16” (18” x ~34”) aluminum with a
safe load of 632 lbs per square foot for a 24” span, our unsupported span is
15”. The channel is 6061 aluminum 4” x 1.58” x 0.18” anchored to the floor
with ¼-20 bolts spaced 18” apart. The “L” brackets will keep the grating
from sliding much. More of this raised floor could be added to extend to
penetrations. Let me know if there are a questions or comments.



Thanks, Joe



Joseph F. Gubeli

Jefferson Lab.

12000 Jefferson Ave.

Newport News, VA 23606

(757) 269-7862 (Office)

(757) 344-4159 (Cell)

 <mailto:gubeli at jlab.org> gubeli at jlab.org
