[Pansophy] SNSPPU-INSP-HOBCB Inspection

[Naeem Huque]

[cid:06a5c654-06fb-4d59-8927-ba0e33e2c5d7]

[cid:67cdd7a4-e2ff-48e6-8532-7e470928d792]

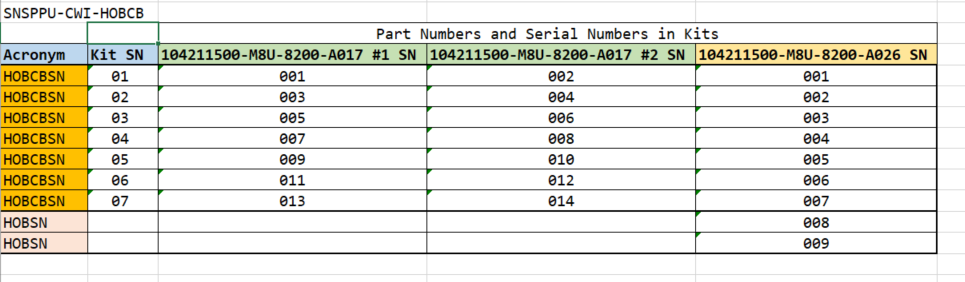

There are 3 bellows to a kit and the photos seem to match exactly the kit list above (taken from the traveler). Three stickers are for the separate bellows, and one sticker is the kit. I don't understand the issue...

Thanks,
Naeem
________________________________
From: Katherine Wilson <kwilson at jlab.org>
Sent: Monday, November 16, 2020 11:54 AM
To: E. Anne McEwen <mcewen at jlab.org>
Cc: Naeem Huque <huque at jlab.org>; Gary Cheng <cheng at jlab.org>; Ed Daly <edaly at jlab.org>; SRF Inventory (srfinv at jlab.org) <srfinv at jlab.org>; SRF Pansophy (pansophy at jlab.org) <pansophy at jlab.org>
Subject: Re: SNSPPU-INSP-HOBCB Inspection

A026 is the con bellows.

> On Nov 16, 2020, at 11:42, E. Anne McEwen <mcewen at jlab.org> wrote:
>
> Hello Naeem & Gary
>
> I went up  to inventory again  and had Calvin open one of the boxes - 2 of the bellows had part numbers that match the traveler you speak of (attached)  , however there is a 3rd bellows with Part No  ending A26, that is not in your traveler
>
> So I asked Calvin to put the parts back in the box until it can all be sorted out - there is a lot of other work we need to get done for C75 & P1 before Thanksgiving
>
> FYI-  Where we have the travelers & dwgs   and the part is not too big , I have been bringing down the first article - so that it is available should there be an opportunity  - but this one I don't think is clear yet
>
> Anne
>
>
> -----Original Message-----
> From: copier at jlab.org <copier at jlab.org>
> Sent: Monday, November 16, 2020 11:30 AM
> To: E. Anne McEwen <mcewen at jlab.org>
> Subject: Xerox Scan
>
> Please open the scanned attachment
>
> Number of Images: 5
> Attachment File Type: PDF
>
> Device Name: cs31
> Device Location: 58    Test Lab    2nd Fl Rm 2206
>
