[Solid_ec] Fwd: layout

Zhiwen Zhao zwzhao at jlab.org
Thu Mar 7 11:17:31 EST 2013


HI, JP and Paul

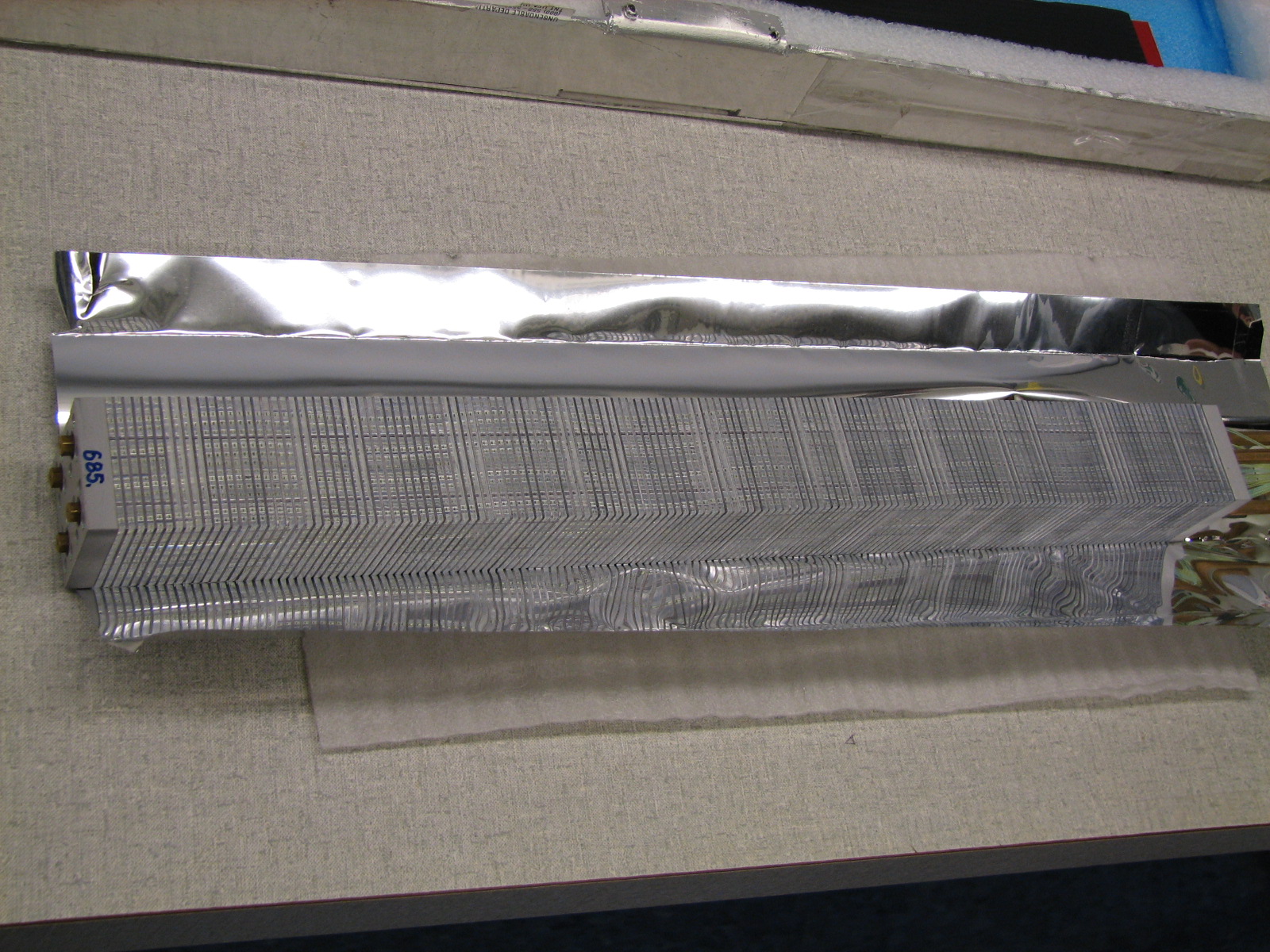

The COMPASS module has a cap at the front as big as the module itself.
see pic.
I thought it's that one which the supporting will be connected to.
So it's actually additional part?

Zhiwen

On 3/7/2013 10:51 AM, J. P. Chen wrote:
> Hi, Zhiwen,
>
> That was my confusion and the initial question.
> The new plot showed clearly that this is not the case.
> 5 cm is the size of the part stick out a little bit probably
> for supporting purpose.
>
> Cheers.
>
> Jian-ping
>
> On 3/7/2013 10:40 AM, Zhiwen Zhao wrote:
>> Hi, Paul
>>
>> Sorry I am still a bit confused.
>> From the plot, I can see the one side of module with wrapping is 6.395cm
>> Do you mean the 5cm is one side of a hexagon module without wrapping?
>> I thought we plan to have it as 6.25cm
>>
>> Zhiwen
>>
>> On 3/6/2013 3:40 PM, Paul E. Reimer wrote:
>>> Hello Jian-ping,
>>>
>>> This drawing should make it clearer.
>>>
>>> Paul
>>>
>>> On 3/6/13 1:47 PM, J. P. Chen wrote:
>>>> Paul,
>>>>
>>>> Thanks for the nice drawings.
>>>> I assume the unit is in cm?
>>>> What is the 5.00 refer to? The size of one side?
>>>>
>>>> Thanks.
>>>>
>>>> Jian-ping
>>>
>>> --
>>> Paul E. Reimer                 +1-630-252-4037 (Argonne Office)
>>> Physics Division Bldg 203      +1-630-252-3903 (Argonne Fax)
>>> 9700 S. Cass Ave.              +1-630-840-5709 (Fermilab)
>>> Argonne, IL  60439             +1-630-344-9207 (Cell)
>>> USAreimer at anl.gov
>>>
>>>
>>>
>>> _______________________________________________
>>> Solid_ec mailing list
>>> Solid_ec at jlab.org
>>> https://mailman.jlab.org/mailman/listinfo/solid_ec
>>>
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: img_1086.jpg
Type: image/jpeg
Size: 660896 bytes
Desc: not available
Url : https://mailman.jlab.org/pipermail/solid_ec/attachments/20130307/f1d5e076/attachment-0001.jpg
