[Dsg-eic_tracker] EIC Beamline Thermal Test Stand Status

[Amrit Yegneswaran]

marc/george
good work
why aren't you sending these progress reports to the mailing list
if i've said it once etc. etc.
i'm certain rolf is interested in knowing what we are doing

have a nice evening
amrit
________________________________
From: Marc Mcmullen <mcmullen at jlab.org>
Sent: Thursday, December 8, 2022 4:26 PM
To: George Jacobs <jacobsg at jlab.org>; Amrit Yegneswaran <yeg at jlab.org>; Brian Eng <beng at jlab.org>
Cc: dsg-internal <dsg-internal at jlab.org>
Subject: Re: EIC Beamline Thermal Test Stand Status

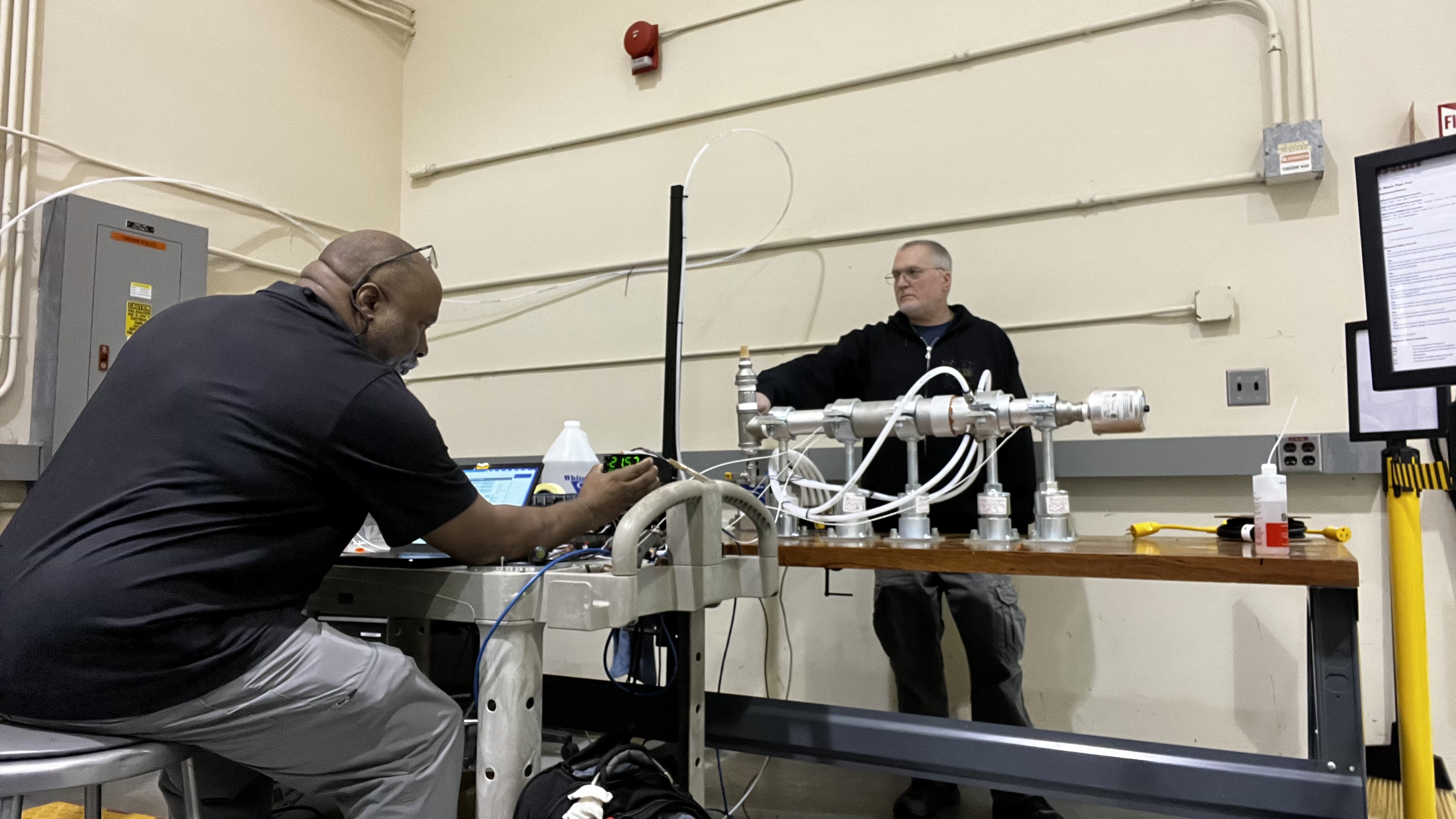

We have completed the airflow and leak tests using the compressed air and a mass flow controller and Snoop.

Still have DAQ and RTD logging software to complete in addition to the list George gave.


[image/jpeg]
________________________________
From: George Jacobs <jacobsg at jlab.org>
Sent: Thursday, December 8, 2022 3:12 PM
To: Amrit Yegneswaran <yeg at jlab.org>; Brian Eng <beng at jlab.org>; Marc Mcmullen <mcmullen at jlab.org>
Cc: dsg-internal <dsg-internal at jlab.org>
Subject: EIC Beamline Thermal Test Stand Status

Remaining steps before the thermal test:
1 - Attach power cord
2 - Fill with oil
3 - Test airflow and check for leaks
4 - Test heater operation
5 - Attach the insulation

Currently, there are 4 RTDs.
A - Inside of outer pipe 4" from end
B - Inside of outer pipe 4" from end rotated ~60 degrees from A (redundant)
C - Inside of outer pipe close to the air pipe
D - Inner Pipe


--
George Jacobs
Jefferson Lab (TJNAF)
STE 12
12000 Jefferson Ave.
Newport News, VA 23606
(office) 757-269-7021<tel:757-269-7021>
(email) jacobsg at jlab.org
(url) https://userweb.jlab.org/~jacobsg
