Hi Rolf,

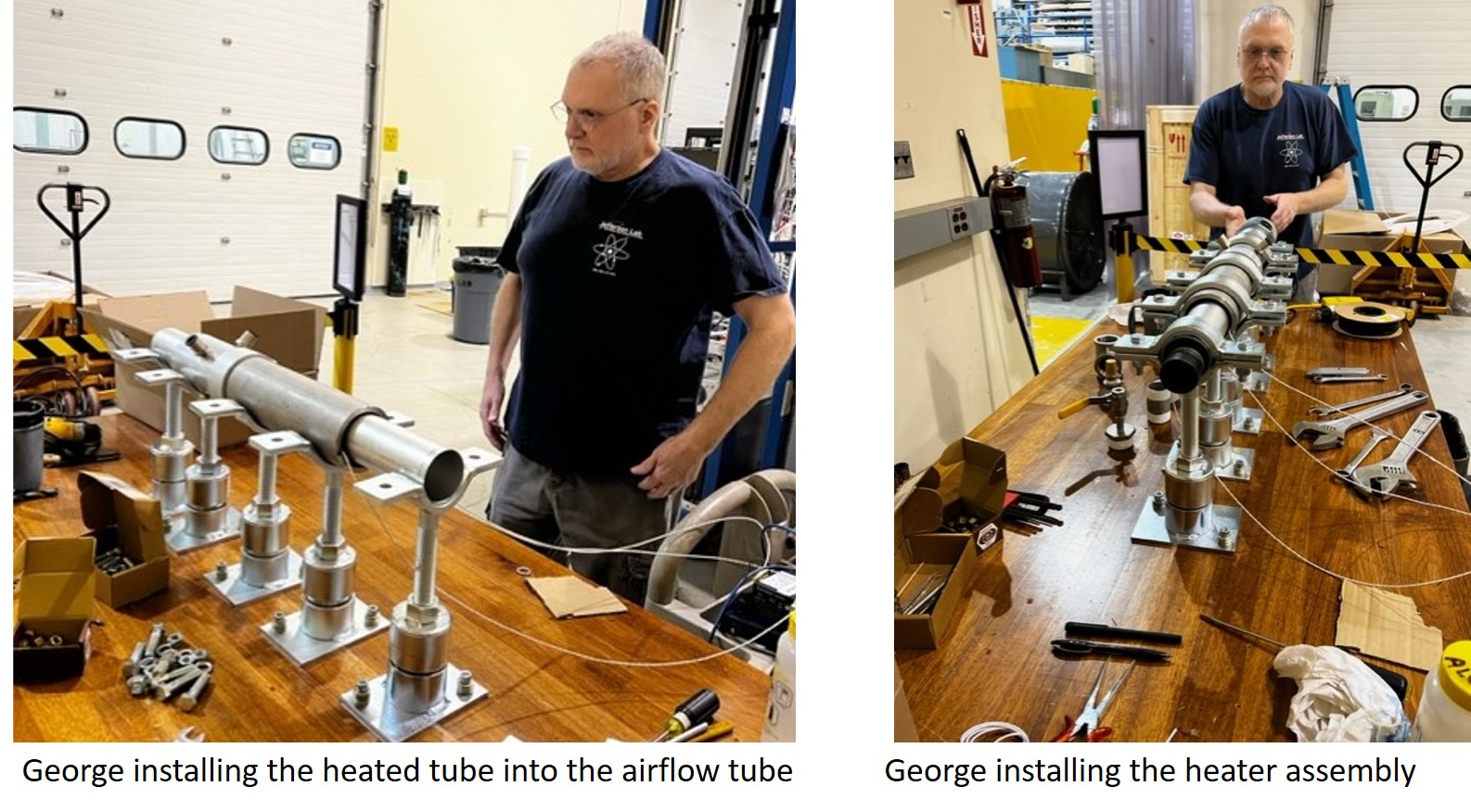

Today George completed the assembly of the beam line mock up. He also connected the 1/2" gas lines to the fittings on the outer airflow pipe.
 [cid:a90a99d0-e0b5-4d51-b862-9c5e3f271431]

 I connected to the MKS 250 (liter per minute) mass flow controller with the controls software I am developing for the test stand.

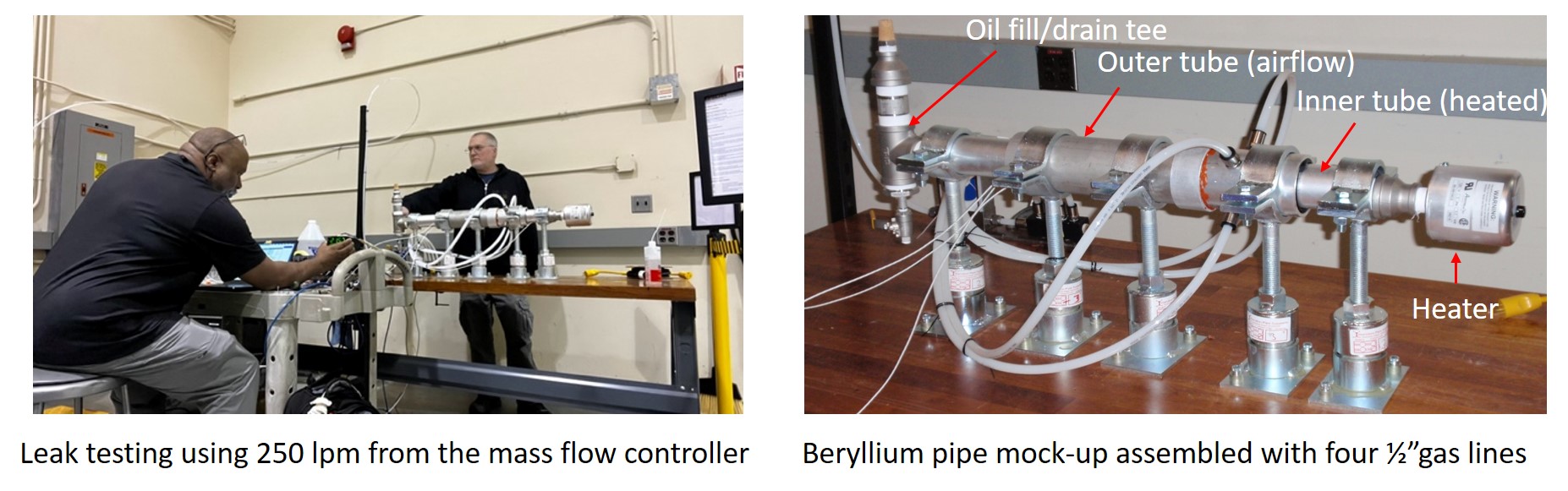

After George inserted the heating pipe and immersion heater, for fit, I  ran 250 lpm through the system as George performed a successful leak test.

[cid:f8cf2821-acf2-4d2c-862b-74c15f40f834]
Stay tuned for more updates as we assemble the heater assembly (immersion heater, oil tube, and fittings), complete and test daq and data logging for the temperature sensors, and prepare for an initial test of the system.

Regards,
Marc
