[Dsg-halla_ecal] ECal controls update

[Marc Mcmullen]

Hi,

DSG has completed the latest update for the ECal controls which includes the following improvements:


  *   Configuration file for the PID settings

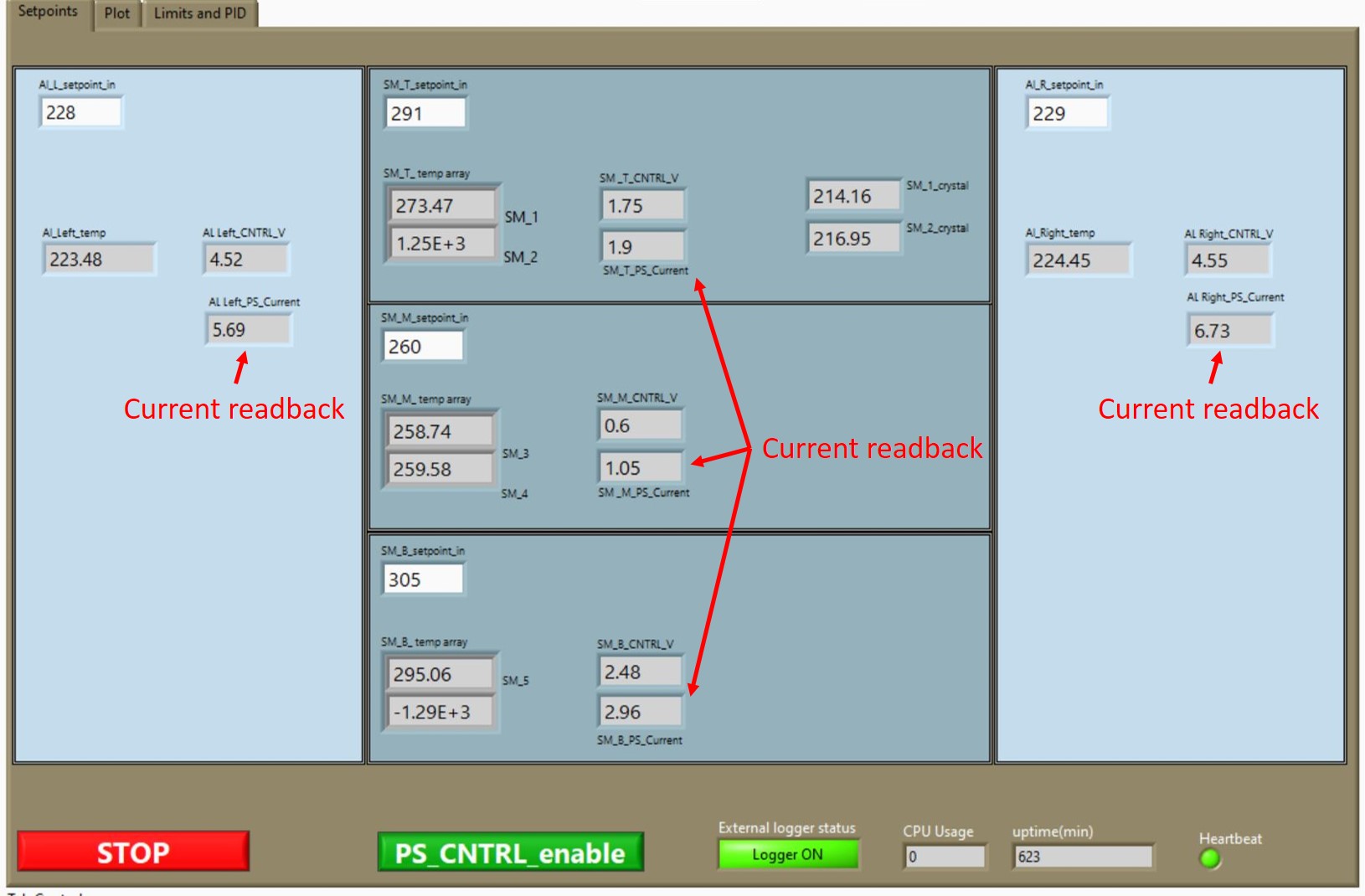

  *   Current monitoring for each heater channel (5 channels)
                            [cid:c9d6dc7a-c489-4fef-94d4-88bea41c42fc]
  *   Current monitoring display for the GUI
[cid:9c825458-b050-4127-9112-41d0275cb3ad]

The software is currently running as a Real-Time application on the cRIO. Should the software stop running the Watchdog software will reboot it to a safe state, with all heaters off. But the setpoints and PID settings will return.

DSG will monitor the system until it is shutdown and moved to Hall A.
