[Dsg-halla_ecal] Pics from the relay box

[Marc Mcmullen]

Hi Amrit,

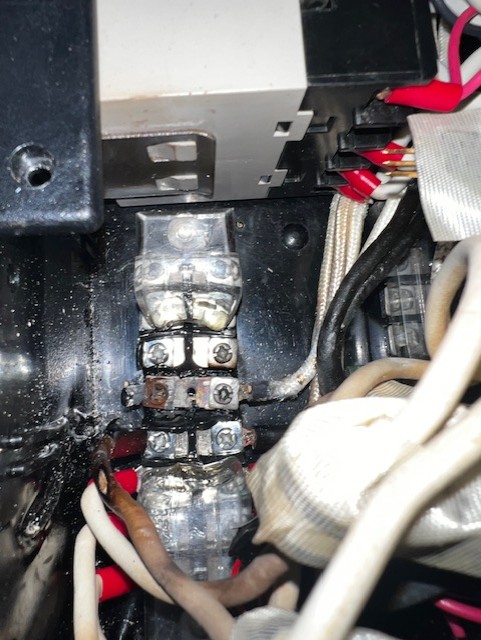

I investigated the issue with the Aluminum right channel. The failure was in the relay box. It looks like the Aluminum right channel heated up at the fork connector and broke away.

There was enough heat to melt and burn the nearby plastic and cable jackets.


I am contacting EH&S to inform them of the situation.



Marc
