[Dsg-halla_ecal] pressure sensors for cooling volume

[Donald Jones]

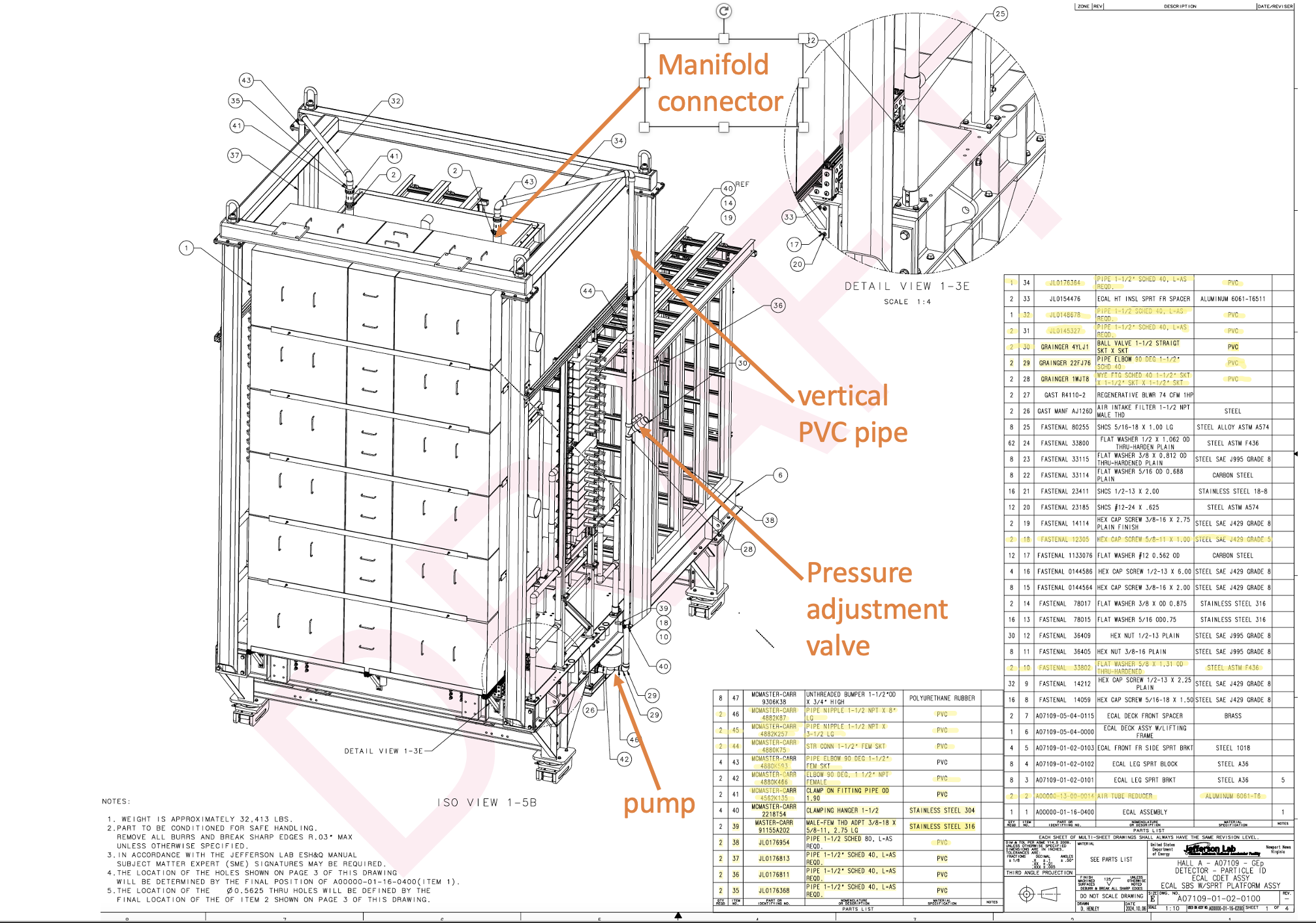

I planned to insert a pressure gauge somewhere into the vertical pipe between the pump and manifold but your gauge could co in there anywhere.

[cid:ded82ade-0fe5-4a2d-9533-6caf62532a9d]


Donald Jones
Hall A/C Staff Scientist
Jefferson Lab
Newport News, VA
________________________________
From: Dsg-halla_ecal <dsg-halla_ecal-bounces at jlab.org> on behalf of Marc Mcmullen via Dsg-halla_ecal <dsg-halla_ecal at jlab.org>
Sent: Thursday, November 14, 2024 10:36 AM
To: dsg-halla_ecal at jlab.org <dsg-halla_ecal at jlab.org>
Subject: [Dsg-halla_ecal] pressure sensors for cooling volume

Hi Don,

Do you have a drawing or diagram of the cooling volume and system so we can give it a once over. It will help us determine the best sensor for the task.

Marc
