[Dsg-halla_gem] BigBite GEM gas monitoring Channel 03

[Marc Mcmullen]

Hi Jack,

The next time there is a scheduled opening I need to check out Ch.03 on the BigBite gas distribution.

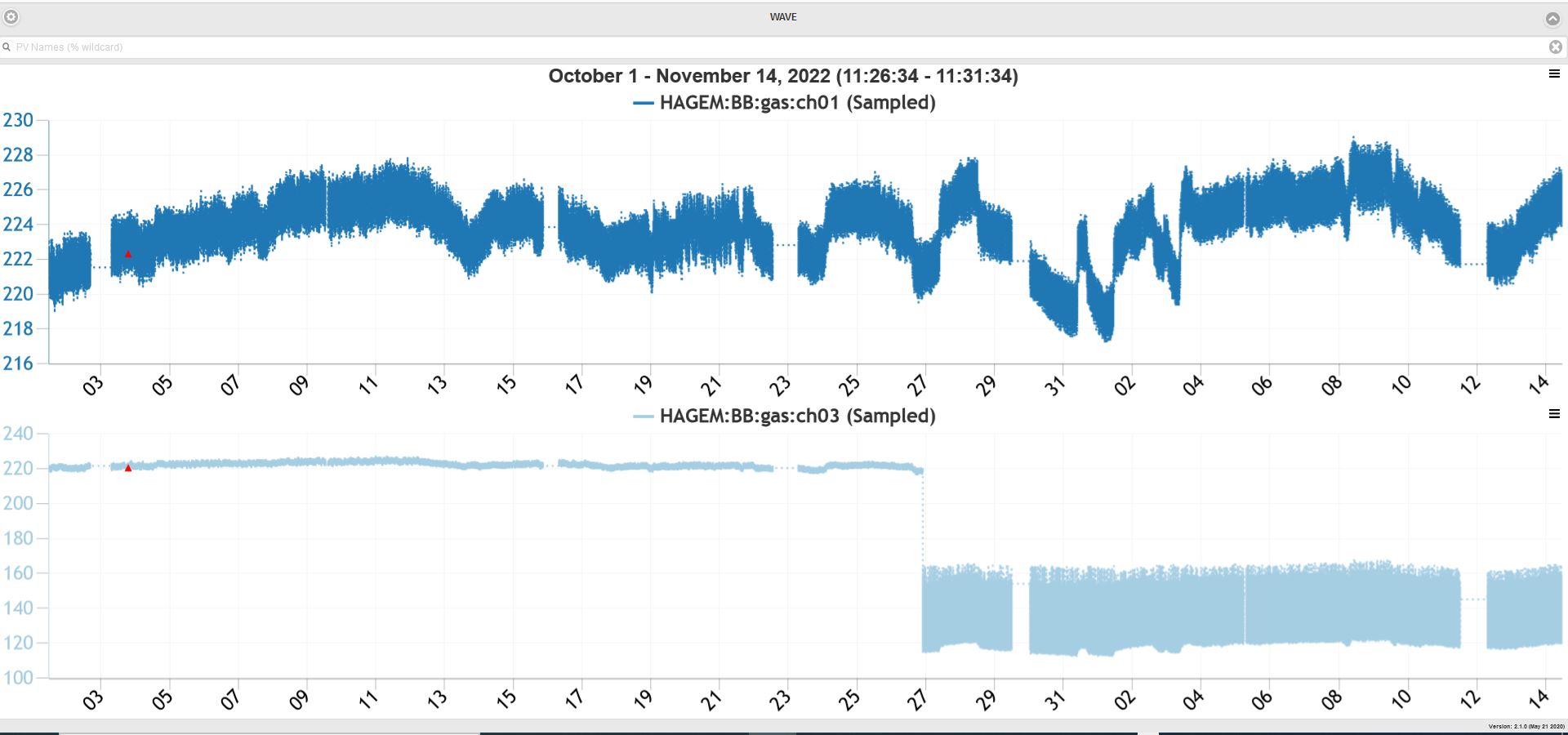

Since 10/27 the reading has a band of about 30 sccm. Compared to Ch.01, the band is closer to 1 sccm (normal).

We will use that time to determine where the problem is along the flow path.

Regards,
Marc



[cid:e2024504-a59b-461f-b2b6-cceb04753d99]
