Hello everyone,

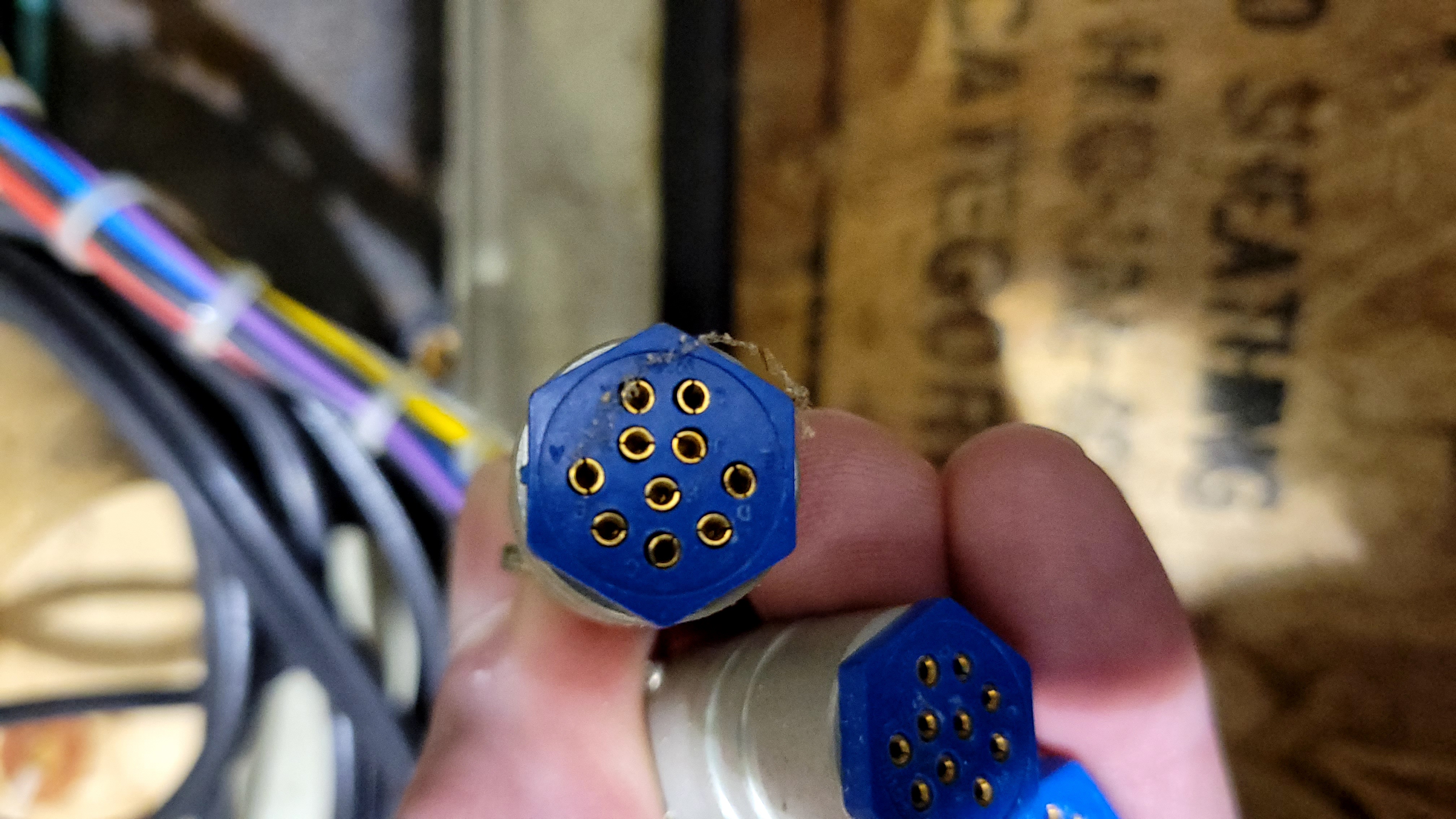

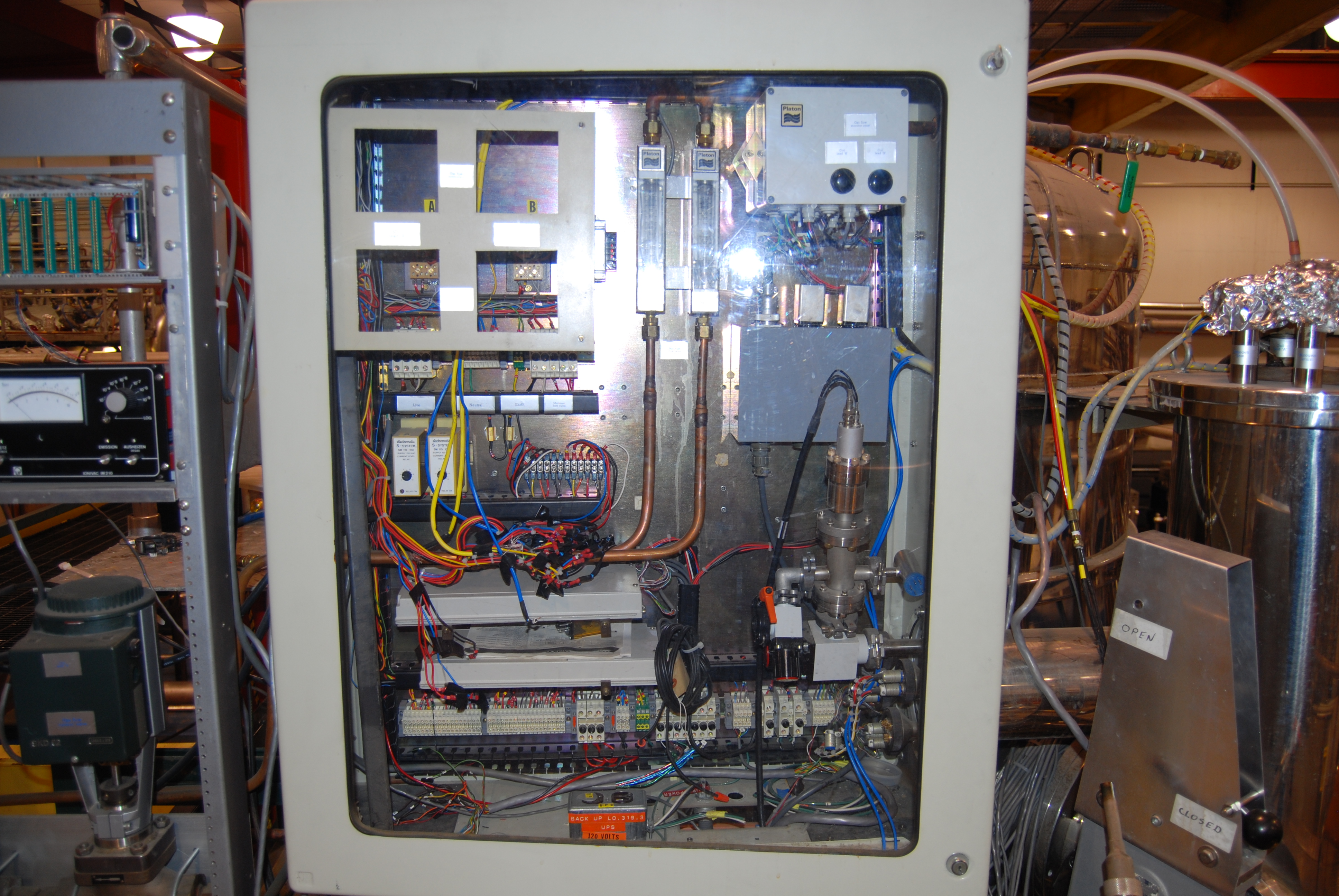

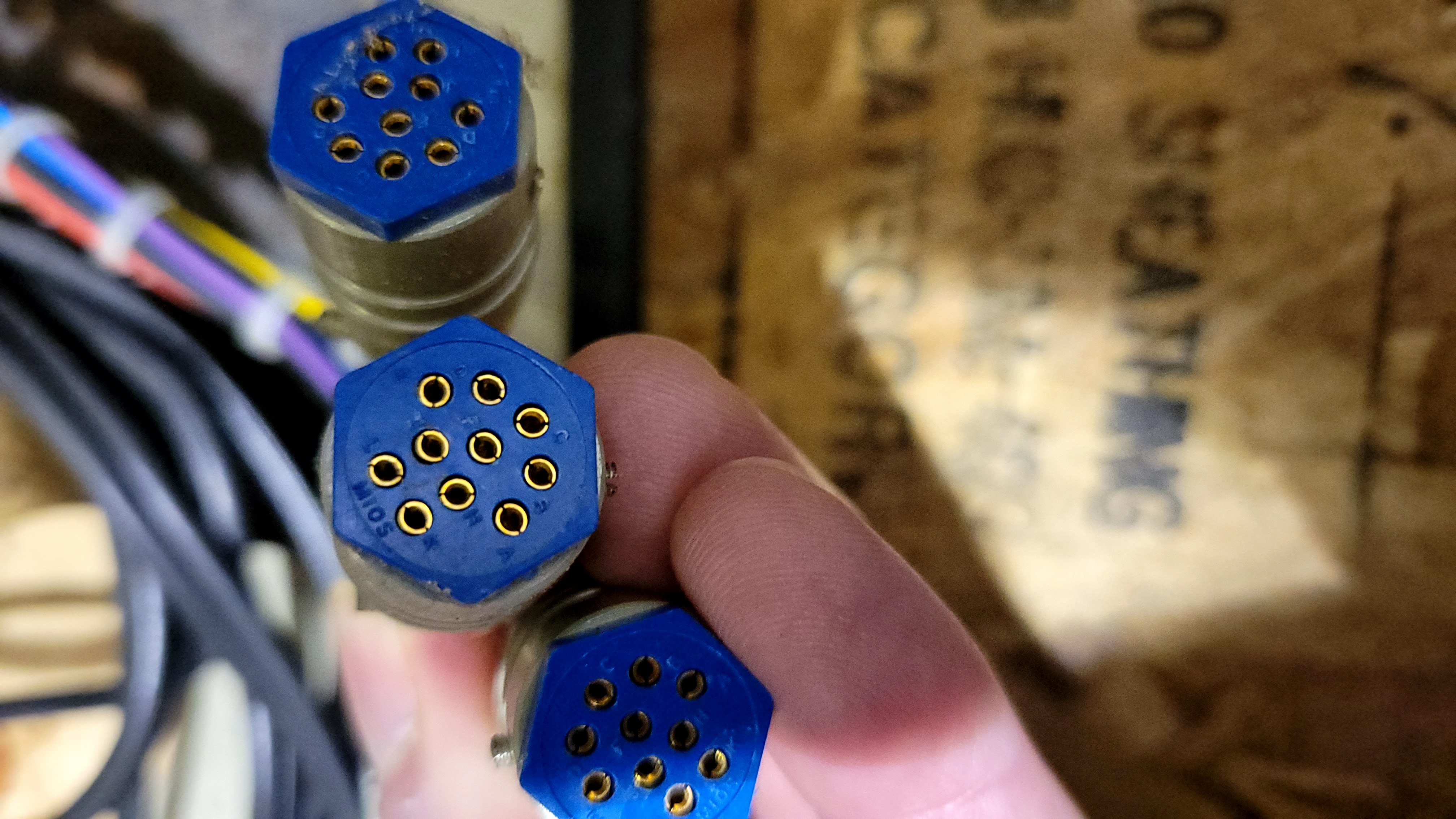

Attached are some pictures and other information for the connectors related to the service turret and loadcells. The 10-pin connectors for the end of the turret reside in the cabinet pictured.  This cabinet should be moved to the test lab soon.  The connectors can be reused as needed and they are wired into a terminal block.  The loadcell has a standard connector listed on the spec sheet attached.  The existing connectors likely reside on the side of the magnet but I have not verified this.  I thought I had a picture of the load cell but cannot locate it in my folders.  I will be at the lab next week and will pull one out of the storage crate and pass along the status.

Cheers,

Whit

________________________________
From: Dsg-halla_magnets <dsg-halla_magnets-bounces at jlab.org> on behalf of Pablo Campero Rojas <campero at jlab.org>
Sent: Thursday, January 20, 2022 3:18 PM
To: dsg-halla_magnets at jlab.org <dsg-halla_magnets at jlab.org>
Cc: Patrizia Rossi <rossi at jlab.org>
Subject: [Dsg-halla_magnets] 2022-01-19 DSG-Hall A SoLID Magnet Controls meeting minutes

Hello,

The minutes for our SoLID Magnet Controls meeting was posted.

Here is the link:January 19, 2022 DSG- Hall A SoLID Magnet Controls meeting minutes<https://www.jlab.org/div_dept/physics_division/dsg/meeting_minutes/Hall_A/2022-01-19%20Hall%20A%20SoLID%20Magnet%20Control%20Systems%20meeting%20minutes.pdf>


Regards,
Pablo
