Hi Bob,
in agreement with Marc suggestion, I send you the updated files of the beams necessary to kept the RICH on the trolley.

Have been modified the position of the interface holes with the “Strongback Interface parts”.

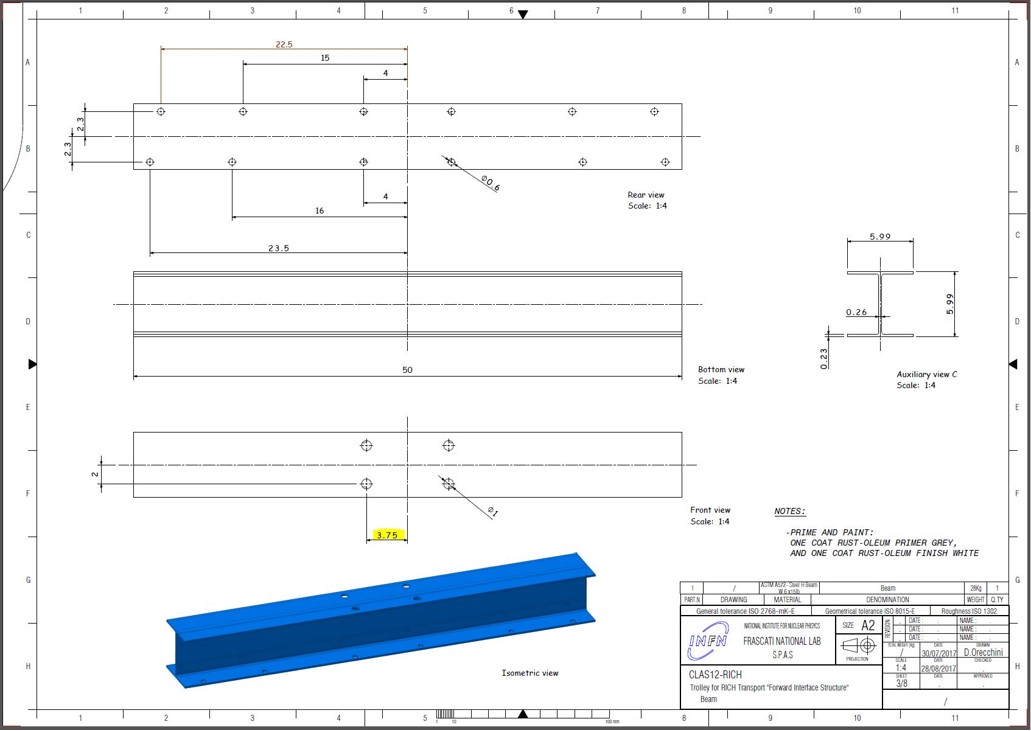

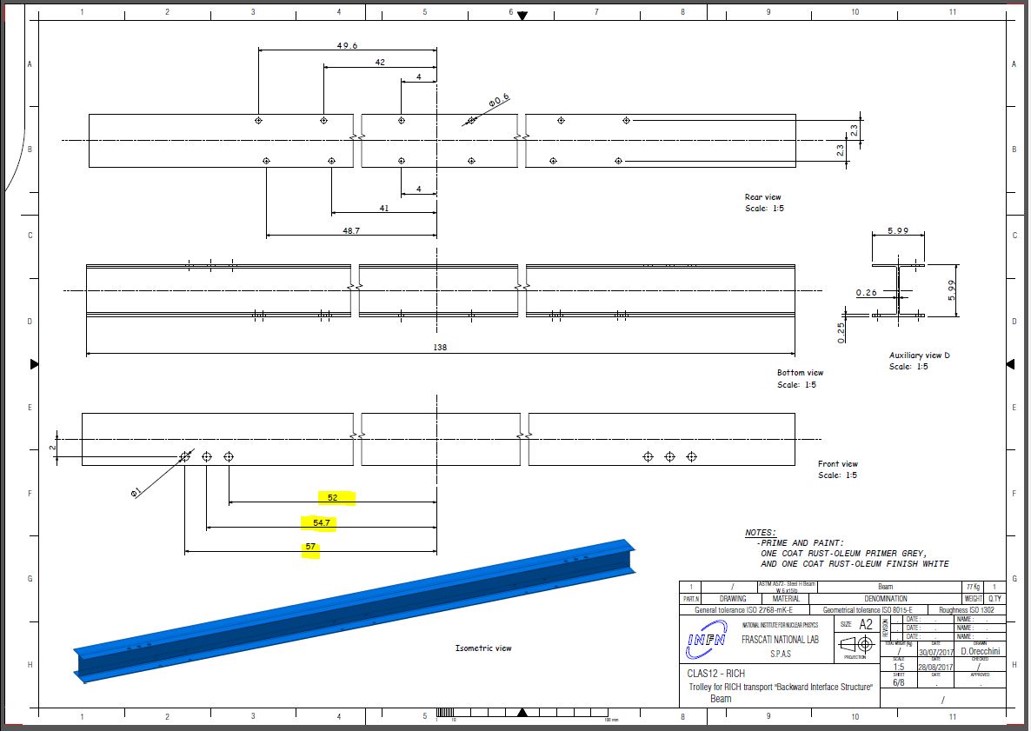

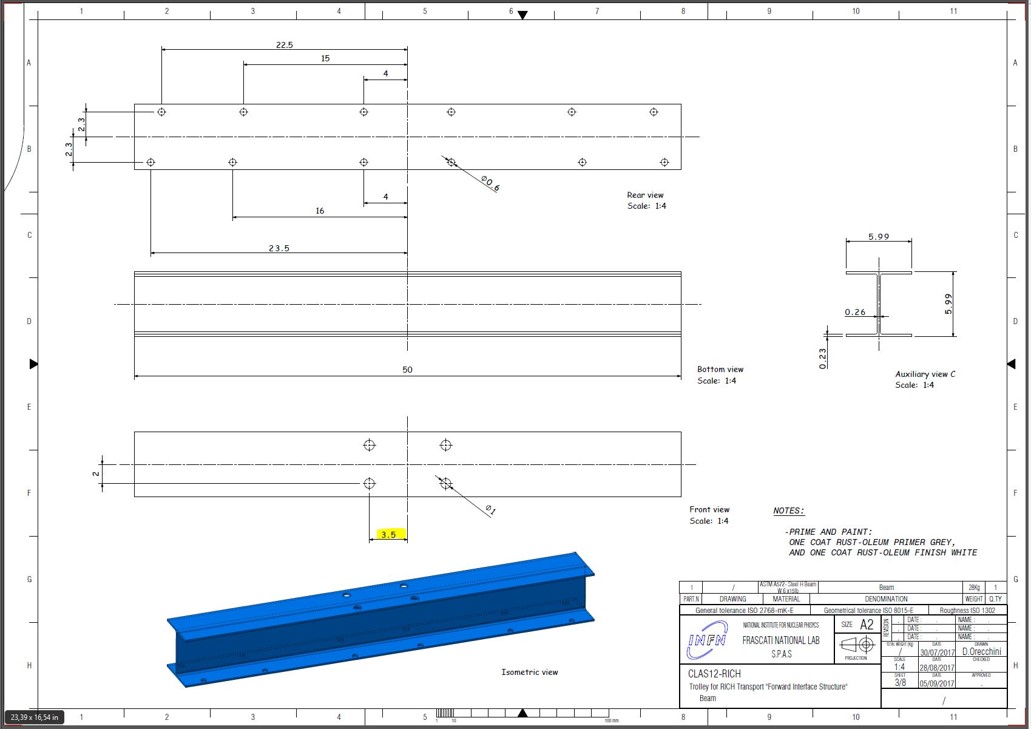

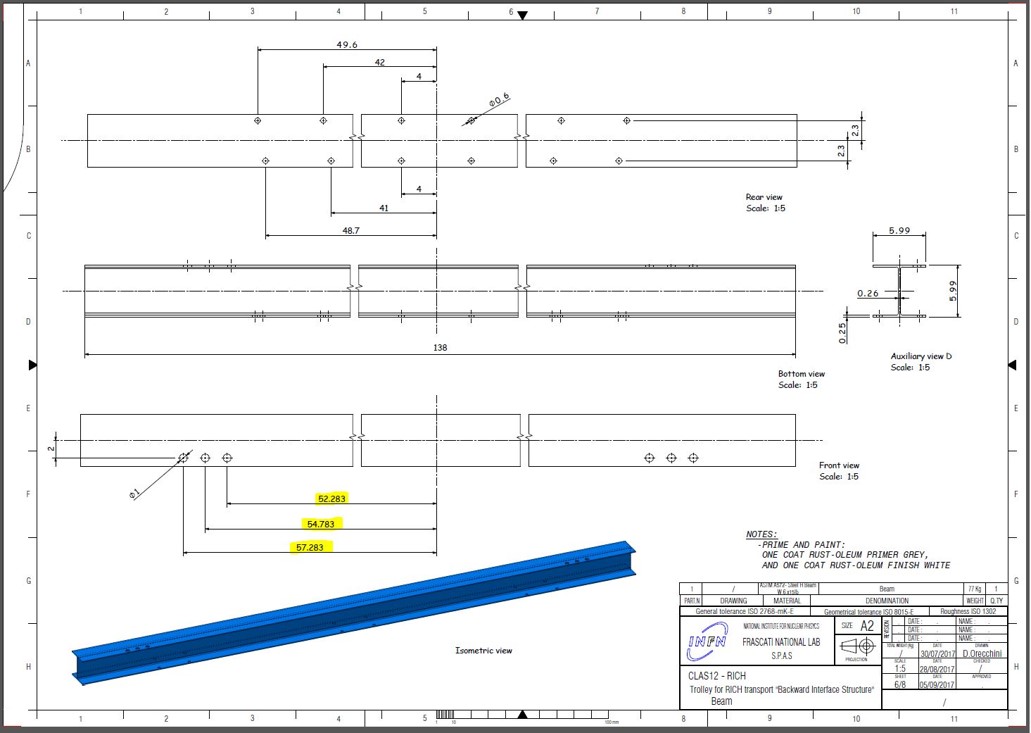

On the attached pictures are highlighted in yellow the old dimension (picture: before update) and the new dimension (picture: after update) for both beams, “Forward” dawing 3_8 and “backward”  drawing 6_8.

Obviously, also the related assembly drawings have been updated (drawings: 2_8 / 5_8).

Inviato da Posta per Windows 10


Da: Marc McMullen
Inviato: mercoledì 6 settembre 2017 14:33
A: Dario Orecchini; dsg-rich at jlab.org
Cc: Bob Miller
Oggetto: Re: Drawings update

Hi Dario,
Please contact Bob Miller and discuss the changes you made to the drawings. As the senior engineer in Hall B, Bob needs to review the changes before we can have GandR proceed with the Trolley Parts.
Thanks,
Marc

On 9/5/2017 5:57 AM, Dario Orecchini wrote:
Hi Marc,
unfortunately after some further checking, I found mistakes in the position of the interface holes to be done on the beams necessary to kept the RICH on the trolley.
We are speaking of few millimeters but enough to give problems.
Hoping this components are not yet completed, I send you the update drawings and I ask you to transmit them to the company as soon as is possible.

The drawings are:
    2_8 Forward RICH-Trolley Anchoring System_Update 05-09-2017.pdf
    3_8 Forward RICH-Trolley Anchoring System_Update 05-09-2017.pdf
    5_8 Backward RICH-Trolley Anchoring System_Update 05-09-2017.pdf
    6_8 Backward RICH-Trolley Anchoring System_Update 05-09-2017.pdf

Sorry again and thanks
              Dario
