[Dsg-hallc_controls] Current regulation loop

[Amanda Hoebel]

Hi Mike,

I have attached PDFs and images of the changes to the HMS and SHMS programs.

For the HMS PDFs of the ladder logic, rungs 0-5 are new and replaced rungs 0-1 from the previous version. The JPEGs show screenshots of sections that were added to the function block diagrams Q1, Q2, and Q3.

For the SHMS Q2, Q3, and HB, rungs 2-7 are new and replaced rungs 2-3 from the previous versions. For Q1, rungs 3-8 are new and replaced rungs 3-4. JPEGs are attached to show additions to the Q1, Q2, Q3, and HB function block diagrams.

Both programs HMS_current_loop.ACD and SHMS_current_loop.ACD are located at M:\dsg-hallc_controls.

Regards,
Amanda


From: "Mike Fowler" <fowler at jlab.org>
To: "Amanda Hoebel" <amandah at jlab.org>
Cc: "dsg-hallc controls" <dsg-hallc_controls at jlab.org>
Sent: Saturday, August 11, 2018 9:26:56 AM
Subject: Re: [Dsg-hallc_controls] Current regulation loop

Please send a PDF printout of the pages, ladder & function block, where the changes have been made. Thank you, Mike

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://mailman.jlab.org/pipermail/dsg-hallc_controls/attachments/20180815/587d13bf/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: HMS Q1.JPG
Type: image/jpeg
Size: 474898 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/dsg-hallc_controls/attachments/20180815/587d13bf/attachment-0007.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: HMS Q2.JPG
Type: image/jpeg
Size: 484883 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/dsg-hallc_controls/attachments/20180815/587d13bf/attachment-0008.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: HMS Q3.JPG
Type: image/jpeg
Size: 480265 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/dsg-hallc_controls/attachments/20180815/587d13bf/attachment-0009.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: SHMS HB.JPG
Type: image/jpeg
Size: 472157 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/dsg-hallc_controls/attachments/20180815/587d13bf/attachment-0010.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

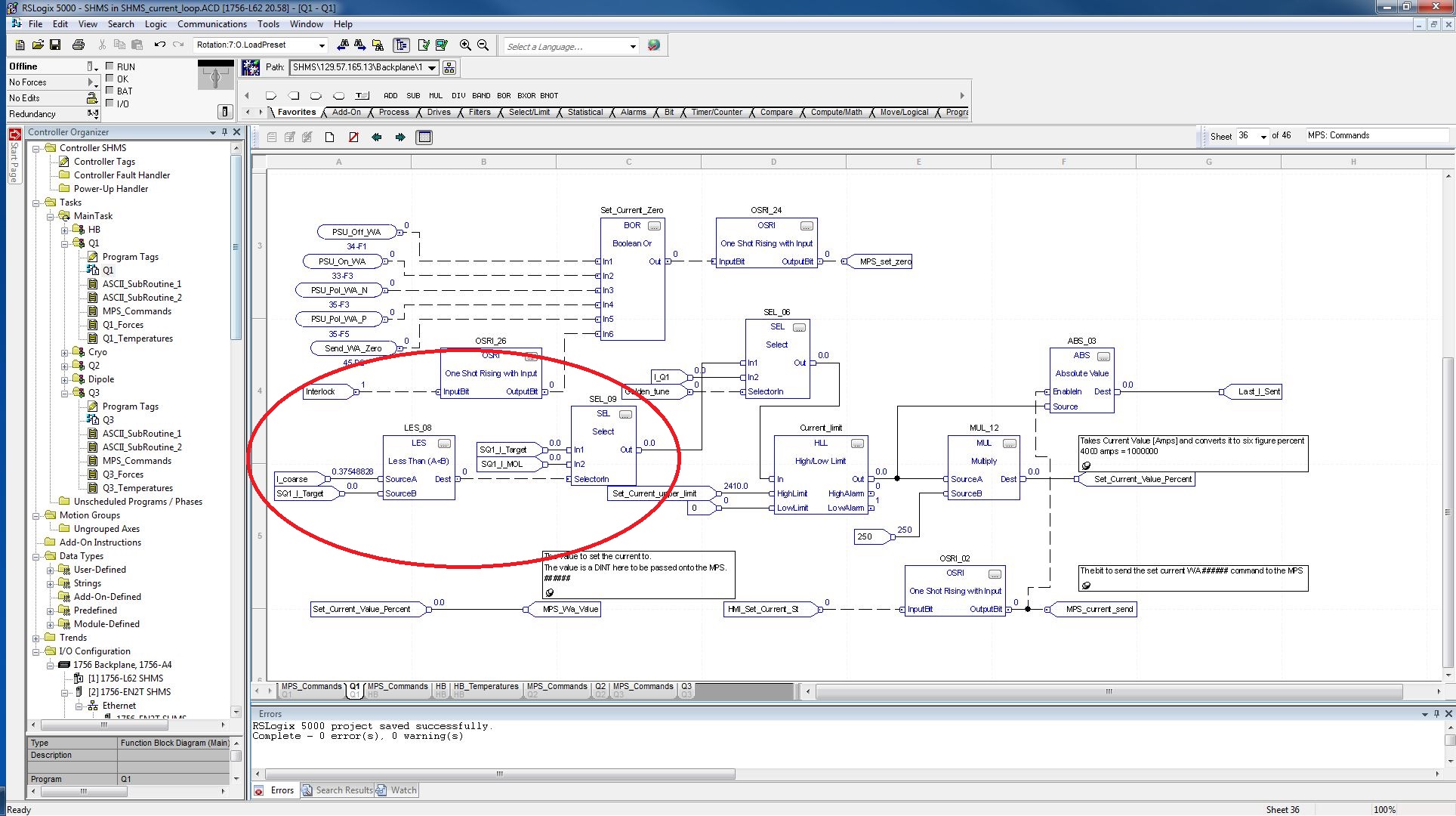

Name: SHMS Q1.JPG
