Hi Krister Etal,
On the buffer dewar we also use a temperature signal to help to keep the
line cold. I do not know if the IBC has a temperature signal in the flow
path of the 4k pot that might be used. but if it does we can set up a
cascading PID to keep the supply valve minimum position high enough to
assure the u-tube stays cold.
I'm happy to meet with you, Andy and Chris to implement this feature if
there is a signal that can be used.

Dave


On 4/24/2012 5:05 PM, Krister Bruhwel wrote:
> Hello,
>
> Chris Bass and I installed the hardwired HDice He level signal today.
>
> Here is the EPICS signal: "hdice:mainbathLL"
>

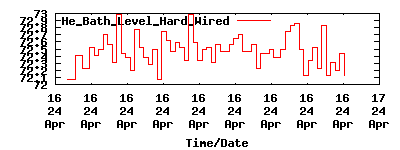

> I have put into the time histories under the "HD Ice IBC" group as "He
> Bath Level Hard Wired" and its updating as it should thus far.
>
> Let me know about alarms and whatever else one might want with this
> signal.
>
>
>
> clasrun at clon01:clasrun>caget hdice:mainbathLL
> hdice:mainbathLL               72.6482
>
>
> Regards,
> Krister
>
>
> _______________________________________________
> Hallb-engineering mailing list
> Hallb-engineering at jlab.org
> https://mailman.jlab.org/mailman/listinfo/hallb-engineering
