[Halld-cal] Fwd: bcal times from mcsmear are being cut off at t=0

[Richard Jones]

[resending using attachments]

Dear Elton, Zisis,

I am going systematically through each of the subsystems and looking at raw
hits distributions coming out of hdgeant4 / mcsmear, comparing them with
hdgeant / mcsmear and I ran into this surprise that the TDC time
distributions for the bcal coming out of mcsmear seem to be getting chopped
off at t=0. The effect seems to be present at both the upstream and
downstream end (end=0 and end=1, I don't remember which is which. I have
included distributions for the fADC pulse_time values as well for
comparison. These are not being cut off, indicating that the problem is in
mcsmear rather than in Geant. I can reproduce this effect in the hdgeant4
output as well, but I suspect that it is a bug. Unless we are no using the
tdc outputs right now??

A question for you both: would you prefer that this message be posted in
the HallD electronic logbook, or simply posted to the email list?

-Richard Jones
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://mailman.jlab.org/pipermail/halld-cal/attachments/20170110/57e4f397/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: bcalTDCDigiHit_time.png
Type: image/png
Size: 9913 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/halld-cal/attachments/20170110/57e4f397/attachment-0004.png>
-------------- next part --------------
A non-text attachment was scrubbed...

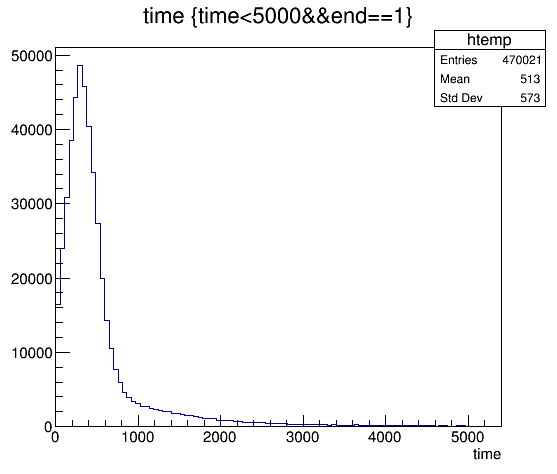

Name: bcalTDCDigiHit_time2.png
Type: image/png
Size: 8968 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/halld-cal/attachments/20170110/57e4f397/attachment-0005.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: bcalfADCDigiHit_pulse_time.png
Type: image/png
Size: 12579 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/halld-cal/attachments/20170110/57e4f397/attachment-0006.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: bcalfADCDigiHit_pulse_time2.png
Type: image/png
Size: 10150 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/halld-cal/attachments/20170110/57e4f397/attachment-0007.png>
