[Halld-pid-upgrade] mirror reflectivity

[Maria Patsyuk]

Hi,

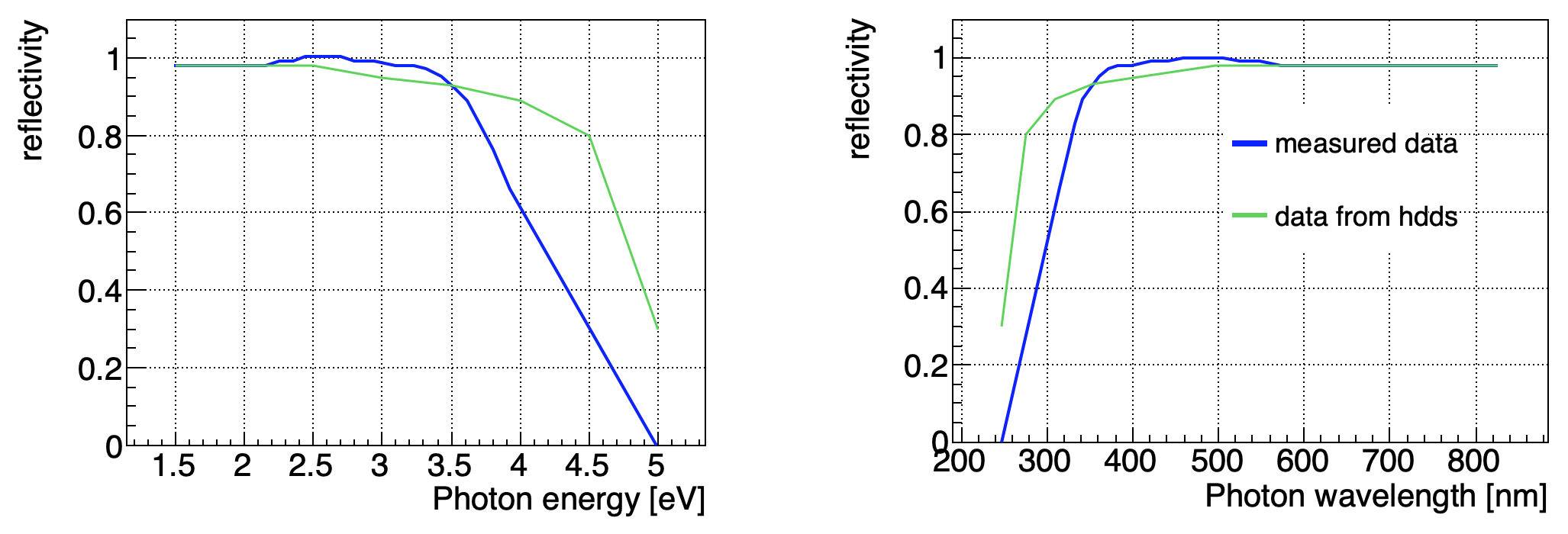

attached is the mirror reflectivity I’m going to put in the geometry and the data present in hdds currently (for comparison).
John was able to measure the mirror reflectivity in the range [325, 600] nm. I extrapolated linearly the reflectivity in [250, 320] nm and above 600 nm to have the same wavelength range as it was for the current reflectivity.

Best regards,
Maria

[cid:4157656D-7CFD-4DAA-B5CE-3B5018872F53]
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://mailman.jlab.org/pipermail/halld-pid-upgrade/attachments/20190213/9012eccb/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screen Shot 2019-02-13 at 4.40.44 PM.png
Type: image/png
Size: 142085 bytes
Desc: Screen Shot 2019-02-13 at 4.40.44 PM.png
URL: <https://mailman.jlab.org/pipermail/halld-pid-upgrade/attachments/20190213/9012eccb/attachment-0001.png>
