Hi,

I pushed the new reflectivity.
As a side effect, now the far-end mirror on each radiator has the reflectivity, which John measured.
Maybe we should keep the initial reflectivity for the far end mirror?

Best regards,
Maria

On Feb 13, 2019, at 4:44 PM, Maria Patsyuk <mpatsyuk at mit.edu<mailto:mpatsyuk at mit.edu>> wrote:

Hi,

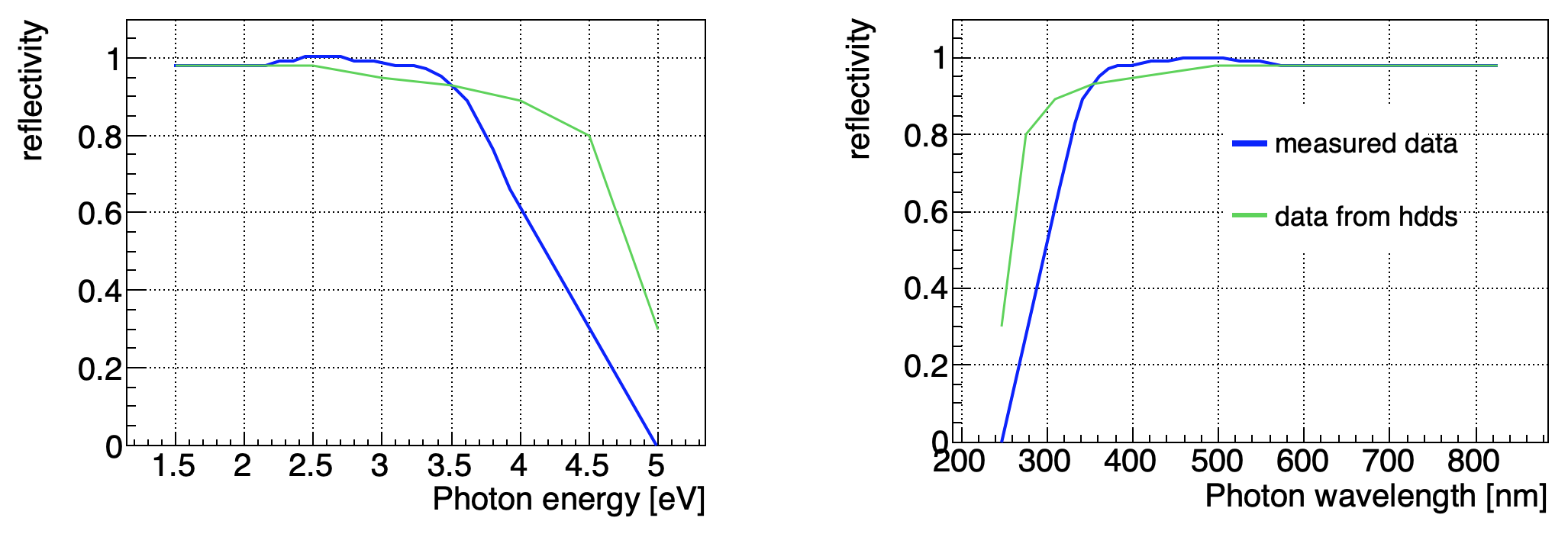

attached is the mirror reflectivity I’m going to put in the geometry and the data present in hdds currently (for comparison).
John was able to measure the mirror reflectivity in the range [325, 600] nm. I extrapolated linearly the reflectivity in [250, 320] nm and above 600 nm to have the same wavelength range as it was for the current reflectivity.

Best regards,
Maria

[cid:4157656D-7CFD-4DAA-B5CE-3B5018872F53]
