[Hps-analysis] Moller gap solved

[Bradley T Yale]

I think the mystery of the Moller gap has finally been solved.


Looking at the reconstructed Moller events generated with the fixed cross section, not much was changed,

so I explicitly forced the condition such that if one Moller had track E > Ebeam/2, then the other had to have E < Ebeam/2, and vice versa.


Applying this to both MC and Data, along with modest ESum and phi cuts, gives the attached momentum plots.

The other distributions match much better too, particularly track position at the ECal, which now shows the gap in data as well. The higher-energy bias for hits in the bottom half of the ECal can be seen from the asymmetry in where the electrons hit. Loosening the MC cuts a little (only cutting ESum) starts to close the gap and make it look even more like the data plots.


So in summary, the gap is likely due to electrons always being cleanly paired on opposite halves of Ebeam/2 in MC, but not necessarily in data. The gap is also apparent in background MC without forcing this condition, suggesting that the MC is too "clean".

-Brad

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://mailman.jlab.org/pipermail/hps-analysis/attachments/20160520/54948f18/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

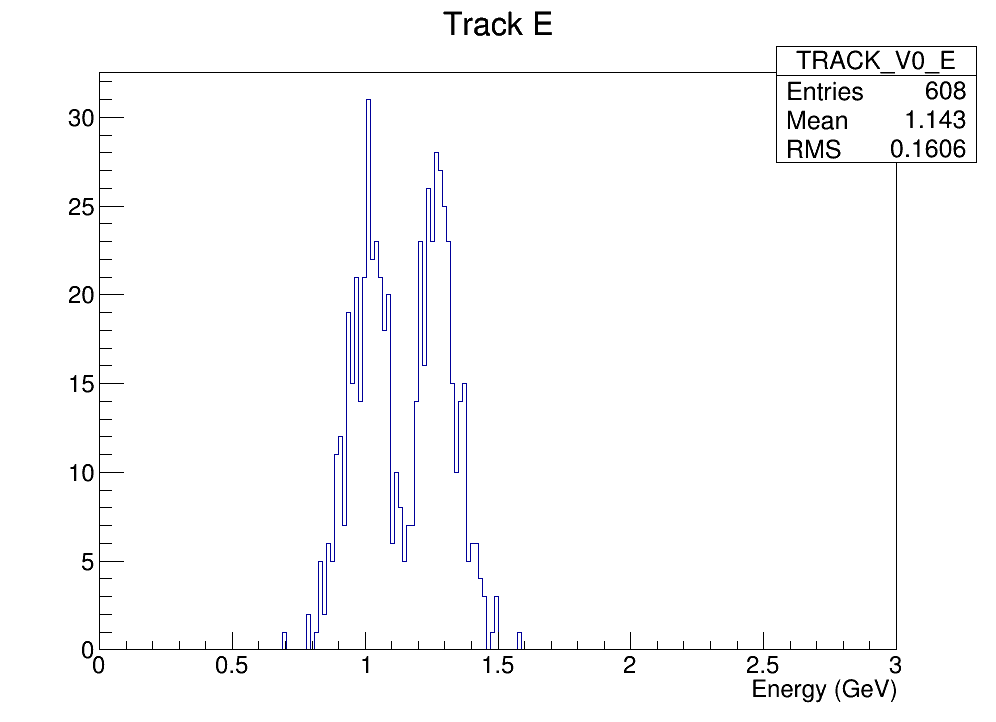

Name: MC_TRACK_Energy.png
Type: image/png
Size: 14230 bytes
Desc: MC_TRACK_Energy.png
URL: <https://mailman.jlab.org/pipermail/hps-analysis/attachments/20160520/54948f18/attachment-0006.png>
-------------- next part --------------
A non-text attachment was scrubbed...

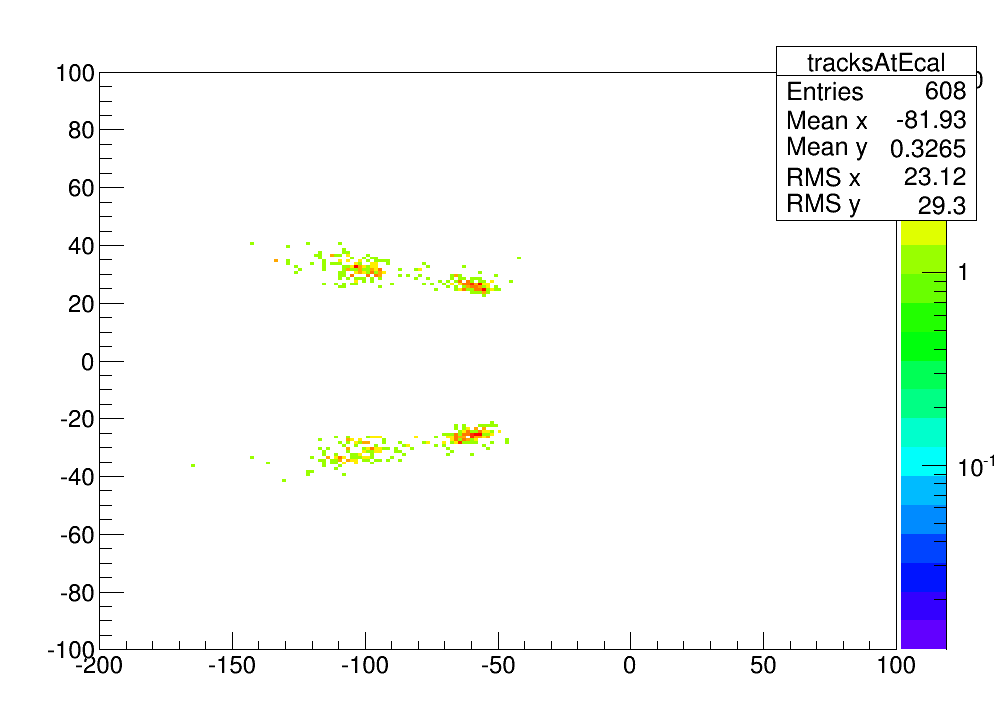

Name: MC_tracksAtEcal.png
Type: image/png
Size: 18758 bytes
Desc: MC_tracksAtEcal.png
URL: <https://mailman.jlab.org/pipermail/hps-analysis/attachments/20160520/54948f18/attachment-0007.png>
-------------- next part --------------
A non-text attachment was scrubbed...

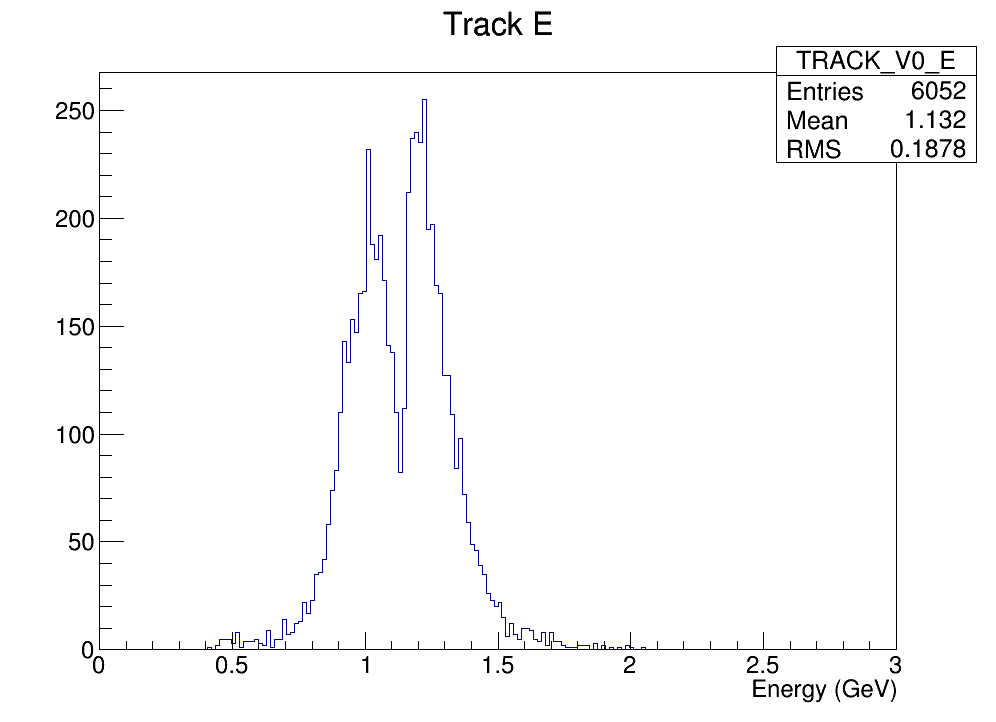

Name: DATA_TRACK_Energy.png
Type: image/png
Size: 15092 bytes
Desc: DATA_TRACK_Energy.png
URL: <https://mailman.jlab.org/pipermail/hps-analysis/attachments/20160520/54948f18/attachment-0008.png>
-------------- next part --------------
A non-text attachment was scrubbed...

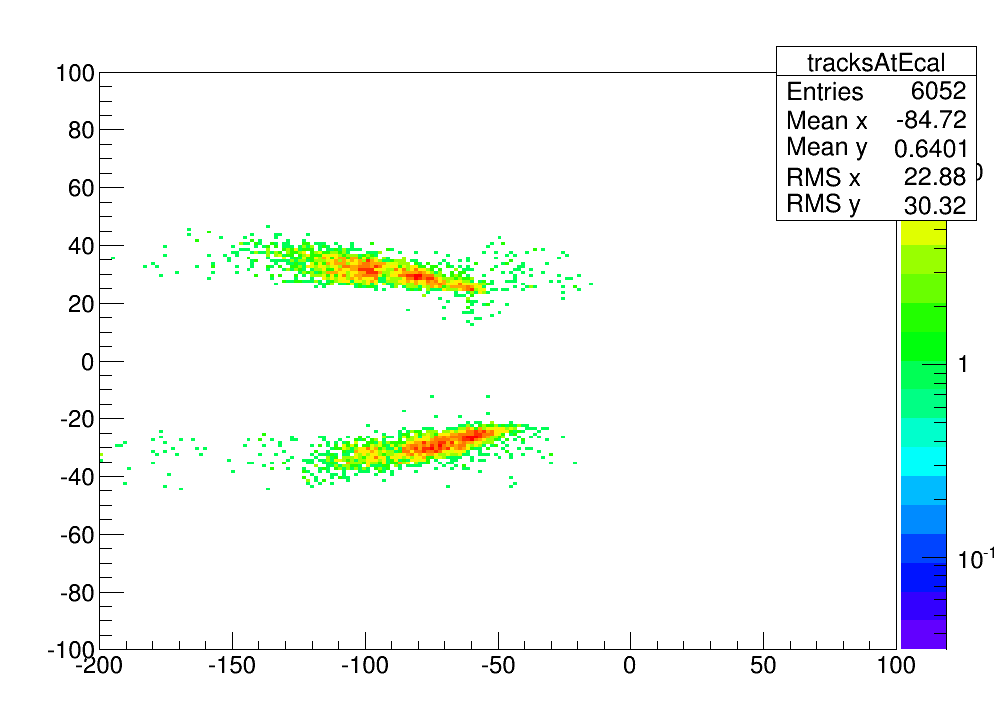

Name: DATA_tracksAtEcal.png
Type: image/png
Size: 21126 bytes
Desc: DATA_tracksAtEcal.png
URL: <https://mailman.jlab.org/pipermail/hps-analysis/attachments/20160520/54948f18/attachment-0009.png>
-------------- next part --------------
A non-text attachment was scrubbed...

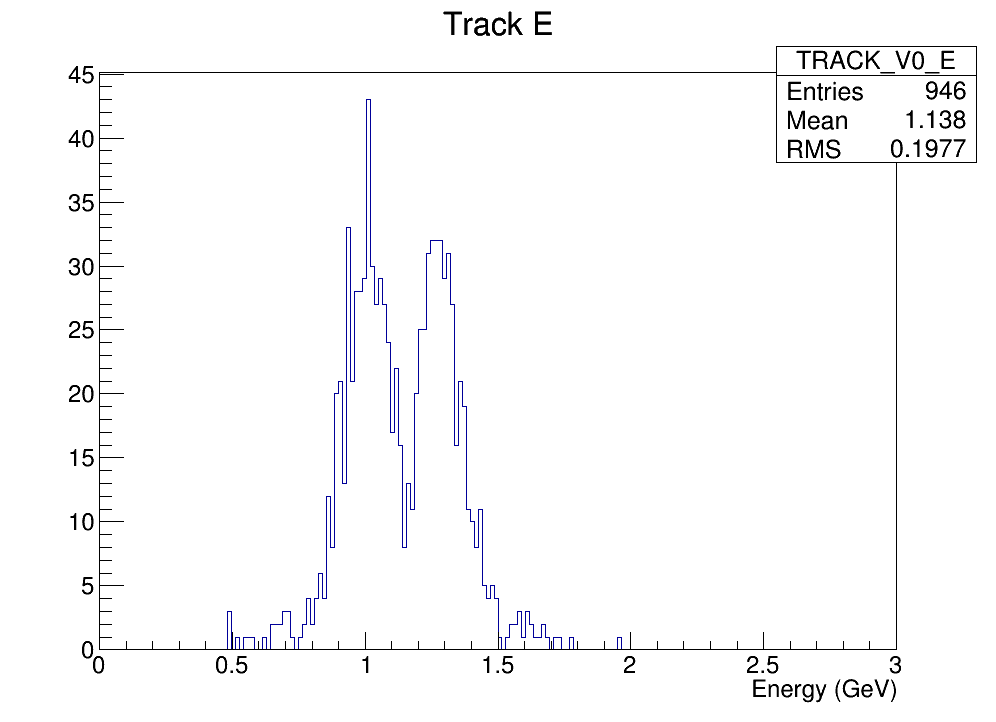

Name: LOOSERMC_TRACK_Energy.png
Type: image/png
Size: 15516 bytes
Desc: LOOSERMC_TRACK_Energy.png
URL: <https://mailman.jlab.org/pipermail/hps-analysis/attachments/20160520/54948f18/attachment-0010.png>
-------------- next part --------------
A non-text attachment was scrubbed...

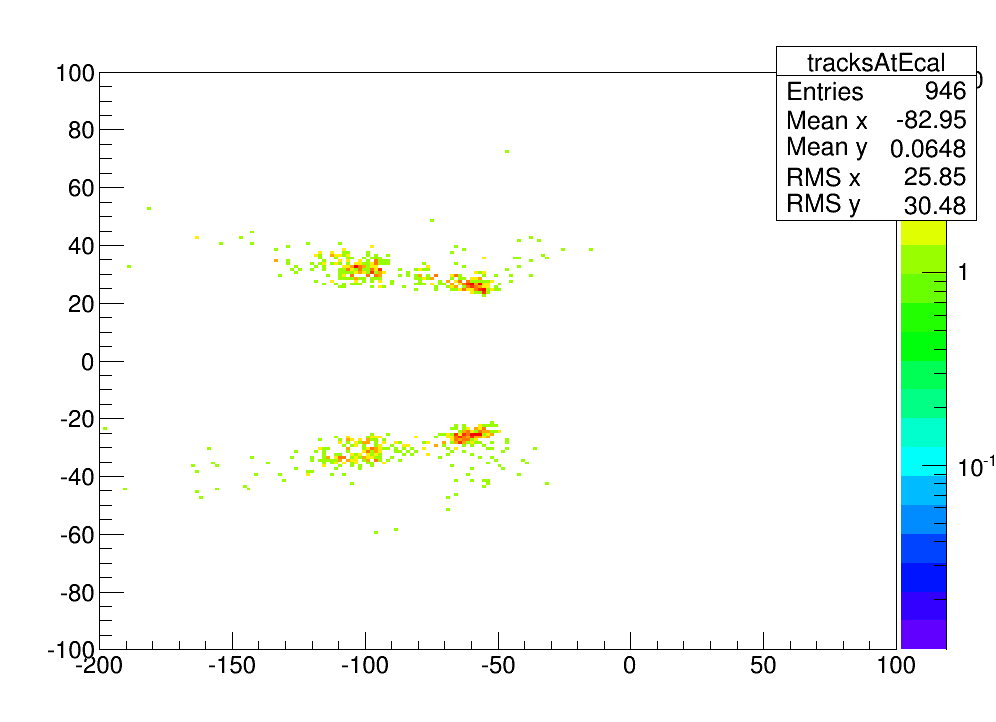

Name: LOOSERMC_tracksAtEcal.png
Type: image/png
Size: 19353 bytes
Desc: LOOSERMC_tracksAtEcal.png
URL: <https://mailman.jlab.org/pipermail/hps-analysis/attachments/20160520/54948f18/attachment-0011.png>
