[Solid_ec] Fwd: hex calorimeter module size

[Paul E. Reimer]

-------- Original Message --------
Subject: 	hex module size
Date: 	Wed, 27 Feb 2013 15:38:41 -0600
From: 	Paul E. Reimer <reimer at anl.gov>
Reply-To: 	reimer at anl.gov
Organization: 	Argonne National Laboratory
To: 	Zhiwen Zhao <zwzhao at jlab.org>, Xiaochao Zheng <xiaochao at jlab.org>



Hello,

Several thoughts on the 6.25/side hex modules.  The modules will be
wrapped in some way to assure light tightness, so should we build the
base modules as 6.25 cm - 0.075 cm wrapping = 6.125 cm/side modules, or
should we wrap on the outside of the 6.25 envelope?  In addition to
this, Vic would like an additional 0.05cm between the modules to allow
for fabrication tolerance in the modules.  Again, this could be added on
to the module size in the layout, or subtracted from the module size in

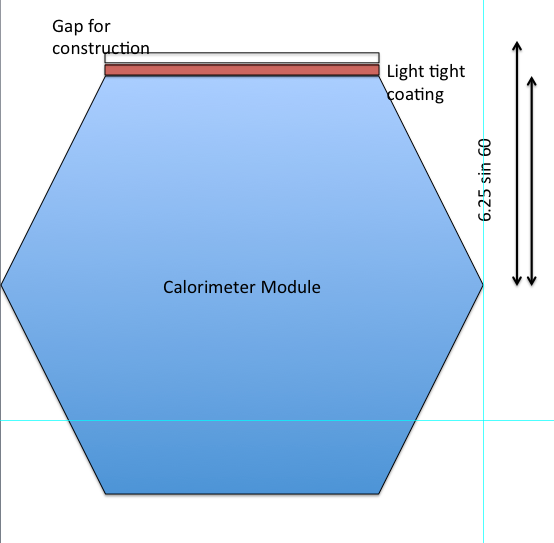

fabrication.  In other words, in the drawing below, which of the two
arrows on the left do we wish to have as 6.25*sin 60?  I have a slight
preference for including the gap and coating within that, or we could
draw a third arrow in between.




Finally, how big of a gap do we need for the light tight coating?

Paul

--
Paul E. Reimer                 +1-630-252-4037 (Argonne Office)
Physics Division Bldg 203      +1-630-252-3903 (Argonne Fax)
9700 S. Cass Ave.              +1-630-840-5709 (Fermilab)
Argonne, IL  60439             +1-630-344-9207 (Cell)
USAreimer at anl.gov
