Dear Colleagues,

There is a new release of *ced*, v 1.006.

This is the download link.
<https://userweb.jlab.org/~heddle/ced/builds/ced.1.006.tar.gz>

In addition to bug fixes (and new bugs), it has:

1) Better display of CND data (see below)

2) Due to the Flatness Chauvinism of some CLAS developers who shall remain
nameless, the 3D views are now off by default. They can be turned on by
either the command line argument *USE3D* or the alternative but equivalent
(and easier to remember) command line argument *TAKETHATGAGIKANDVERONIQUE*.

3D is now turned off by default because while the 3D works splendiferously
on 91% of the computers in the world, on some computers running an
operating system written by odiferous pajama-clad 45 year olds living in
their parents' basement (and which goes by the ridiculous name "linux") the
3D views don't always work . And by "don't always" we sort of mean "almost
never."

To facilitate this, we have provided the bash script ced3d.sh so "bashing"
it, i.e.,

$bash ced3d.sh

Should give you *ced* with the 3D views.

If you launch by double-clicking the jar, the way cool people launch *ced*,
you are stuck with the default of no 3D views.

Now as promised, improved CND data display:

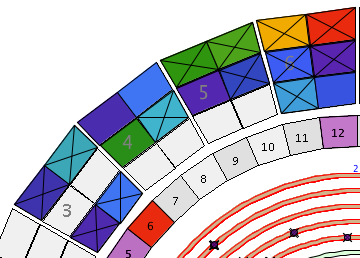

[image: image.png]

The numbers are the sectors The colors are indicative of the adc value. The
cross indicates that there was a tdc. Sometimes, as you see, there is an
adc and no tdc. And sometimes (not shown, but trust me on this) there is a
tdc and no adc.

This is all under the category of bug fix because for CND the previous
versions *ced* was... I actually don't know what the hell it was doing! I
must have implemented the CND display after consuming a bad plate of
linguini. Sorry for the inconvenience. Also--the mouse-over feedback has be
beefed up for CND.

Oh, and CND now works in accumulated mode as well. I'd send a picture but
because this mailing list is configured as if it were for a bbs in 1995,
two pictures almost always cause my posts to go into moderation. I am in
fact nervous about just the one pic.


cheers,
dph
--
