That was the plan, but so much for the best laid plans...

I had to work with Marc to debug DC mixing anyway so figured might as well get the changes implemented to MVT mixing before beam arrives.

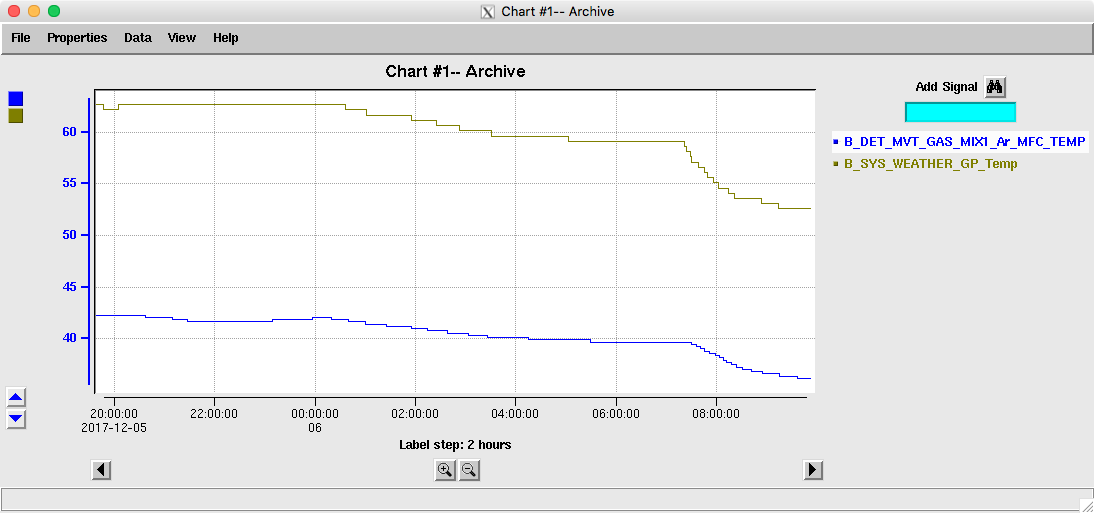

At least from the initial data it looks like MFC temp (deg C) is quite strongly correlated with the outside temperature (deg F).

----- Original Message -----
> From: "Amrit Yegneswaran" <yeg at jlab.org>
> To: "Brian Eng" <beng at jlab.org>
> Cc: dsg-mvt at jlab.org
> Sent: Wednesday, December 6, 2017 9:52:14 AM
> Subject: Re: [Dsg-mvt] [New Logentry] MFC Temperatures

> Oi brian! you are on vacation, right?
> so what's all this....
> No matter what you say, do, or think, or what you don't say, don't do, or don't
> think the universe is evolving as it should.
> enjoy your vacation.
> so, do not do as i do, do as i say.
> you'll get to where i'm in another 30 years.
> don't rush it, my boy.
>
>
>
>
> From: "Brian Eng" <beng at jlab.org>
> To: dsg-mvt at jlab.org
> Sent: Tuesday, December 5, 2017 7:25:01 PM
> Subject: [Dsg-mvt] [New Logentry] MFC Temperatures
>
> MFC Temperatures
>
>
> Lognumber 3500103 . Submitted by beng on Tue, 12/05/2017 - 19:21. Logbooks:
> 	HBMVT
>
>
> The code for the cRIO that handles the MVT mixing has been updated to read the
> internal MFC temperature (in °C).
> This way we can track the effect of the insulation/heater plus any correlations
> with ambient temperature.
>
> The EPICS PVs are as follows:
>
> B_DET_MVT_GAS_MIX1_Ar_MFC_TEMP
> B_DET_MVT_GAS_MIX1_C4H10_MFC_TEMP
> B_DET_MVT_GAS_MIX1_CF4_MFC_TEMP
> B_DET_MVT_GAS_MIX2_Ar_MFC_TEMP
> B_DET_MVT_GAS_MIX2_C4H10_MFC_TEMP
>
> MFC Specifications regarding temperature:
>
> Operating Temperature Range (Ambient) 10°C to 50°C
>
> Temperature Coefficients
> Zero < 0.05% of F.S./°C
> Span < 0.08% of Rdg./°C
>
>
