[Dsg-rich] RICH ERR recommendations

[Tyler Lemon]

Dear Marco,

Regarding your questions, the answers are below in-line:

> On 10/27/2016 10:24 AM, Marco Contalbrigo wrote:
> Dear Tyler,
> one of the RICH ERR recommendations is
>
> The space for compressors and cabling must be clearly identified and
> reserved for RICH use.
>
> Do you clairfy the question about the height of the air cooling
> tank, in particular concerning the clearance for the Hall-B crane ?

Please see George's email. In short, there is no concern with crane clearance.

>
> Have you any picture of the space reserved for tank and compressor ?

Top Deck of Forward Carriage is reserved for air compressors, tank and valve panel. Pictures of location attached.
"Forward Carriage, Top Deck, Beam Right.JPG" is where the air tank and valve panel will be.

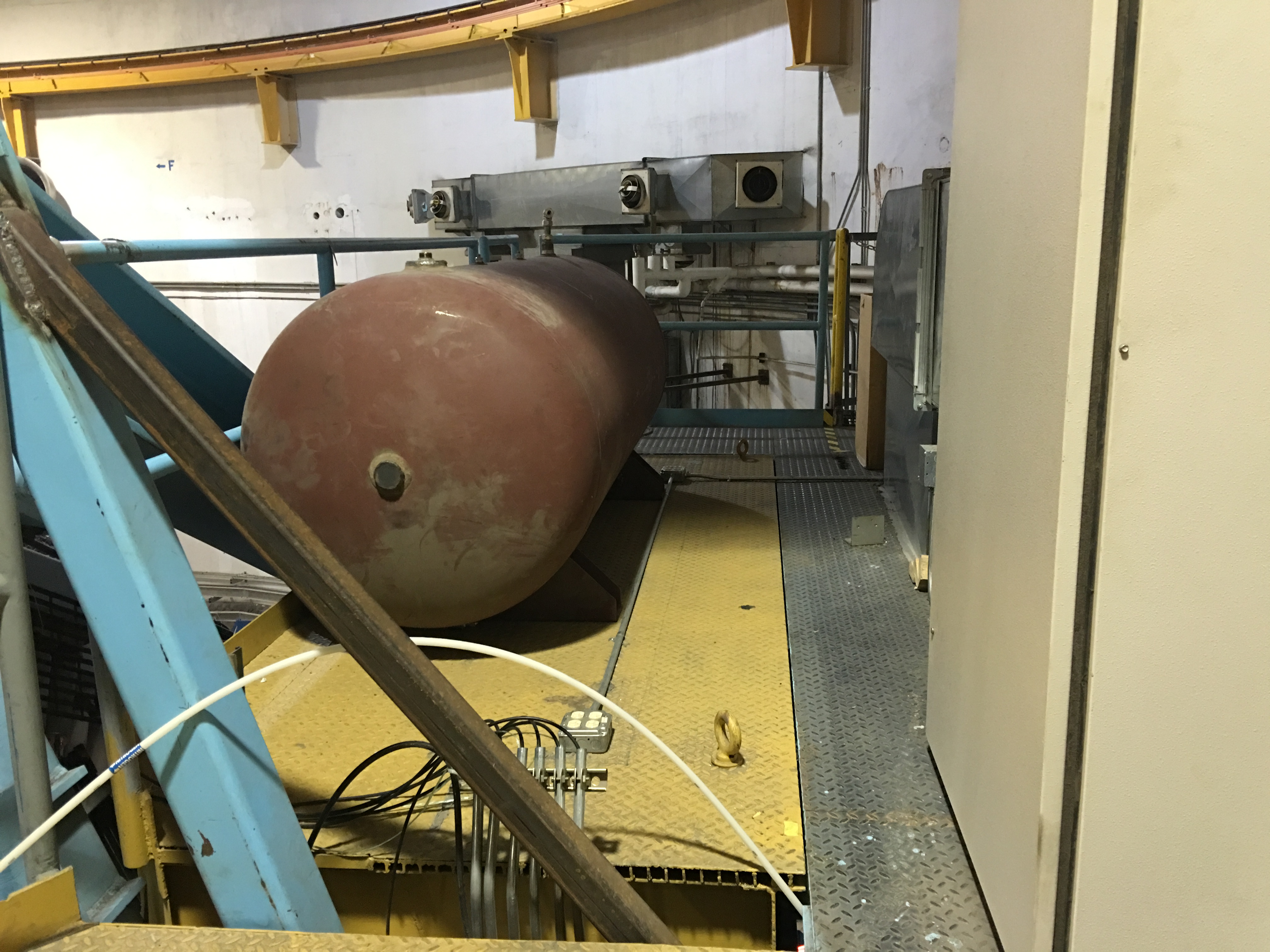

"Forward Carriage, Top Deck, Beam Left.JPG" is where the two compressors will be. The brown tank in the picture will be moved.

>
> Have you any picture of tank+gas panel and air compressor ?
Pictures attached.
"RICH gas tank with Air Cooling Valve Panel on front, Nitrogen Valve Panel on Right Side.JPG" shows the air tank with the valve panels for Air Cooling on front and Nitrogen Valve panel on right
"Nitrogen Valve Panel on side of RICH gas tank.JPG" shows the nitrogen valve panel on the side of the air tank
"RICH air compressor in EEL 124.JPG" is one compressor. The second compressor has already been put at a holding location in Hall B.
>

Best regards,
Tyler
