[Dsg-rich] feedthrough for the sensors

[Tyler Lemon]

Hello Marco,

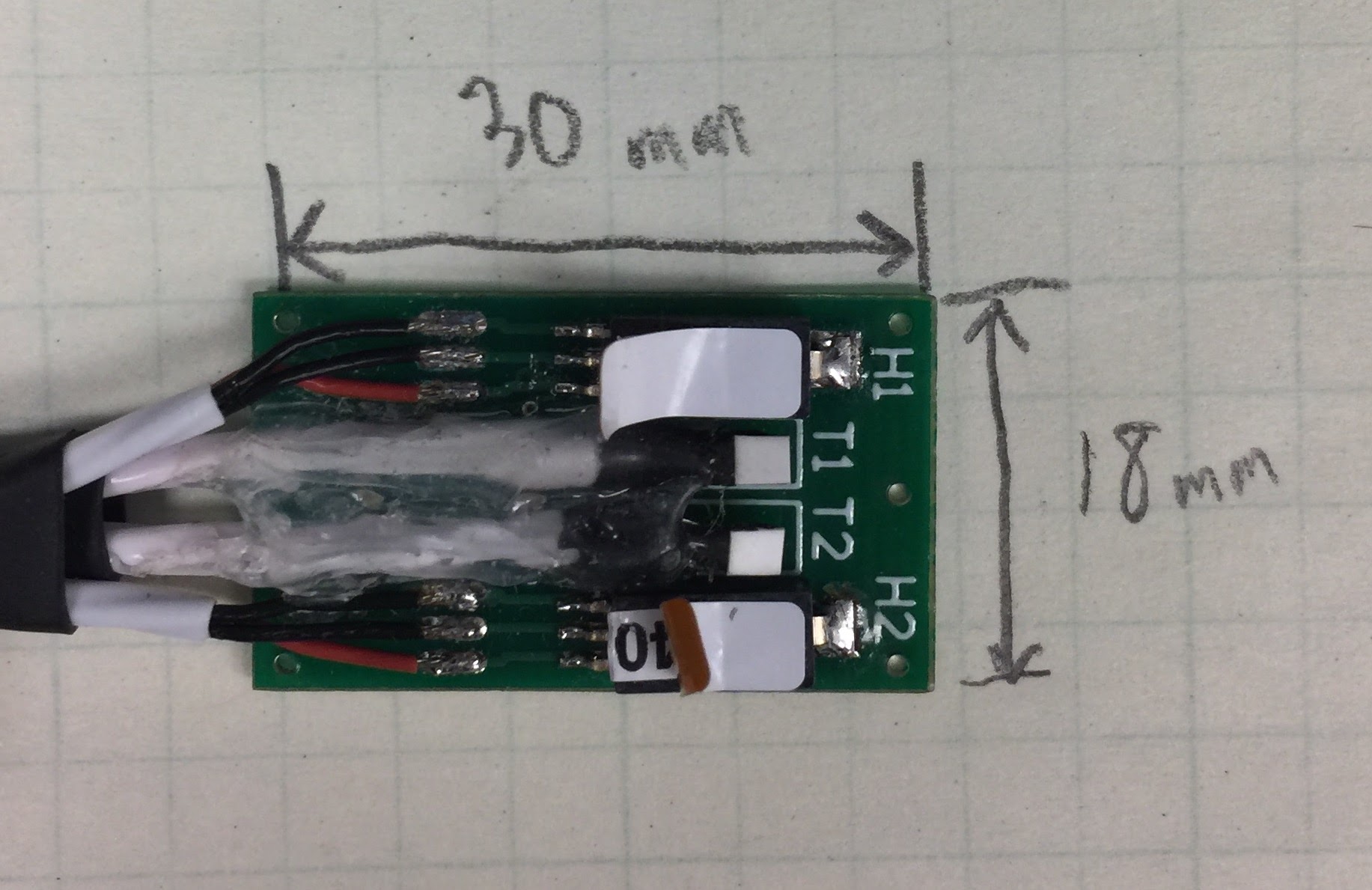

The PCB mounting the temperature and humidity sensors (picture attached) for RICH interlocks is ~30mm x ~18 mm x ~5mm.

The ~5 mm dimension is height of the PCB from the bottom of the board to the top of the humidity sensors.

Best regards,
Tyler


From: "Marco Contalbrigo" <mcontalb at fe.infn.it>
To: "Tyler Lemon" <tlemon at jlab.org>
Sent: Wednesday, October 11, 2017 9:25:29 AM
Subject: Re: [Dsg-rich] feedthrough for the sensors

Hi Tyler,
may you send me the dimensions of the PCB mounting the
temperature and humidity sensors ?
Thanks, Marco.
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://mailman.jlab.org/pipermail/dsg-hallb_rich/attachments/20171012/0de1a8e6/attachment-0002.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: RICH temperature-humidity sensor PCB 2017-10-12.jpg
Type: image/jpeg
Size: 239798 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/dsg-hallb_rich/attachments/20171012/0de1a8e6/attachment-0002.jpg>
