[Dsg-rich] RICH patch panels received from Argonne

[Tyler Lemon]

Hello Sandro,

Attached are side views of both patch panels.

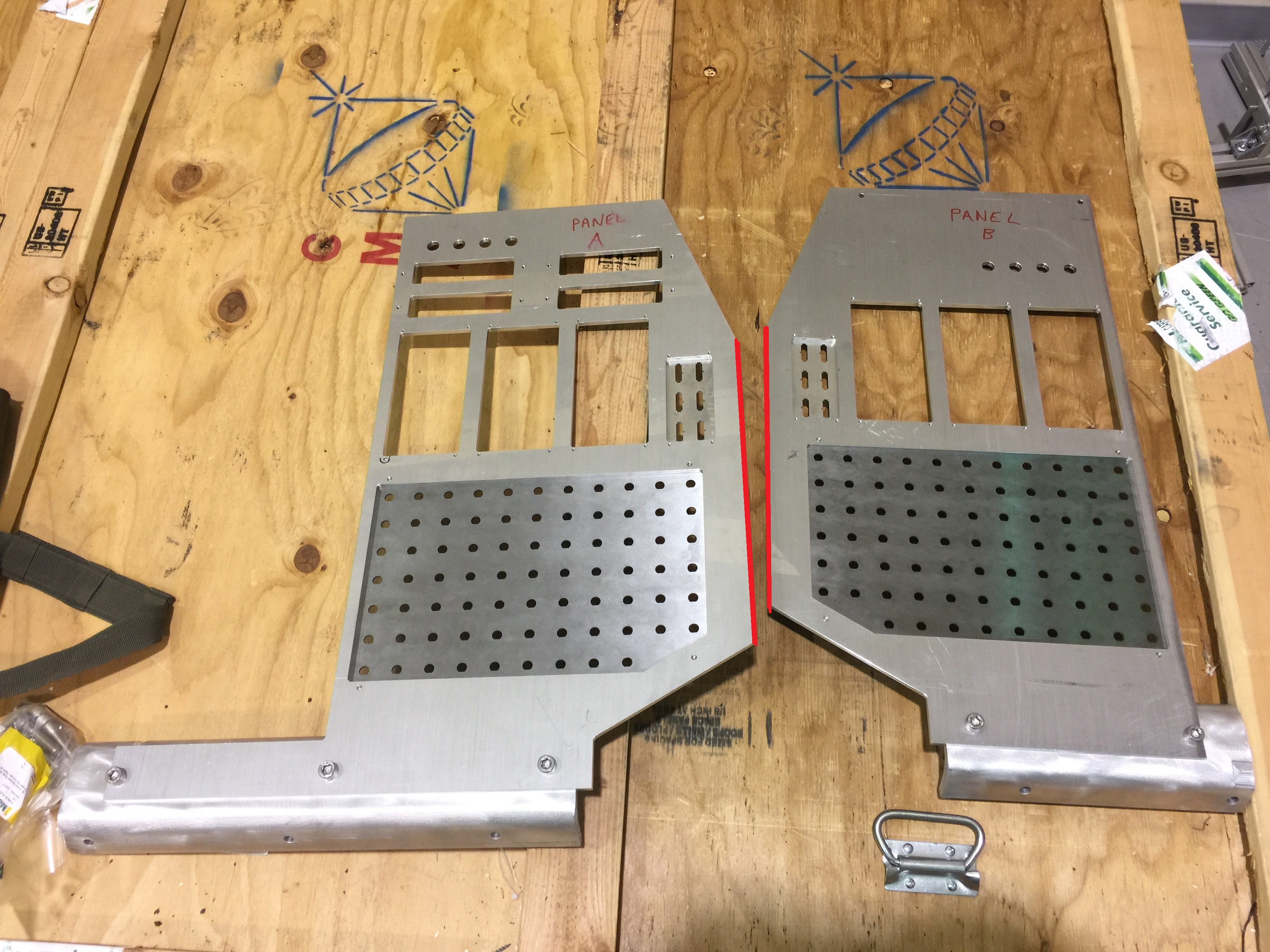

Also attached for reference is the same picture as this morning, but with the edge resting on the floor in the side view photo highlighted in red.

Best regards,
Tyler


From: "Tomassini Sandro" <sandro.tomassini at lnf.infn.it>
To: "Tyler Lemon" <tlemon at jlab.org>
Cc: "dsg-rich" <dsg-rich at jlab.org>, "Kevin Bailey" <kevin_bailey at anl.gov>, "Tom O'Connor" <toconnor at anl.gov>
Sent: Friday, September 8, 2017 3:46:54 PM
Subject: Re: [Dsg-rich] RICH patch panels received from Argonne

Hi Tyler
Can you send a side photo of the patch panel support?
Many thanks
Sandro

Inviato da BlueMail
Il giorno 8 set 2017, alle ore 17:15, Tyler Lemon < tlemon at jlab.org > ha scritto:


Hello,

This morning, we received the two RICH patch panels from Argonne. Attached is a photo of both patch panels.

The panels will be stored in EEL 125. The hardware that was included (ten M10 x 45mm screws) will be placed in the DSG cabinet marked RICH in the EEL hallway.

Best regards,
Tyler


Dsg-rich mailing list
Dsg-rich at jlab.org
https://mailman.jlab.org/mailman/listinfo/dsg-rich




-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://mailman.jlab.org/pipermail/dsg-hallb_rich/attachments/20170908/03e7860d/attachment-0002.html>
-------------- next part --------------
A non-text attachment was scrubbed...

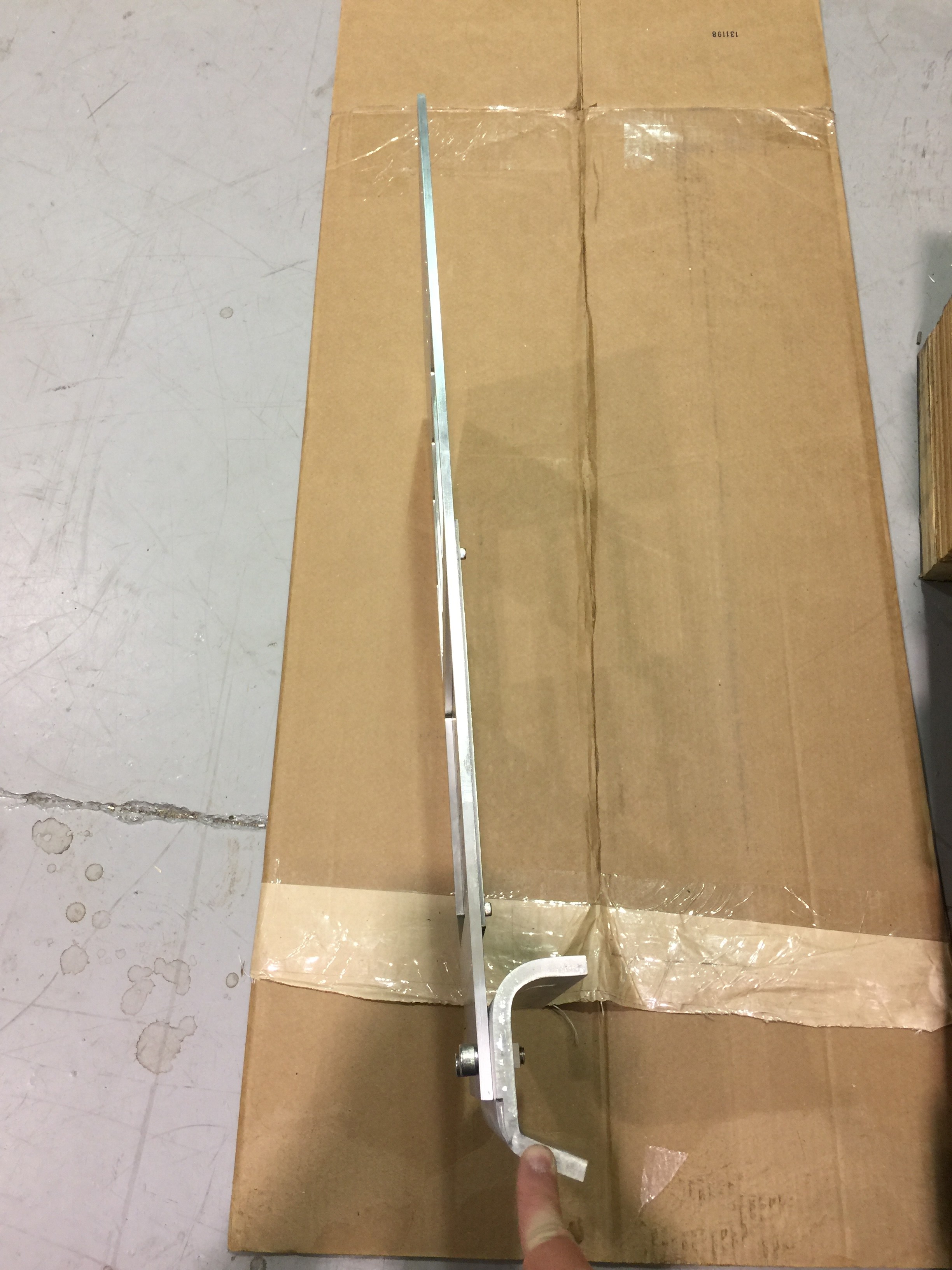

Name: RICH patch panel B side view 2017-09-08.JPG
Type: image/jpeg
Size: 1137425 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/dsg-hallb_rich/attachments/20170908/03e7860d/attachment-0006.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: RICH patch panels 2017-09-08.JPG
Type: image/jpeg
Size: 1902944 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/dsg-hallb_rich/attachments/20170908/03e7860d/attachment-0007.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

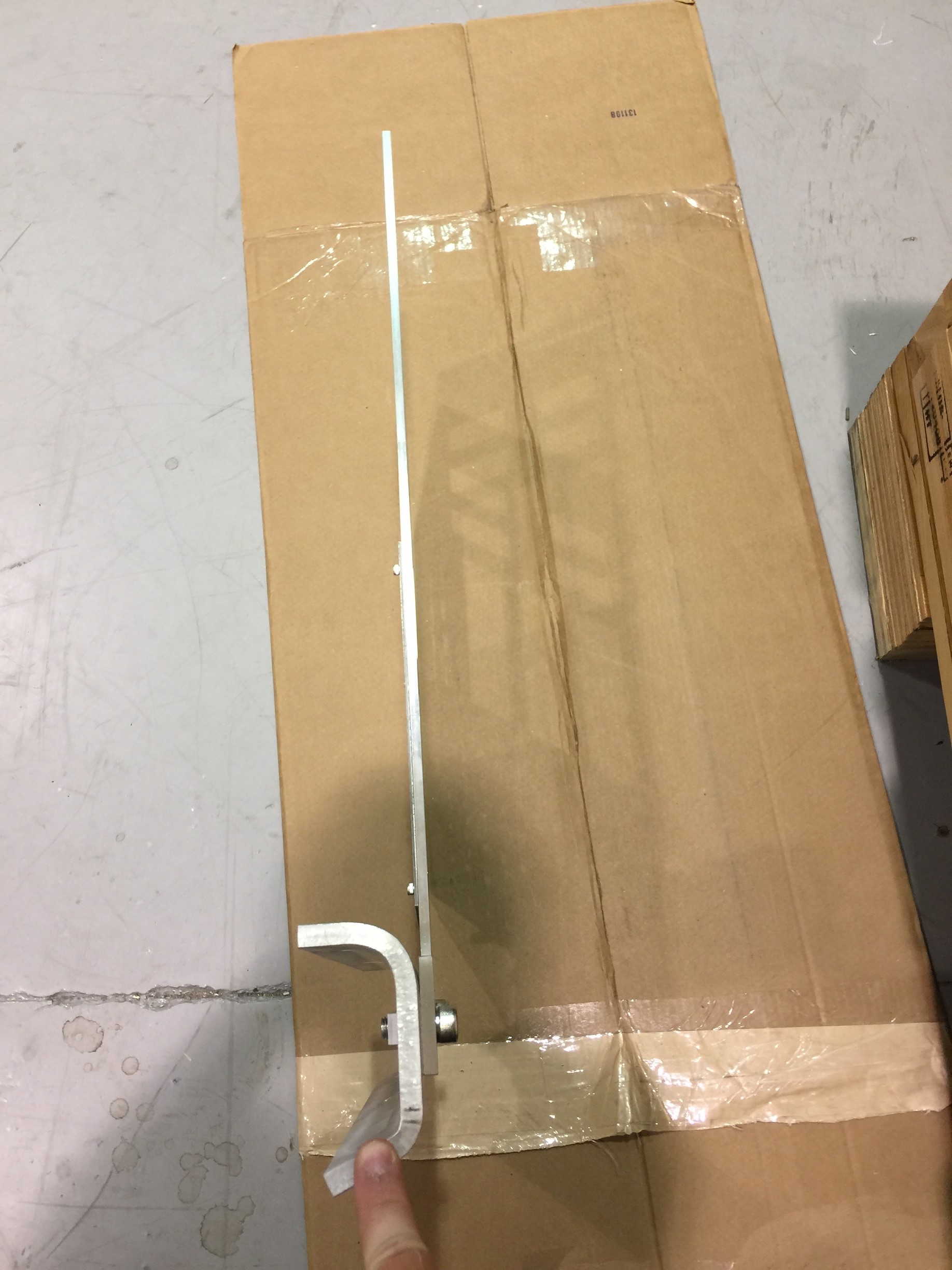

Name: RICH patch panel  A side view 2017-09-08.JPG
Type: image/jpeg
Size: 590911 bytes
Desc: not available
URL: <https://mailman.jlab.org/pipermail/dsg-hallb_rich/attachments/20170908/03e7860d/attachment-0008.jpe>
