[dsg-hallb_svt] Few cable repairs

[Brian Eng]

It looks like those connectors were left plugged in while it was being moved.

Does this mean that Krister and I should start cabling things tomorrow or is that taking place at a different time? It wasn't clear to me from the schedule presented when that would actually take place.

Also in the table it listed PPE as required; is there some sort of (T)OSP we should be following that documents that?

________________________________
From: Rafayel Paremuzyan <rafopar at jlab.org>
Sent: Thursday, May 20, 2021 7:29 AM
To: Brian Eng <beng at jlab.org>; Yuri Gotra <gotra at jlab.org>
Subject: Few cable repairs

Hello Brian,

yesterday we disconnected all SVT cables, as today it is supposed to be moved to the hall.
We noticed few wires that need some repair.

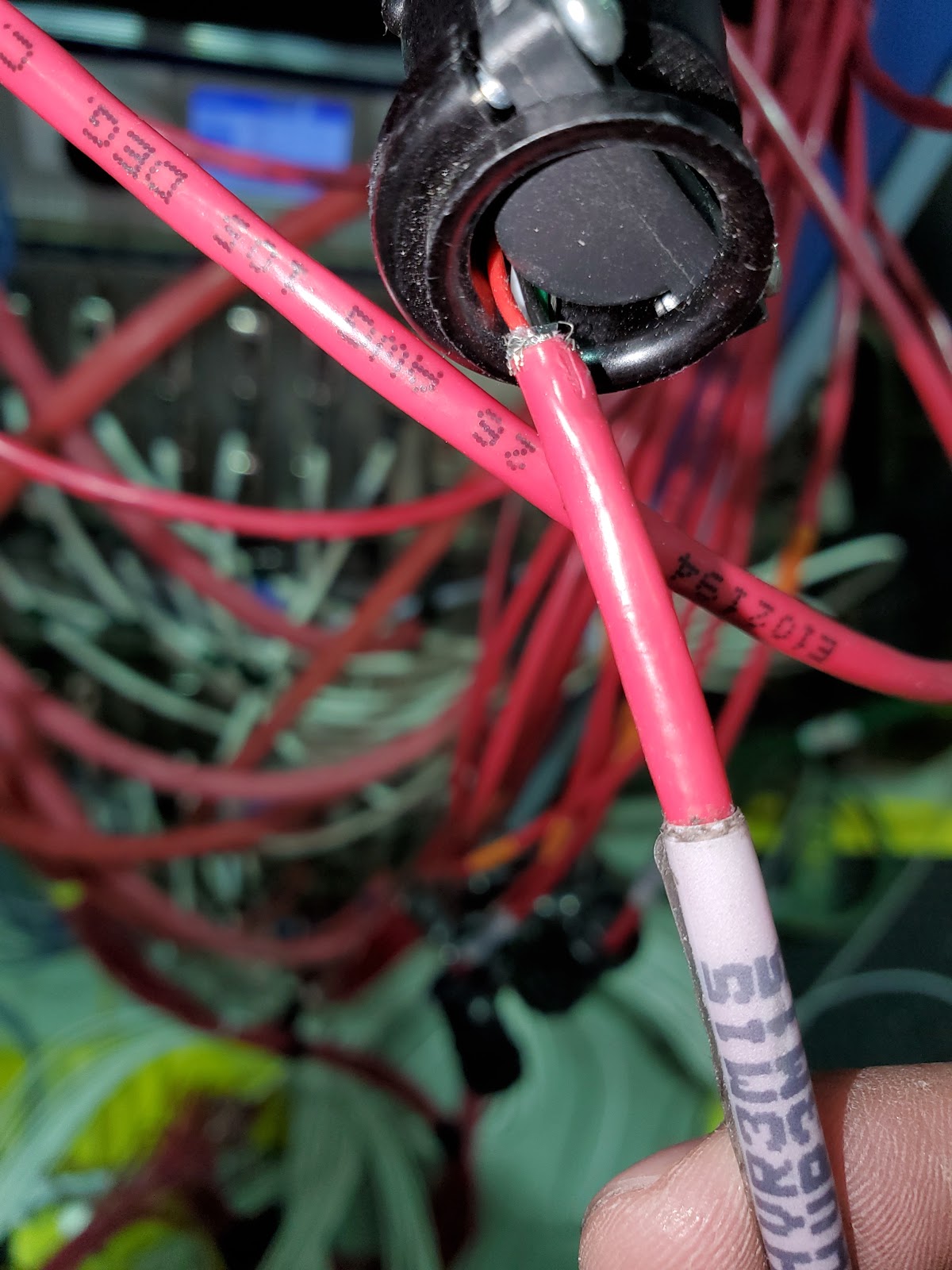

* one HV cable is not connected well to the connector "HVR3M15", as you can see in the Fig1.

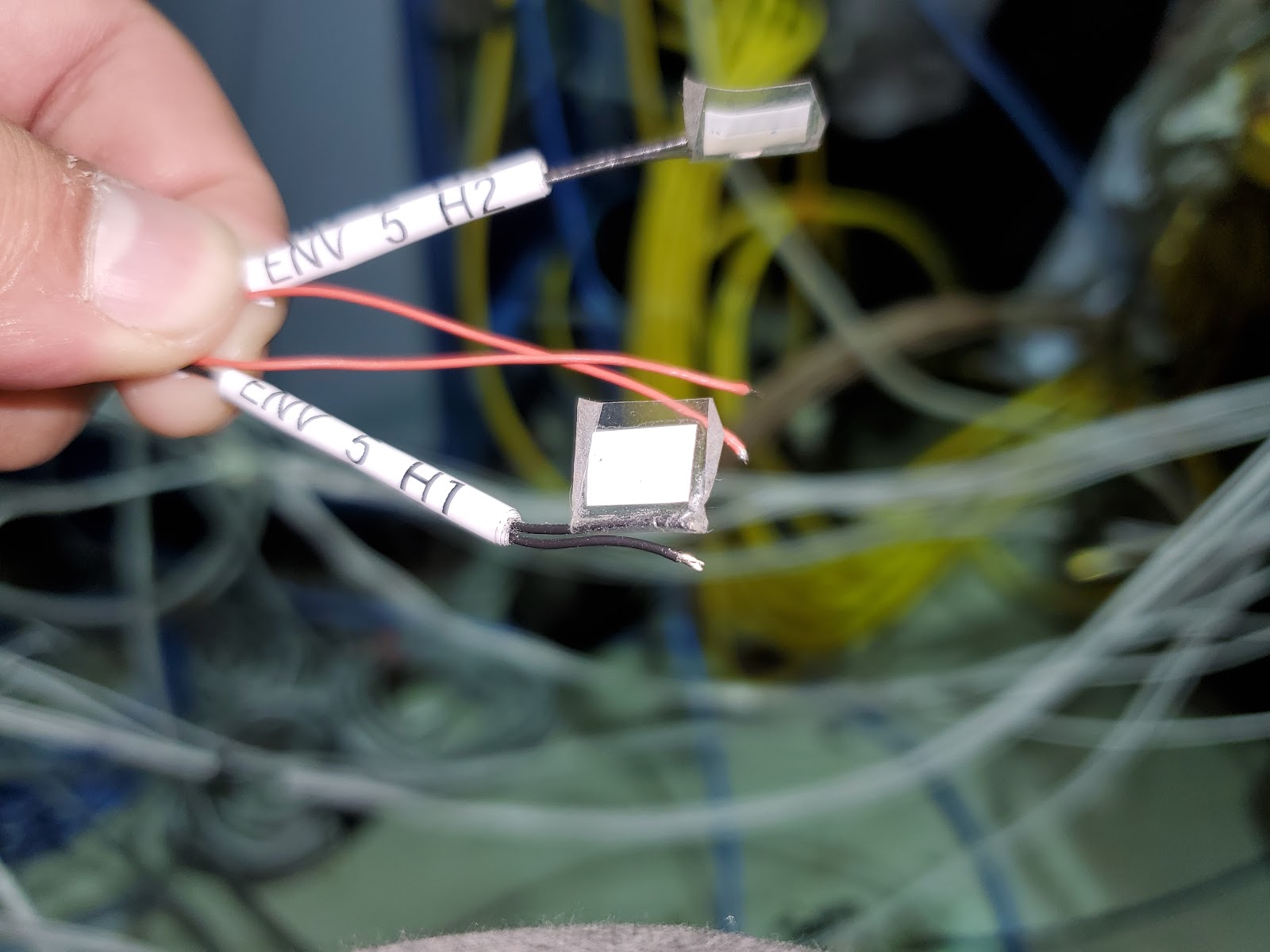

* In sensors 5H1 and 5H2 wires are disconnected from connectors, as you can see in the Fig.2

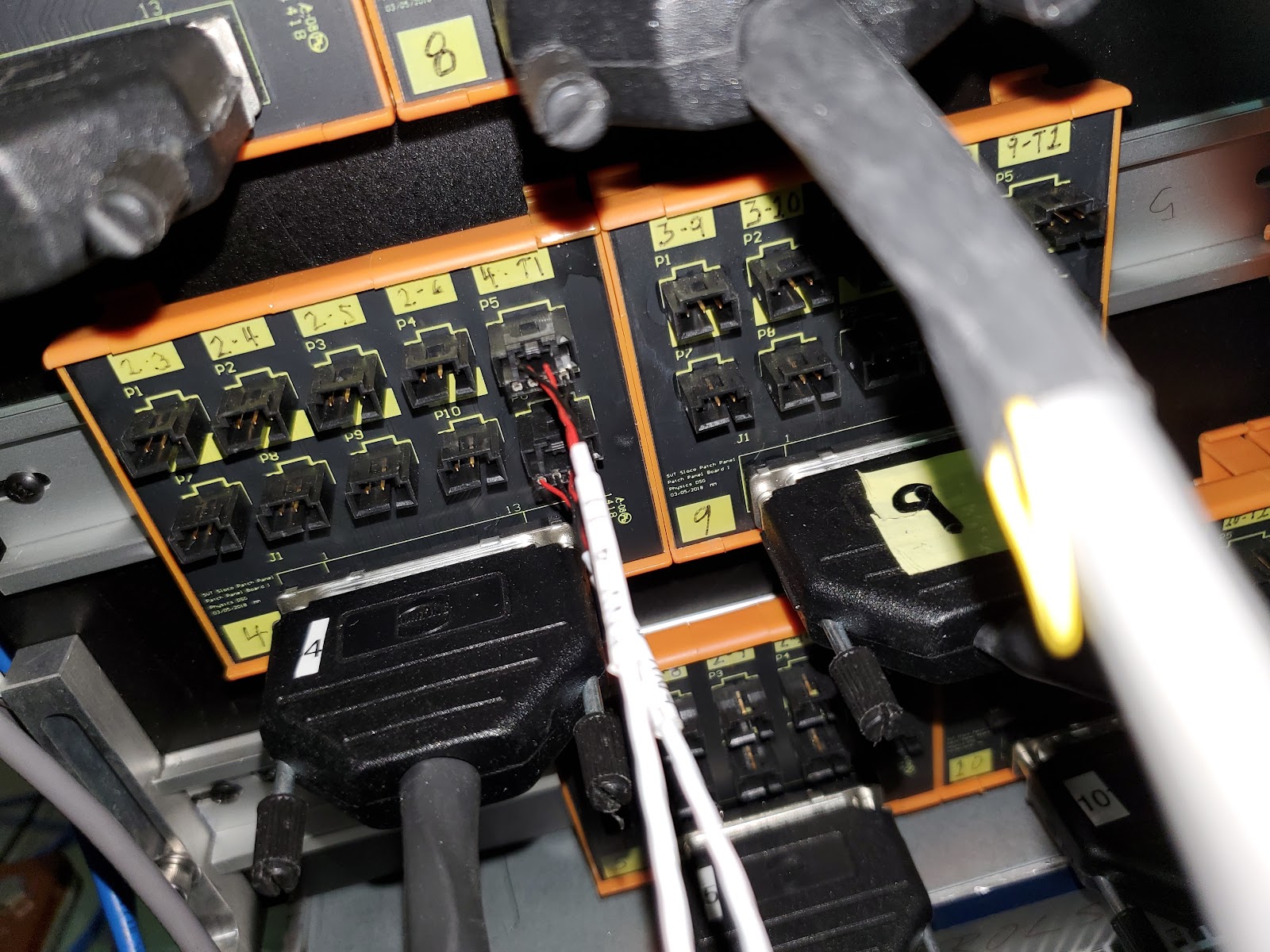

* In the sensor 4T1, three wires are disconnected from the connector, see Fig. 3 (though it is not very well depicted in the picture)

I wanted to ask you, if you could you help repairing those connectors?
As soon the whole CVT will be moved to the hall, and tomorrow it already should be installed in the space frame,
this probably should be done in the hall.

Rafo


Fig.1
[https://lh4.googleusercontent.com/2ERFWpFzCHvJ97vjPUbp-yTXSKjZahc3_q1f9xpYuyPCE9Sya9oeNlOgnou9Xgon8uri56d60QoKEAZwHbR5SPujskKb--4DvD1OTo37fvJPdpJ197eABMtVk341ETPTtXAivKHzOt0]




Fig.2

[https://lh5.googleusercontent.com/H2sxatMVPg24iTnj342ZifpMseDuhDNWTwSSMYx7LJzWUbPzH2Lq-yxymN8aZx86vawRn2faCKbodlR87BsmN4A31ihRp3HVYz-YoqzOS2pkPaet6u4BJUSdolrGtfkHcELFeVOKEvk]


Fig. 3

[https://lh5.googleusercontent.com/nco8Y6hq-6SXorytbS-greXBErlDclvCNYgb487Y8HmePgJiBACxcR256YGCtvpFUJNyU9ysmIEwwytBfIuFxIUg0eJLEbhsin2rx4ijhc2QYJ9wbXa2Us-8YeGVZbwvNFbcyVCXz8g]
