[Dsg-hallc_nps] Fw: Samtec PMSD

[Carlos Munoz Camacho]

Dear Brad, Marc,

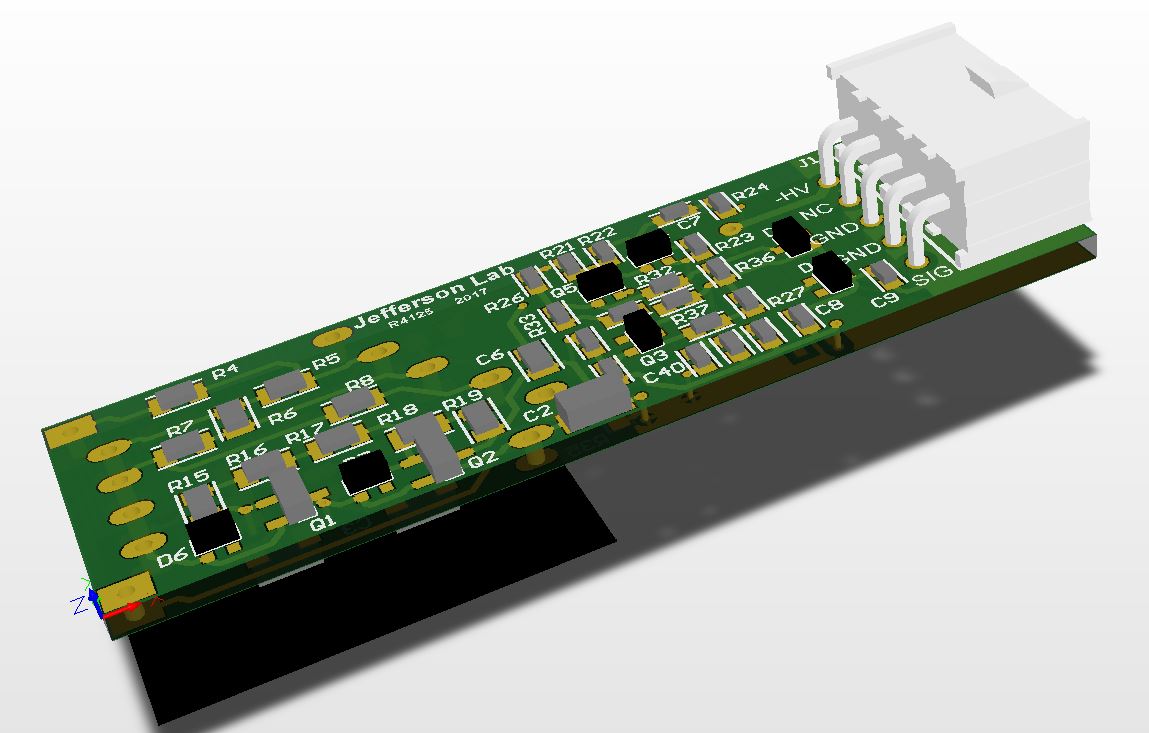

   The choice of that connector was driven by the one which is mounted on
the voltage dividers, which Fernando and Chris designed (a few email
exchanges below and a picture attached). Thi, our engineer who looked into
this, is currently on vacation. But I'll check with him and get back to you
early August. In the meantime, you could check with Fernando/Chris.

Best,
Carlos

> -----Original Message-----
> From: Chris Stanislav [mailto:stanisla at jlab.org]
> Sent: Wednesday, February 28, 2018 5:22 AM
> To: Lydia Arriaga <Lydia at aapcb.com>
> Cc: Fernando <barbosa at jlab.org>; Julie Roche <rochej at ohio.edu>
> Subject: Re: AAPCB QuoteB74785 / B71649 COM CAL
>
> Lydia
>     I forgot to add that, it is Samtec Part # IPL1-105-01-L-S-RA-K. Let
me if you need anything else.
>    Thanks
>    Chris
>
> On 2/27/2018 7:19 PM, Lydia Arriaga wrote:
>> Hi Chris & Julie,
>>
>> Is there any chance you know what part you'll want to use for J1 the
part you are adding?
>>
>>
>> Learn about Advanced Assembly
>>
>> Lydia Arriaga
>> Direct Line: 303-565-1980
>> (800)838-5650 xt:210
>> Email: lydia at aapcb.com
>>
>> Colorado PCB Assembly | Advanced Assembly
>>
>> -----Original Message-----
>> From: Chris Stanislav [mailto:stanisla at jlab.org]
>> Sent: Monday, February 26, 2018 8:22 AM
>> To: Lydia Arriaga <Lydia at aapcb.com>
>> Cc: Fernando <barbosa at jlab.org>; Julie Roche <rochej at ohio.edu>
>> Subject: AAPCB Quote B71649 COM CAL
>>
>> Lydia
>>      Attached is a file with the updated Gerber files for the change to
the PCB for Julie. The only thing that has changed was a (5) pin connector
has replaced the (2) individual cable connectors. We would like to get say
(5) or so pieces for a first article so we can test before you run the
rest. Let me know if you need anything else.
>>     Thanks
>>     Chris

On Wed, Jul 22, 2020 at 8:24 PM Brad Sawatzky <brads at jlab.org> wrote:

> No, this connector was selected by French group.  My understanding is
> that these PMTs are (relatively) low voltage, but I think they are still
> planning to run around 1000--1100V.
>
> I'm CC'ing Carlos to see if he has more information on the SAMTEC
> connectors and/or can confirm the part numbers (on slide 10).
>
> -- Brad
>
> On Wed, 22 Jul 2020, Marc Mcmullen wrote:
>
> >
> ----------------------------------------------------------------------------
> >
>
> > From: Marc Mcmullen
> > Sent: Wednesday, July 22, 2020 2:01 PM
> > To: Dsg-hallc_nps <dsg-hallc_nps-bounces at jlab.org>; Brad Sawatzky
> > <brads at jlab.org>
> > Subject: Samtec PMSD
> >
> > Hi Brad,
> > We are reviewing the NPS documents you sent. Are you aware of the voltage
> > rating of this connector? The data sheet rates it for 600V max.
> > Regards,
> > Marc
>
> --
> Brad Sawatzky, PhD <brads at jlab.org>  -<>-  Jefferson Lab / Hall C / C111
> Ph: 757-269-5947  -<>-  Fax: 757-269-5235  -<>- Pager: brads-page at jlab.org
> The most exciting phrase to hear in science, the one that heralds new
>   discoveries, is not "Eureka!" but "That's funny..."   -- Isaac Asimov
>
