[Pansophy] L2HE-CMA-CM-SHIP-R1 Traveler References questions - Need response soon, We can help!

[Valerie Bookwalter]

John,

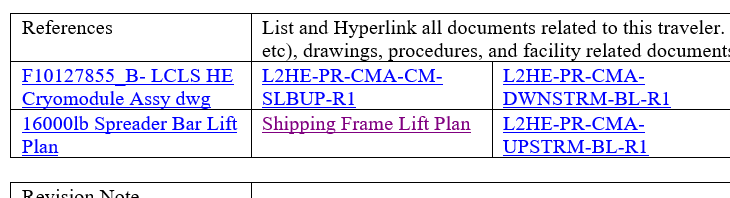

Yep, I need to ask about the linked references.


  1.  The F10127855 link is good!
  2.  The 16000lb Lift Plan is located in L2PRD -> Travelers Included Files -> CMA Phase 2 Files; Not in L2HE; Also, expired 12/04/2017. Is there a new version?
  3.  The L2HE-PR-CMA-CM-SLBUP-R1 link is good!
  4.  The Shipping Frame Lift Plan links to a L2PRD directory (picture below); Not in L2HE; * See notes below
  5.  The 2 L2HE-PRs links are good! Thank You!
[cid:image001.png at 01DA64AC.B62C25B0]

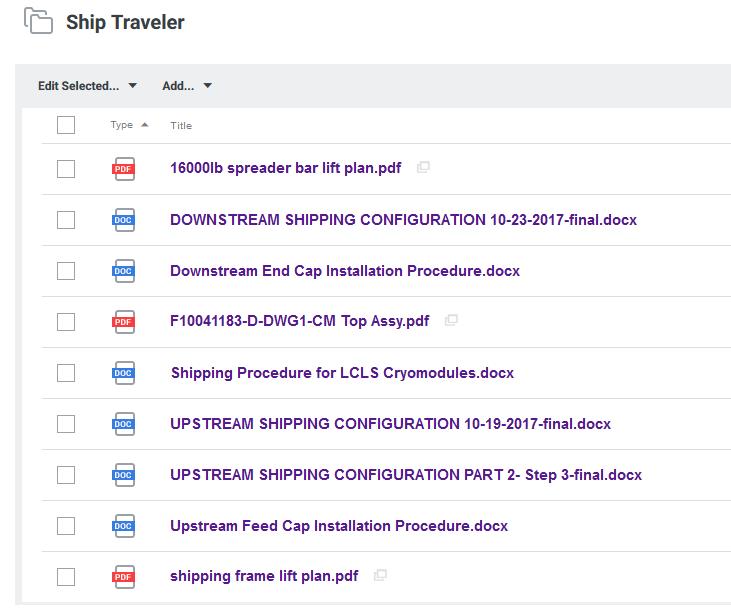

The "Shipping Frame Lift Plan" links to a L2PRD directory which is in Closed Projects
 [Contains]   02 - Closed<https://jlabdoc.jlab.org/docushare/dsweb/View/Collection-16192>  [Contains]   1.17 LCLS-II (L2P) - Joe Preble<https://jlabdoc.jlab.org/docushare/dsweb/View/Collection-21597>  [Contains]   1.17.04.006.007 LCLS- II Project - Cryomodule Prod...<https://jlabdoc.jlab.org/docushare/dsweb/View/Collection-20907>  [Contains]   07 - Process Documents/Travelers (L2CP01)<https://jlabdoc.jlab.org/docushare/dsweb/View/Collection-20921>  [Contains]   Travelers Included Files - (L2PRD)<https://jlabdoc.jlab.org/docushare/dsweb/View/Collection-20924>  [Contains]   Ship Traveler<https://jlabdoc.jlab.org/docushare/dsweb/View/Collection-38712> Listing


  1.  This folder is in L2PRD, not good - would need to be copied to L2HE BUT prefer we make documents official.
  2.  The F10041183-D drawing is not in DCG (foreign drawing?) - Can this be uploaded to DCG? If not, then we just need a copy in L2HE marked as uncontrolled
  3.  The 2 lift plans expired in 2017 - are there new ones? This duplicates the Spreader Bar Lift Plan.
  4.  The 6 procedure documents - how many can be replaced with the new procedures out for approvals? Do We need to dump these into procedure templates for you to process quickly?

[image]
Please let me know how we can help you get this resolved quickly?

Valerie Bookwalter
Jefferson Lab, SRF Department
Pansophy Team
1-757-269-5802 (OFFICE - currently working offsite)
